The LA23 is a small and strong push/pull actuator (up to 2500 N). The LA23 can be
used in various applications where size is important.
Some of the benefits the LA23 offers you are:
• Compact design
• High lifting force
• Exchangeable cables
Usage:
• Duty cycle: 10 %, 2 minutes continuous use followed by 18 minutes not in use
• Usage temperature: +5 °C - +40 °C normal operating temp.
-30 °C - +50 °C according to test conditions: ISO 7176-9
• Storage temperature: - 45 °C to + 70 °C (according to ISO 7176-9)
• Compatibility: CB20, CB16, CB6S, CBJ 1/2, CBJC, CBJH, CBD4, CBD5 & CBD6*, CA30, CA40, CO61, and SMPS-T160
(for combination possibilities, please see the User Manual for SMPS-T160 on our website)
* SLS must be ignored Up + Down in the CBD4, CBD5 or CBD6 when configured for LA23
* Only the 3, 6 & 12 mm versions can be configured in the CBD4, CBD5 or CBD6
* Only tested for single use.
• Approvals: IEC60601-1, ANSI/AAMI ES60601-1, CAN/CSA 22.2 No 60601-01
LA23IC is not approved according to the above.
LA23 in combination with CBD4, 5 & 6 has no approvals.
• Flammability rating: Enclosure UL94-V0
Warnings
• All IC (Integrated Controls) versions are not compliant for Medical use.
• Do not sideload the actuator.
• Only use the actuator within specified working limits.
• Always use steel backfixture for LA23 over 1500N and for pull loads.
• The B and G 24V motors must only be used with their respective control box types.
- Motor type A: 12V motor must be used with CBD4, CBD5 and CBD6
- Motor type B: 24V motor which must be used with JUMBO; CBJ1/2, CBJC and CBJH or generally in applications which are mainly driven with battery
- Motor type G: 24V motor which must be used with OpenBus
TM
control boxes; CB20, CB16, CB6S, CA30, CA40, CO61
• If an actuator with stroke length below 50 mm is used, and the electrical end-stop switch fails, please be aware that the distance before reaching
the mechanical end-stop will be prolonged. The extra distance will be 50 mm minus actual stroke length. I.e. If an actuator with 20 mm stroke
length is used and the switch fails, it will travel an additional 30 mm before reaching the mechanical end-stop. Please make sure that the
application can withstand this in a safe way.

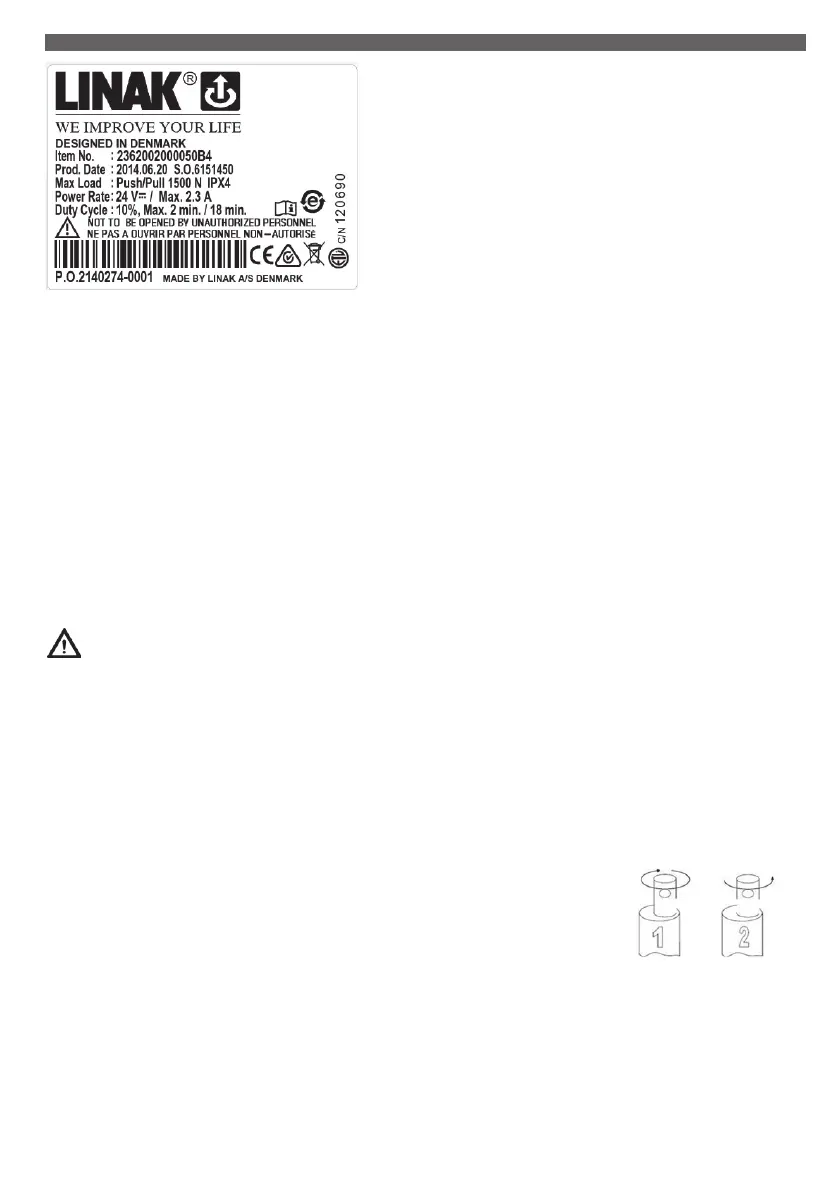

• Instruction concerning the turning of the piston rod eye. When mounting and taking into use, it is not
permitted to make excessive turns of the piston rod eye. In cases where the eye is not positioned correctly,
it is permitted to first screw the eye down to its bottom position, at a maximum torque of 2 Nm (1), and
thereafter a maximum half turn outwards again (2).
• When mounting the LA23 in the application ensure that the bolts can withstand the wear and that
they are secured safely.
