Page 139 of 192

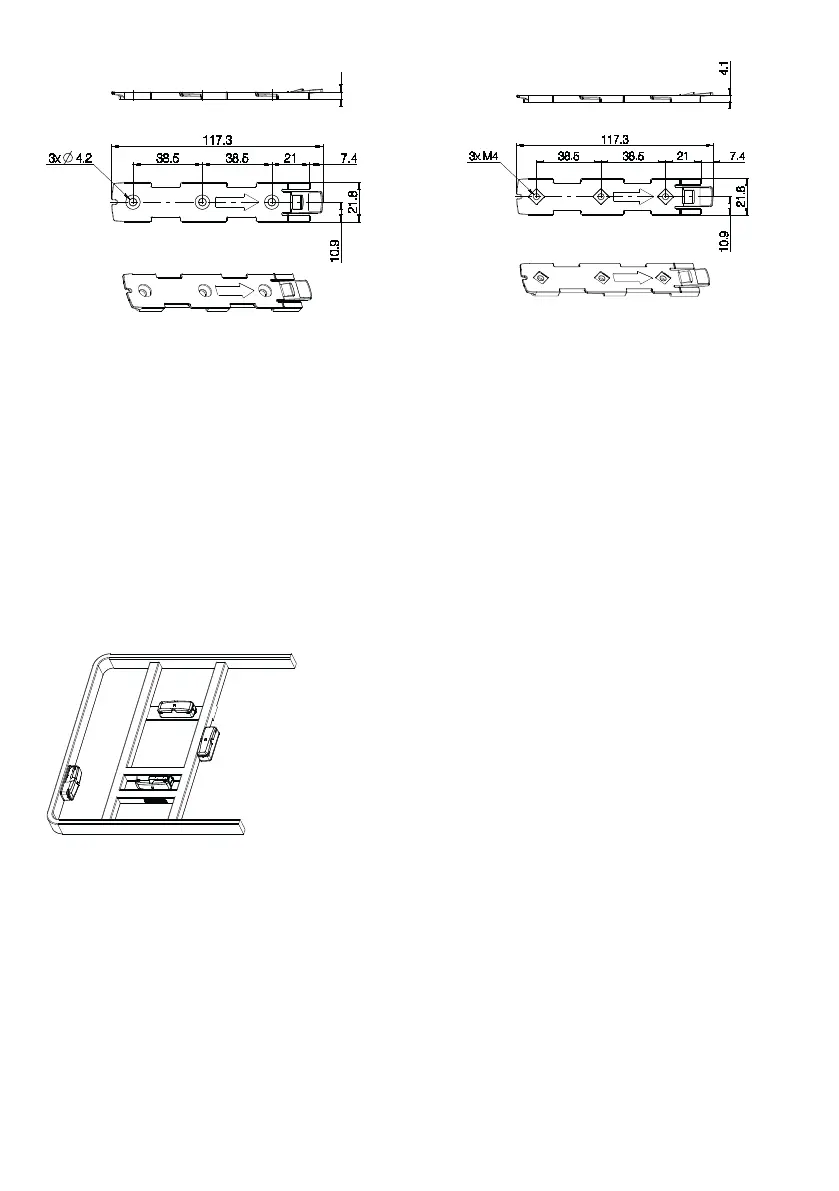

Mounting bracket (frame flat) - article No. 1015W1001:
Drawing No.: 1015W4001
Mounting bracket (frame flat) w/M4 nuts - article No. 1015W9009:
Drawing No.: 1015W1009
It is recommended that the PJ2 is mounted in a position that allows water to escape.
Recommended torque: 0.6 Nm +/- 0.1
The bracket can be mounted to the bed frame or any other application by following one of the following mounting procedures:
• M5 machine screw with flat washer to be fixed through bracket with nut on the rear side
• Self-tapping screw to be placed through bracket and onto the frame
Mounted on frame
Drawing No.: 1038W4003
