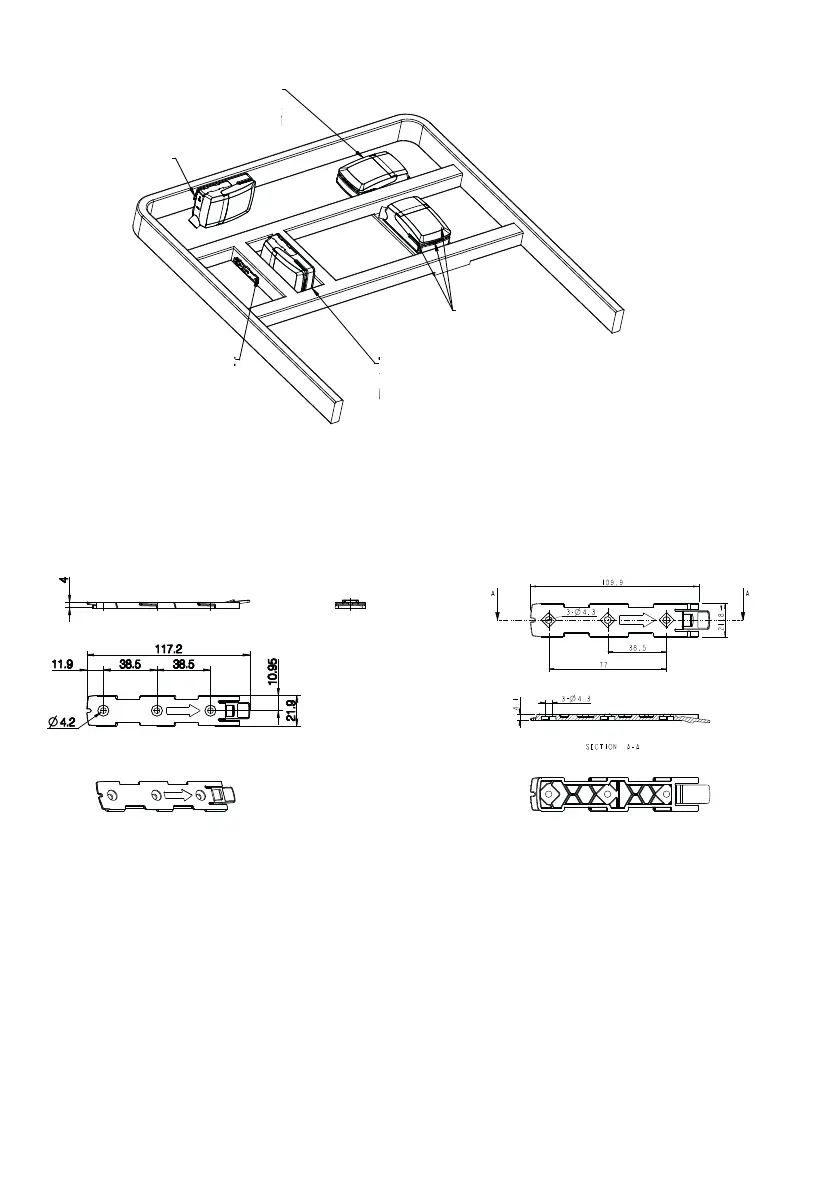

Mounted on frame:
Mounting bracket (frame flat) -
Article No. 1015W1001:
Drawing No.: 1013W4008
Service lid
Integrated hinge
Removable if needed
Very small built-in dimension:
Height: Min. 90 mm (lid can be removed)
Length: + 20 mm (locking system)
Easy-mount bracket
Release hook
3-way cable exit
Drawing No.: 1015W4001
Mounting bracket (frame flat) w/M4 nuts -
Article No. 1015W9009:
It is recommended to mount the QLCI2 in a position that allows
water to escape.
Recommended torque: 0.6 Nm +/-0.1
The bracket can be mounted to the bed frame or any other application
by means of one of the following mounting procedures:
1) M6 nut to be placed in bracket and fixed with M6 bolt
from the rear side.
2) M5 machine screw with flat washer to be fixed through
bracket with nut on the rear side.
3) Self-tapping screw to be placed through bracket and onto
the frame.
Drawing No.: 1015W1009
