Warnings
• BL1 is heavy (9.8 kg) To avoid personal injury, DO NOT DROP !
• Do not adjust anything during movement, can cause personal injury !
• LINAK recommend using a safety nut in medical applications !
• A broken chain causes a drop of half the length of actual stroke. Therefore do not overload !
• The BL1 is designed for use in push applications, dynamic “Pull forces” can result in damage to the column and cause collapse of the application.
• Do not loosen any screws on the BL1, this can cause collapse of the column !
• LINAK recommends making regular measurement of Class 1 protective ground conductivity in the application to avoid a disconnected grounding
cable. Worn out or defect parts must be replaced.
Important:
The motor must always be short-circuited to obtain self-locking in accordance with the rated label value.
Recommendations
• Please follow the important BL1 mounting guidelines.
• Max. storage temperatures: +50 °C.
• BL1 is for use in push applications, cable outlet from smallest profile (top) or biggest profile (bottom). See top and bottom plate dimensions.
• When washing according to IPX6 parameters, it is not allowed to splash water directly onto the plastic frames between the profiles.
Direct splashing is only permitted on the aluminium profiles. Alternatively, BL1 can be mounted upside down with the largest profile at the top.
In this configuration, no IP rating applies.

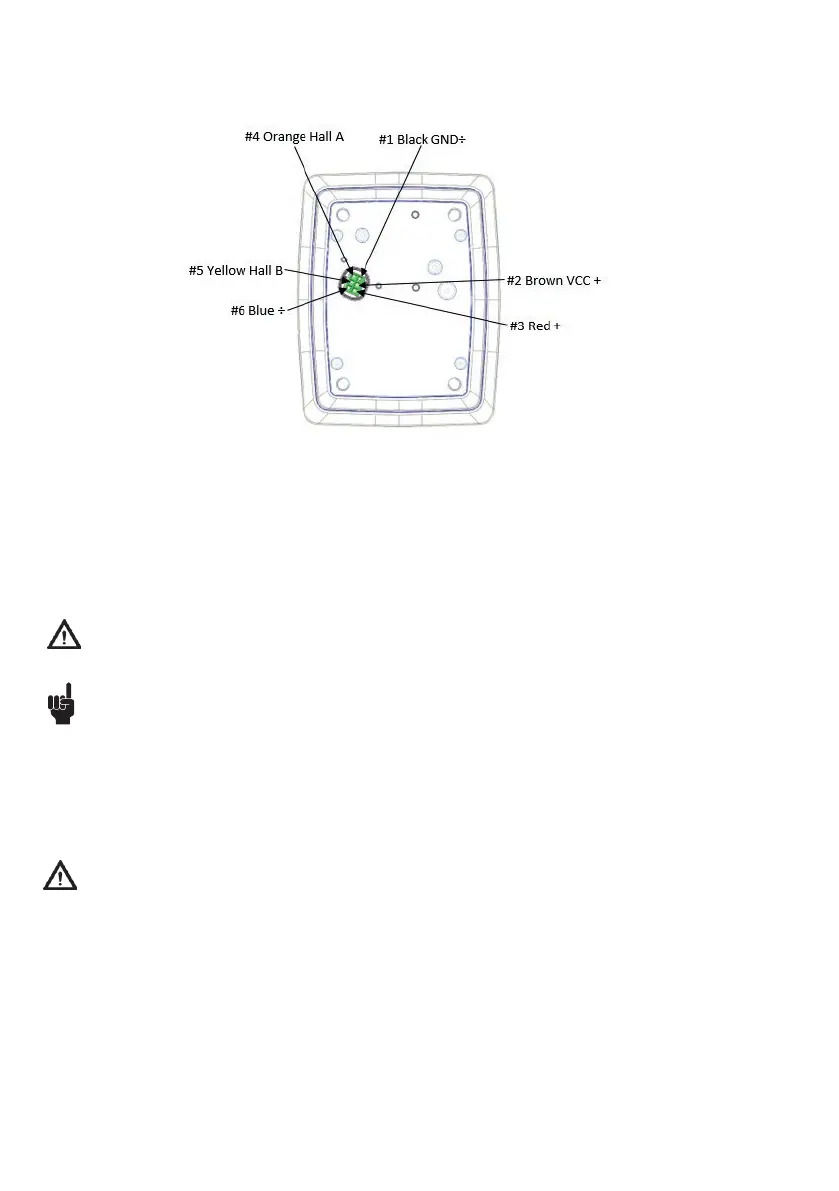

Hall Output:
4 mm spindle = 0,25 mm per pulse and 400 pulses per 100 mm stroke.
9 mm spindle = 0,5625 mm per pulse and 178 pulses per 100 mm stroke.
