Operation 4
Working under load
The same procedure should be followed for
other lift heights und centre of gravity dis-
tances. The values calculated refer to both
fork arms and a uniformly distributed load.

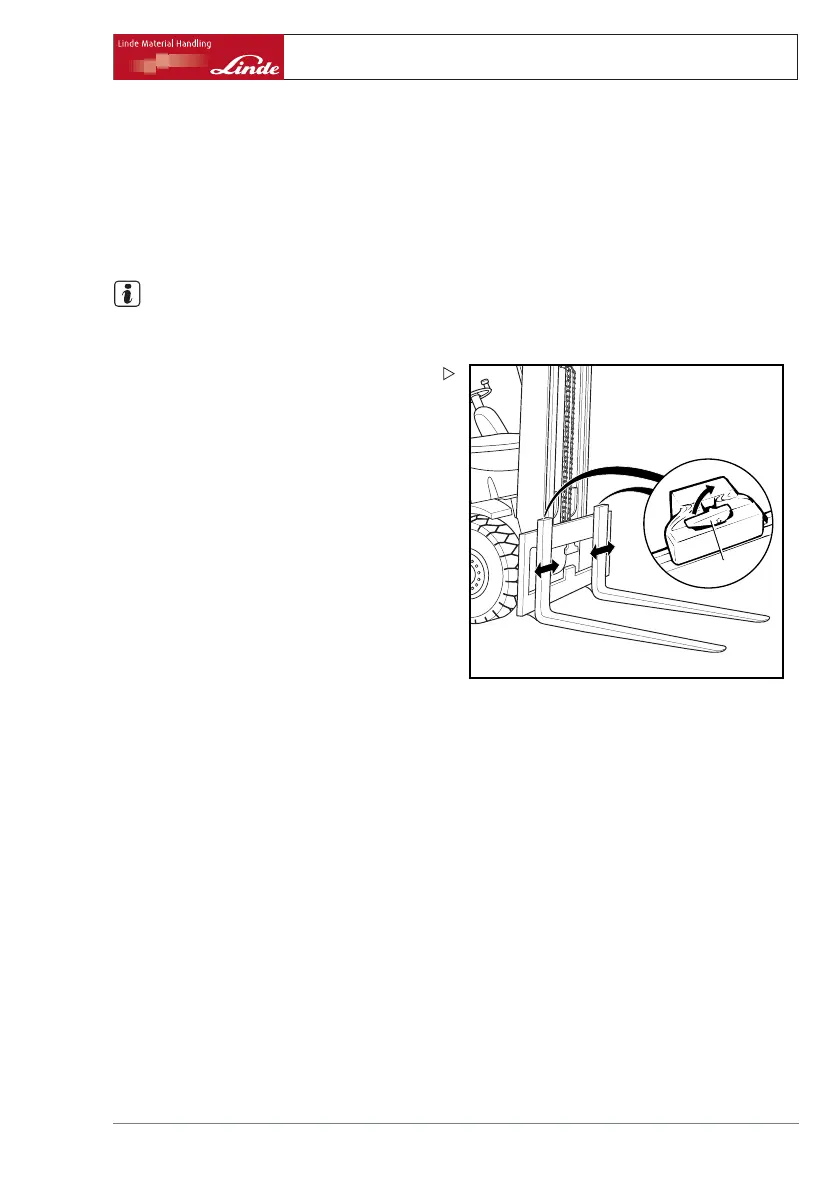

Adjust fork arm distance
NOTE
The centre of gravity of the load should be po-
sitioned between the fork arms in the middle.
d3921429
1
¾ Lift the stopping lever (1).
¾ Adjust the fork arms inwards o
routwards
according to the load to be li
fted .
Ensure a uniform distance to the centre of the
forklift truck.
¾ Allow the stopping lever to snap into place
in a groove on the fork carriage.
Operating Instructions – 386 807 1001 EN – 03/2006 65
