4 Operation
Standard equipment
d3931328

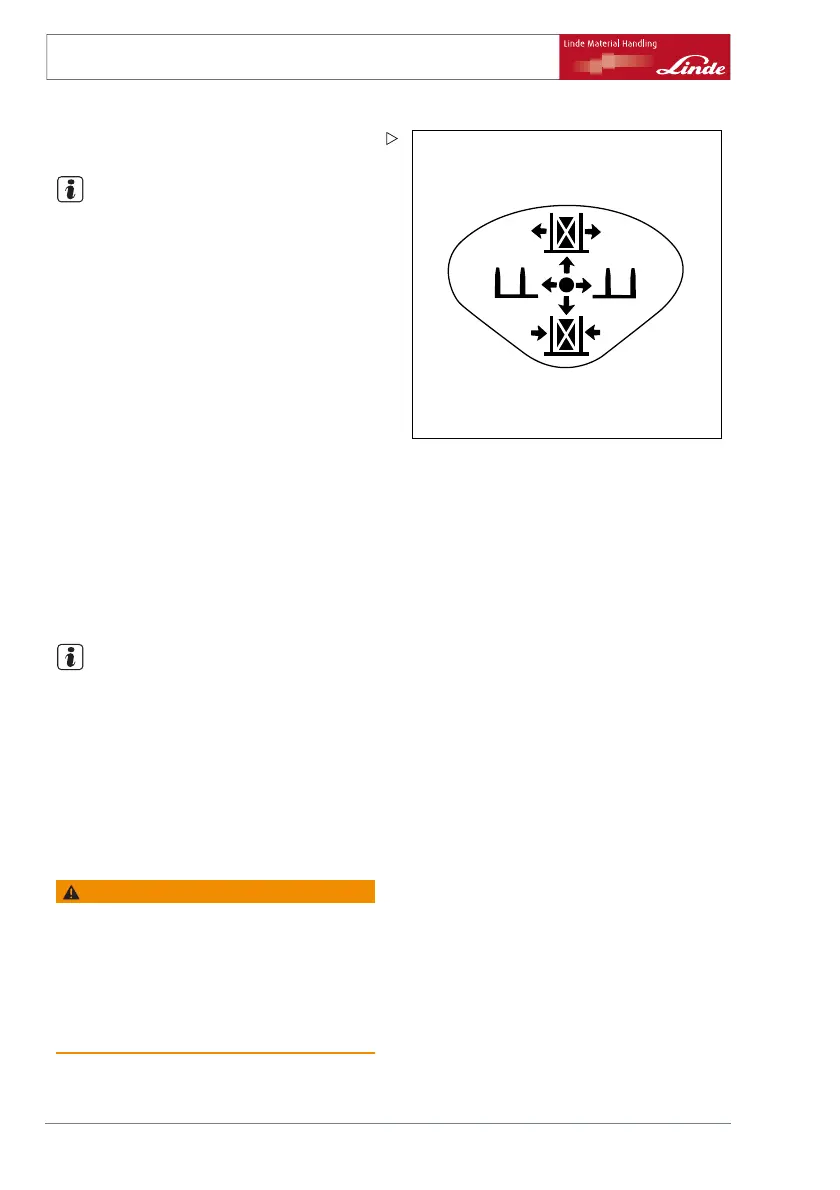

¾ Take note of the switching symbols with
arrows.
NOTE
For every attachment a plate stat
ing the load
capacity of the forklift truck wi
th attachment
must be affixed to the battery c
over and a sym-
bol label for the relevant atta
chment behind
the operating lever.
Operate sideshift
¾ Move operating lever (2) to the left.
Sideshift moves to the left.
¾ Move operating lever (2) to the r
ight.
Sideshift moves to the right.
Operate clamps
¾ Move operating lever (2) forwards.
Clamp opens.
¾ Pull back operating lever (2) .
Clamp closes.
NOTE
Before fitting an attachment the hydraulic
system for the additional hydraulics must be
depressurised in order to open the union nuts
on the fork carriage . Here consult the section
"Depressurisation of additional hydraulics".
Lifting system and attachments (sin-
gle lever operation)
WARNING
With the moving lift mast or any attachment there is
a risk of the driver getting caught in between.
Therefore never reach or step into the lift mast or
the space between the lift mast and the truck. The
lifting system and attachments should only ever
be used for their proper purpose. Drivers must be
instructed in the handling of the lifting system and
attachments. Bear the maximum lift height in mind.
46 Operating Instructions – 386 807 1001 EN – 03/2006
