Maintenance 5
Troubleshooting
Towing instructions
Towing
If the truck needs to be towed away, the follow-
ing can be brought about by the towing device:
• shortcircuiting of hydraulic oil
circuit
• release of multi-disc brakes in drive axle via
brake valve and Stop pedal .
WARNING
Braking of the truck is no longer possible. The par-
king brake does not function either.
To tow the truck a towing vehicle with sufficient
tractive power and braking force for the unbraked
towed load is thus required. It is only permitted to
tow the truck using a fixed connection (towing rod).
Towing process
¾ Lower load so that fork arms do not scrape
on ground during towing .
¾ Remove load.
¾ Attach towing vehicle (ensure sufficient
tractive power and braking force) to towing
bolt of truck using towing rod .

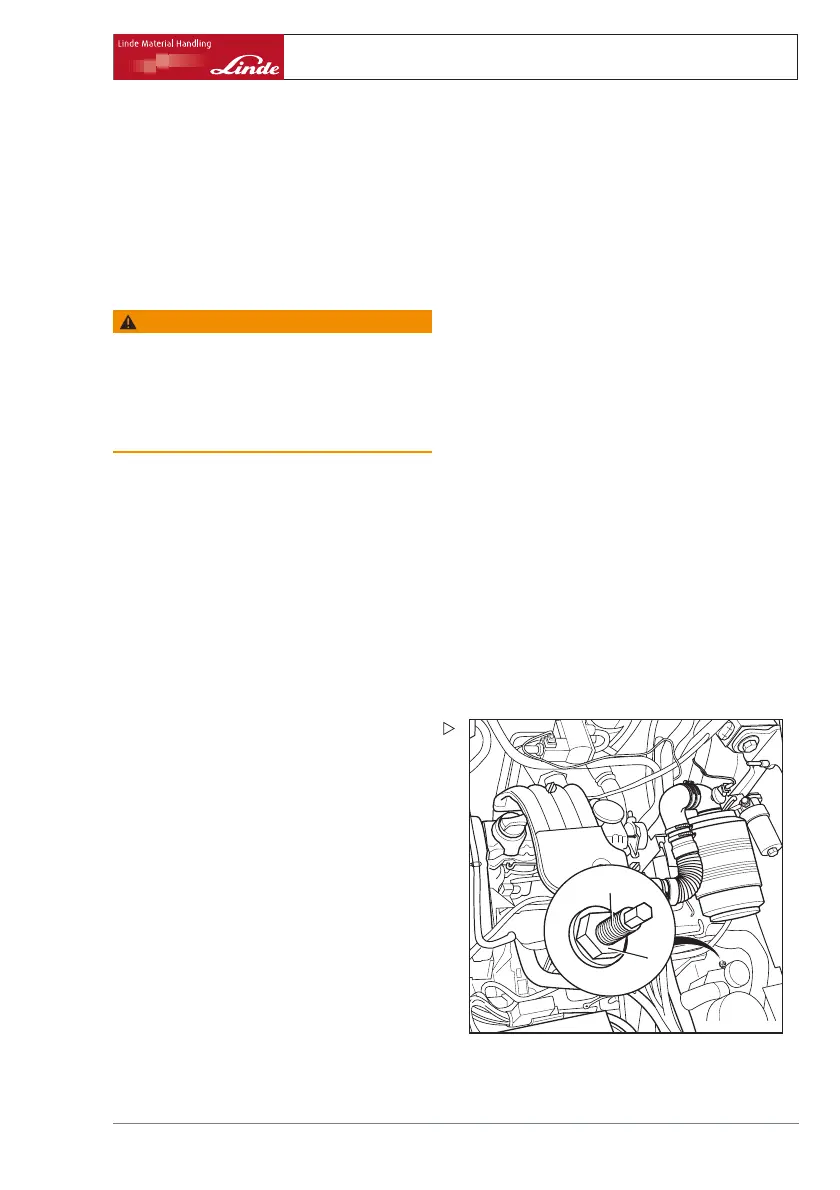

Open shorting plunger of hydraulics
¾ Open motor hood.
d3921510
1
2
¾ Release sealing collar nut (1) (size
SW 19 mm) on left on variable pump with
socket at housing.
¾ Unscrew threaded stud (2) (SW 8 mm)
2 turns with socket .
¾ Lock threaded stud with sealing collar nut
(1), tighten to 80 Nm.
¾ Close motor hood.
Release multi-disc brake
The brake valve can be found under the floor
plate on the truck frame on the left.
¾ Remove floormat.
Operating Instructions – 393 807 1001 EN – 08/2008 191
