Operation 4
Loading / Transporting
WARNING
The roll-up protection on the removed hose pulley
must not be opened.
If this cannot be avoided, reduce the spring tension
to 0 beforehand. Please contact your authorised
dealer.
¾ Open the bonnet.
¾ Open floor plate and secure it.
1
2
3
4
5
d3921468

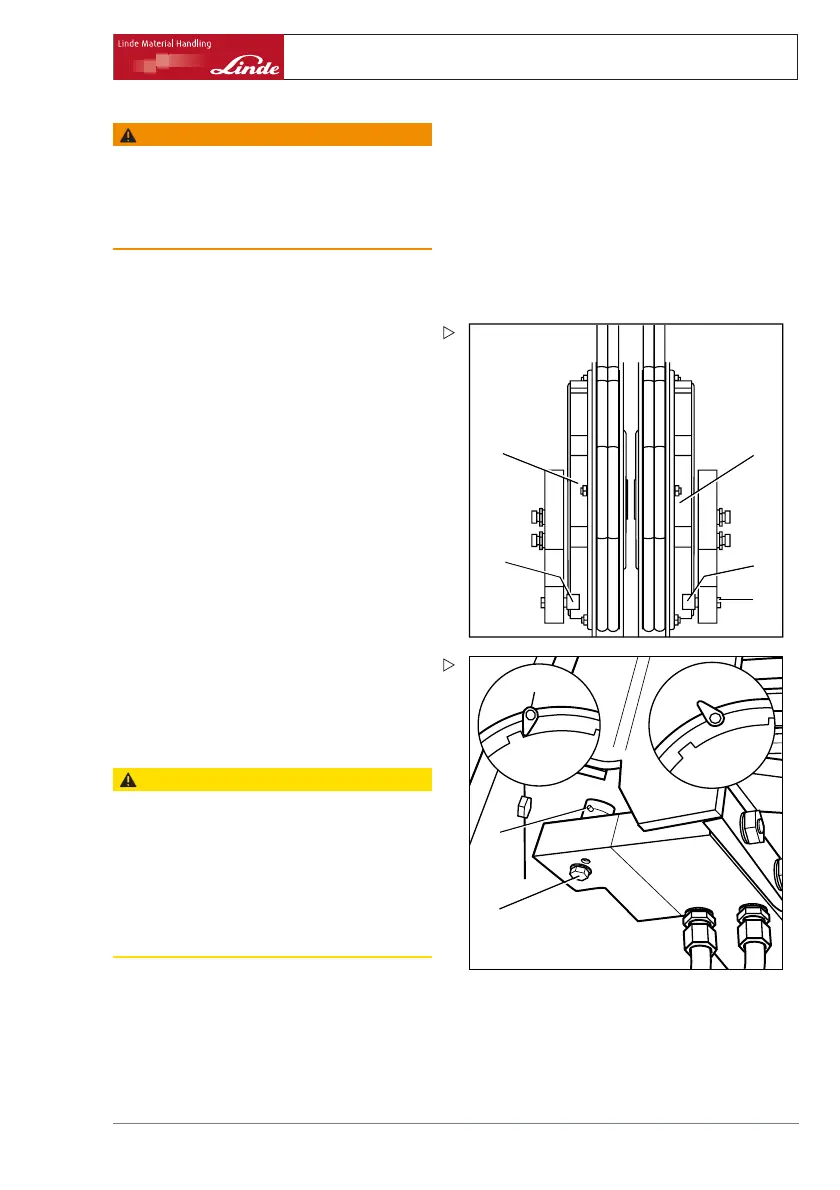

¾ Turn the hexagon head screw (3) on the
hose pulley (1) in the direction of travel
(right) with a wrench (SW 10) to the stop in
the secure position (6).
The safety catch (2) points against the direc-
tion of travel and the slotted spring pin (8) is
visible; the hose pulley is secured against
rolling up.
d3921481
3
8
7
6
2
¾ For double auxiliary hydraulics, turn the
safety catch (4) of the second hose pulley
(5) to the secure position (6) as well.
¾ Disconnect the hoses when removing the
lift mast.
CAUTION
If the lift mast is extended with the roll-up protection
closed, the hose lines cannot be damaged (ratchet
effect). However, when the mast is then retrac-
ted, the hose lines are no longer rolled up and may
therefore be damaged.
Only once the lift mast has been refitted (hoses
connected again), should the roll-up protection be
released. To do so, return the safety catch(es) to
the free-wheel setting (7) (safety catch visible).
Dismantling the lift mast
This work should only be performed by spe-
cialist staff working for your authorised dealer .
