BACK-UP BATTERY CONNECTING
With regard to the possibility of unwanted switching on of AVE2 upon packaging, transport and un-
packing, the battery is normally disconnected from the equipment. The following pictures show how
to connect the battery

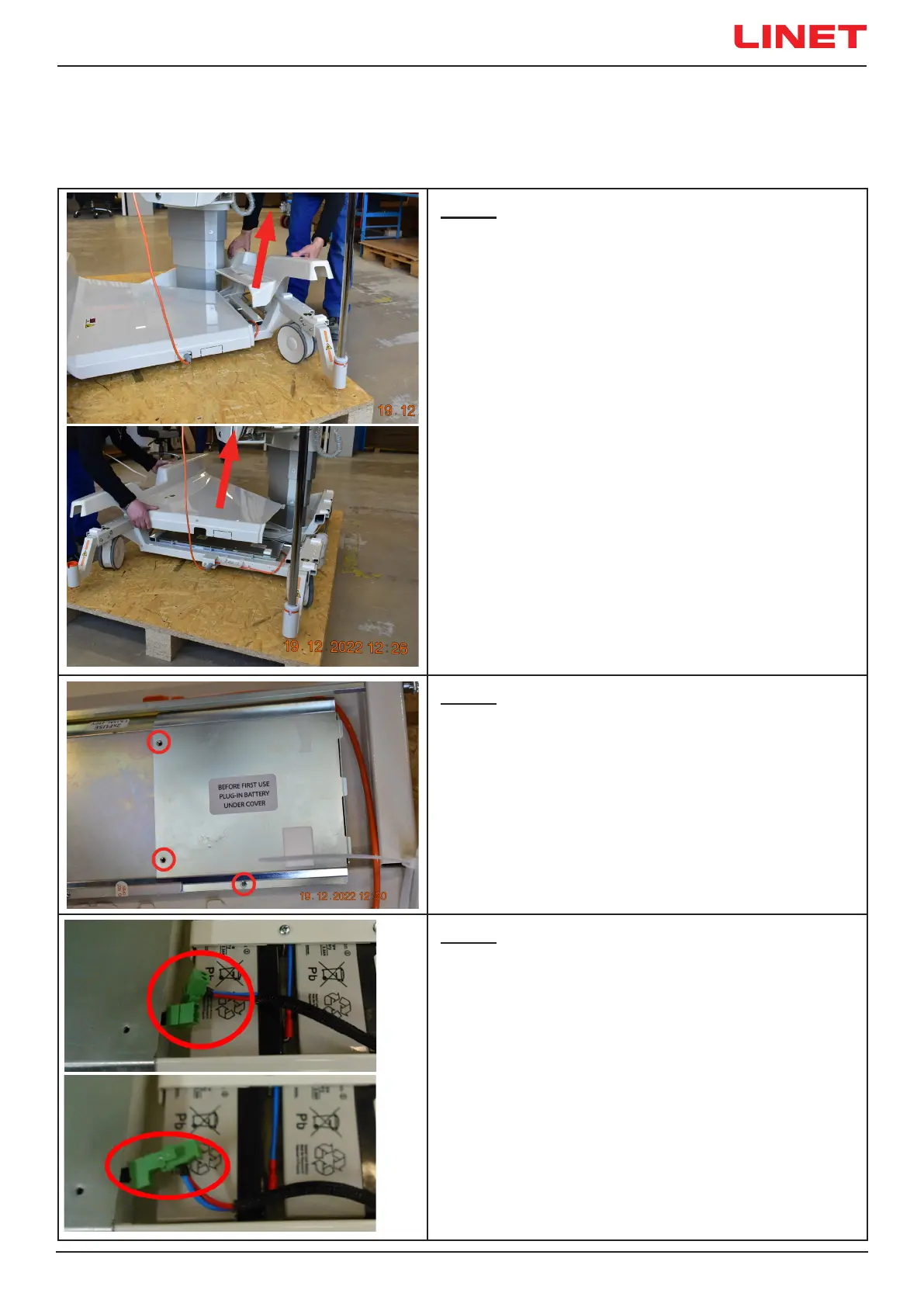

Step 1
• Remove the undercarriage cover
Step 2
• The cover is removed by screwing out three
wrenches
Step 3
• Insert the connector in the back-up battery
• Put the protective cover in place and screw the
Allen wrenches back on
