D9U001PPB-0101
53/106
►

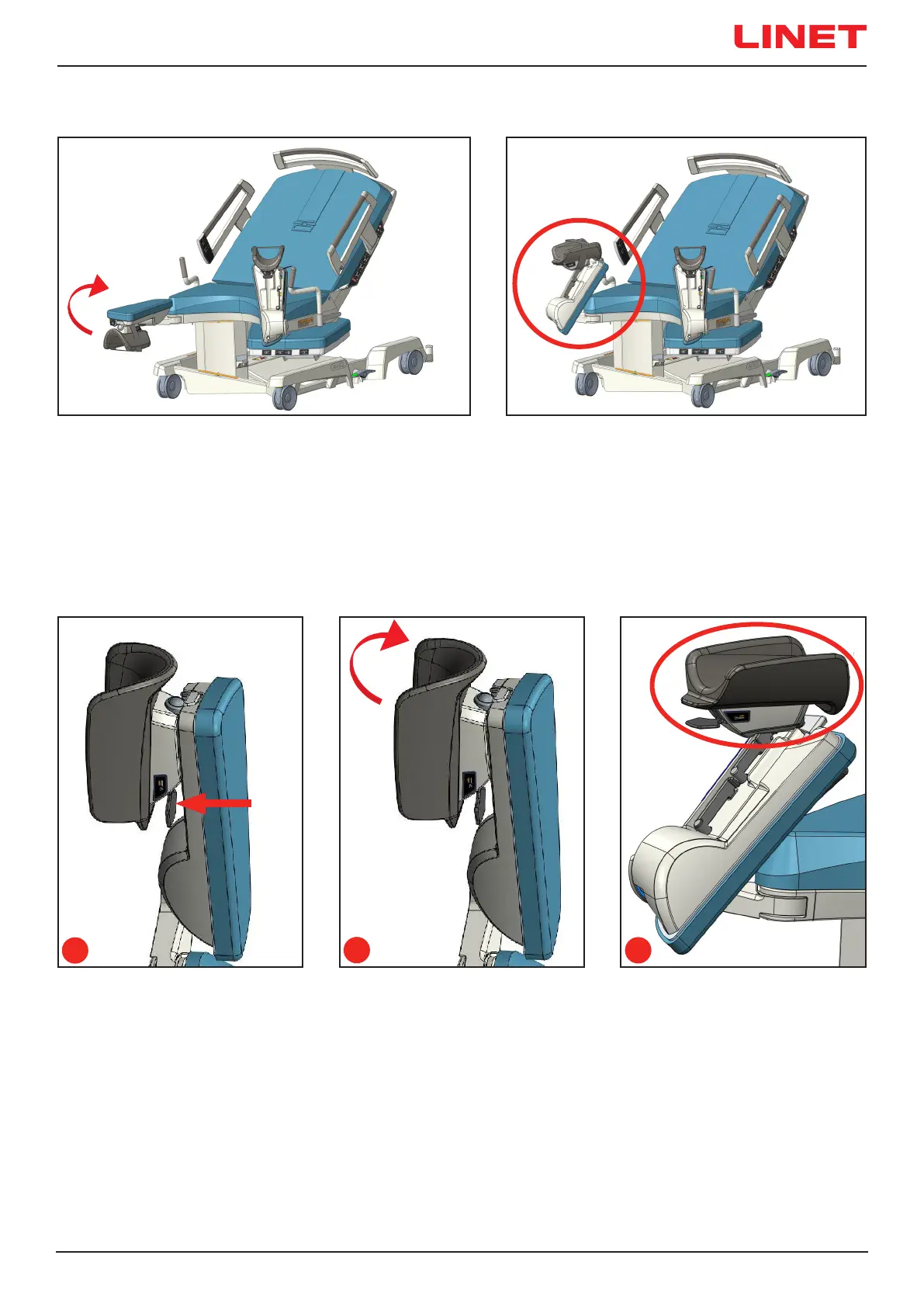

and with same hand pull the leg rest in the desired position
Then adjust the leg rest tray:
►
With one hand pull the „Folding/unfolding of the leg rest tray“control lever as on the picture
below
(1)
►
Then with same hand pull the tray to the desired position
(2)
►
Releasing the control lever locks the tray in the position
(3)
►
T
o reset the tray to its original position, repeat the procedure reversely
