LINET MULTICARE 2015

Project SERVICE MANUAL
Date
05-2017
Version 05
32/84

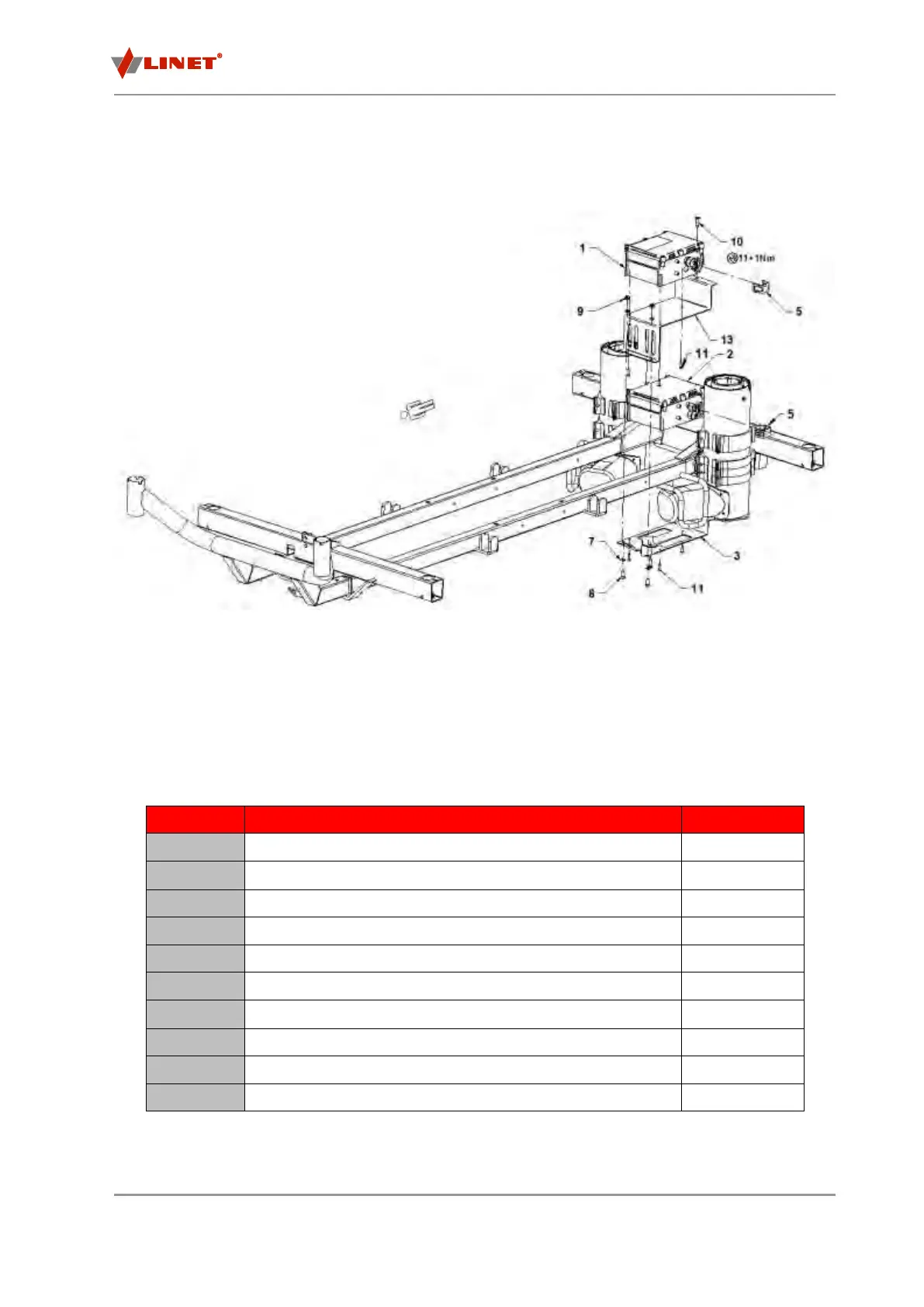

4.12.1 Power supply
POSITION
PART NAME
PCS
1
Power supply of fifth castor
1
2
Power supply of the bed (Power box 1 MC with i-Drive Power)
1
3
Holder of power supply
1
5
Fastener
2
7
Distance washer 6,4 DIN 125A
4
8
Screw M6x14 IMB DIN7984
2
9
Selflocking nut M6 DIN985
2
10
Self-tapping screw M6x20 VALCOC Torx 30 DIN 7500C
2
11
Screw for plastic parts 3,5x16 VALCOC Torx Plasfast30T
6
13
Upper holder of power supply
1
