LINET MULTICARE 2015 User Manual

Project SERVICE MANUAL
Date
05-2017
Version 05
33/84

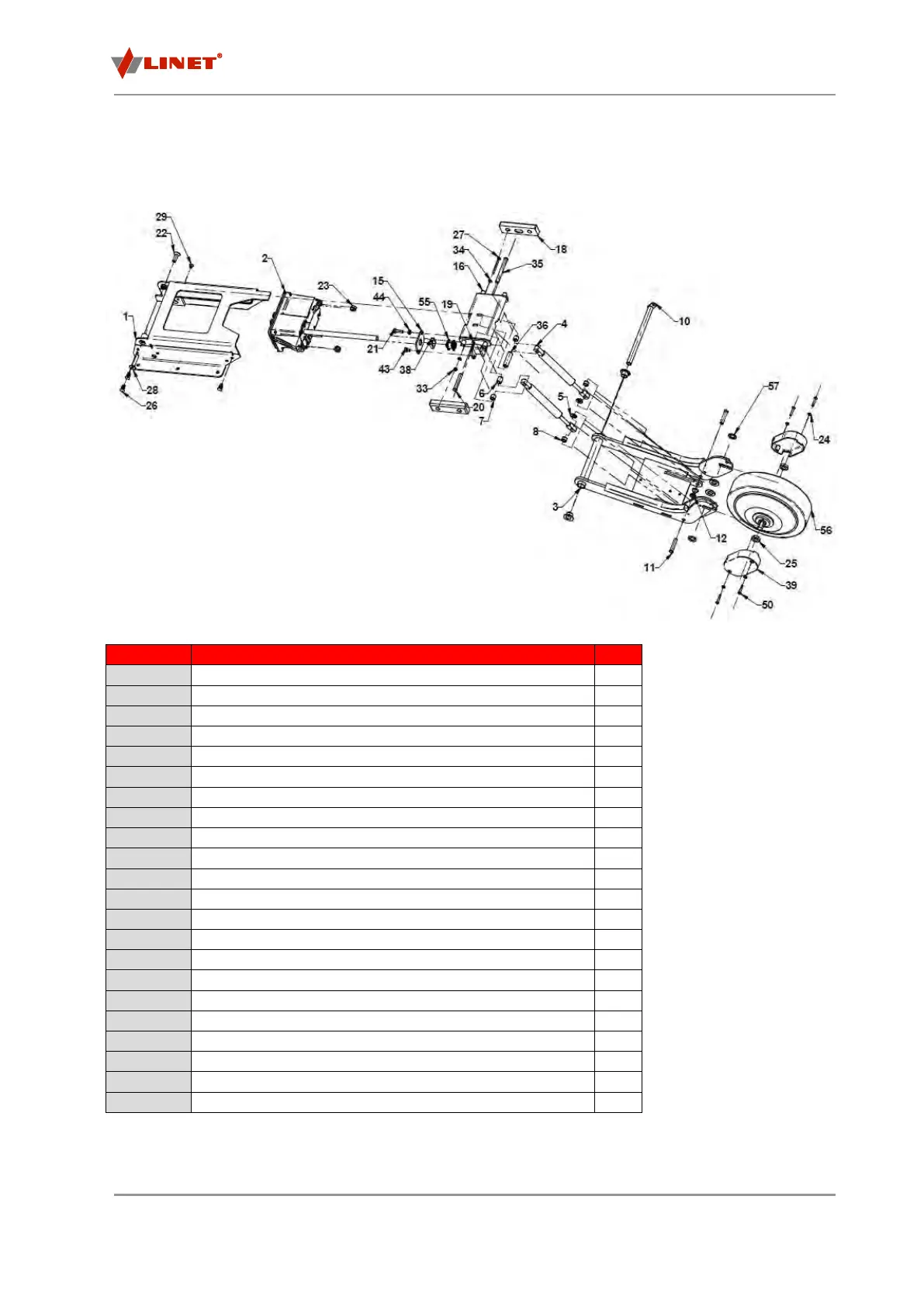

4.12.2 Drive wheel assembly
POSITION
PART NAME
PCS
1
Frame of drive wheel
1
2
iDrive drive
1
3
iDrive welded arm
1
4
Gas spring
2
5
Distance washer plastic 8,4/16/1,6
2
6
Distance busher 8x12x15
1
7
Distance busher 8x12x5
2
8
Distance busher 8x12x8
2
10
Wheel cog
1
11
Bottom gas spring cog
2
12
Starlock deep 8
2
15
Flange nut
1
16
Support of gas spring compression
1
18
Guiding element
2
19
Nut holder
1
20
Upper gas spring cog
1
21
Hex screw M6x20 DIN933
1
22
Embedded screw M8x25 IMB DIN7991
1
23
Selflocking nut M8 DIN985
2
24
Fan-shaped washer conic Fe/Zn/Cr
4
25
Nut M12 DIN439
2
26
Stopping fastener
3
