Project SERVICE MANUAL
Date
05-2017
75/84

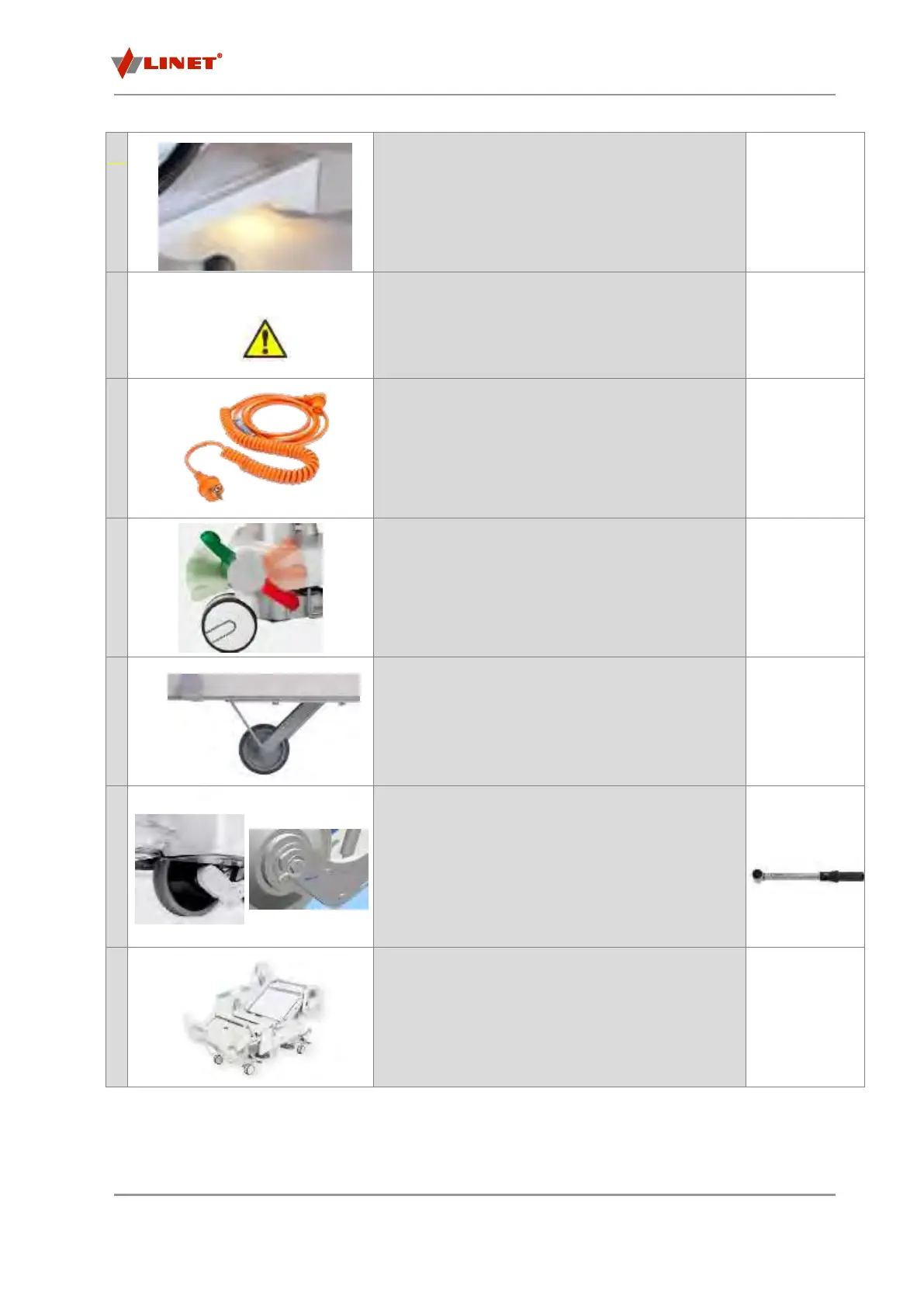

Checking the night light
Connect the supply cable to mains electricity.
Visually check the function of the light.
Checking electrical wiring
Visually check all groups of cables on the bed undercarriage.
Check that the plastic trunking is securely fixed and that the covers
are closed.
Check that the cables are correctly secured with cable ties.
Checking the main power cable
Visually check the complete main cable.
Check that the cable gland is securely fixed to the bed frame.
Checking the ibrake system
Check the function of the ibrake after connecting the supply cable
(Check the function from the braked position and steering-lock
position).
Check that the brake functions correctly (red lever downwards) –
(Castor wheel rotation and
castor swivelling should be locked).
Checking the 5th castor system
Check that the 5th castor raises (when the green lever is up) and
lowers (when the green lever is down) to the end position under
battery power
Check that the castor raises when the bed is connected to mains
power.
Checking the iDrive Power
Check that the i Drive Power lowers (press ON button) and raises
(press OFF button) to the end position under battery power .
Check that iDrive is charging when the bed is connected to mains
power.
Check the driving with iDrive Power.
Check the wheel tread, if not damage.
Check the torque of the nut fixing the wheel (25 + 3Nm)
During BTK (Safety technical examination) check if it is possible to lift
the wheel by emergency lift button.
General visual check of patient surface parts
Check these parts: frame, HPL parts, siderails, siderail mechanisms,
head and foot bed ends, other parts.
Check the surface finish (paintwork).
Check the welded connections.
