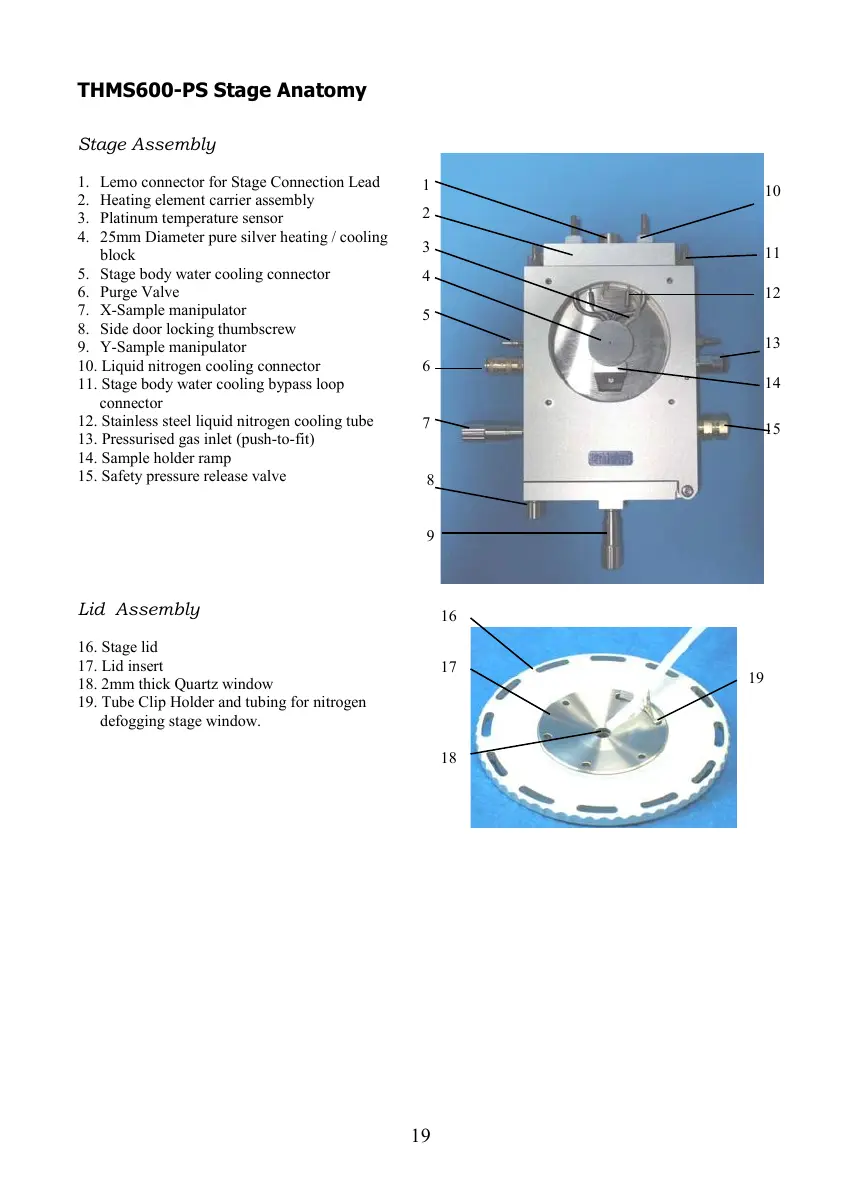

THMS600-PS Stage Anatomy
Stage Assembly
1. Lemo connector for Stage Connection Lead
2. Heating element carrier assembly
3. Platinum temperature sensor
4. 25mm Diameter pure silver heating / cooling
block
5. Stage body water cooling connector
6. Purge Valve
7. X-Sample manipulator
8. Side door locking thumbscrew
9. Y-Sample manipulator
10. Liquid nitrogen cooling connector
11. Stage body water cooling bypass loop
connector
12. Stainless steel liquid nitrogen cooling tube
13. Pressurised gas inlet (push-to-fit)
14. Sample holder ramp
15. Safety pressure release valve
Lid Assembly
16. Stage lid
17. Lid insert
18. 2mm thick Quartz window
19. Tube Clip Holder and tubing for nitrogen
defogging stage window.
16
17
18
19
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
