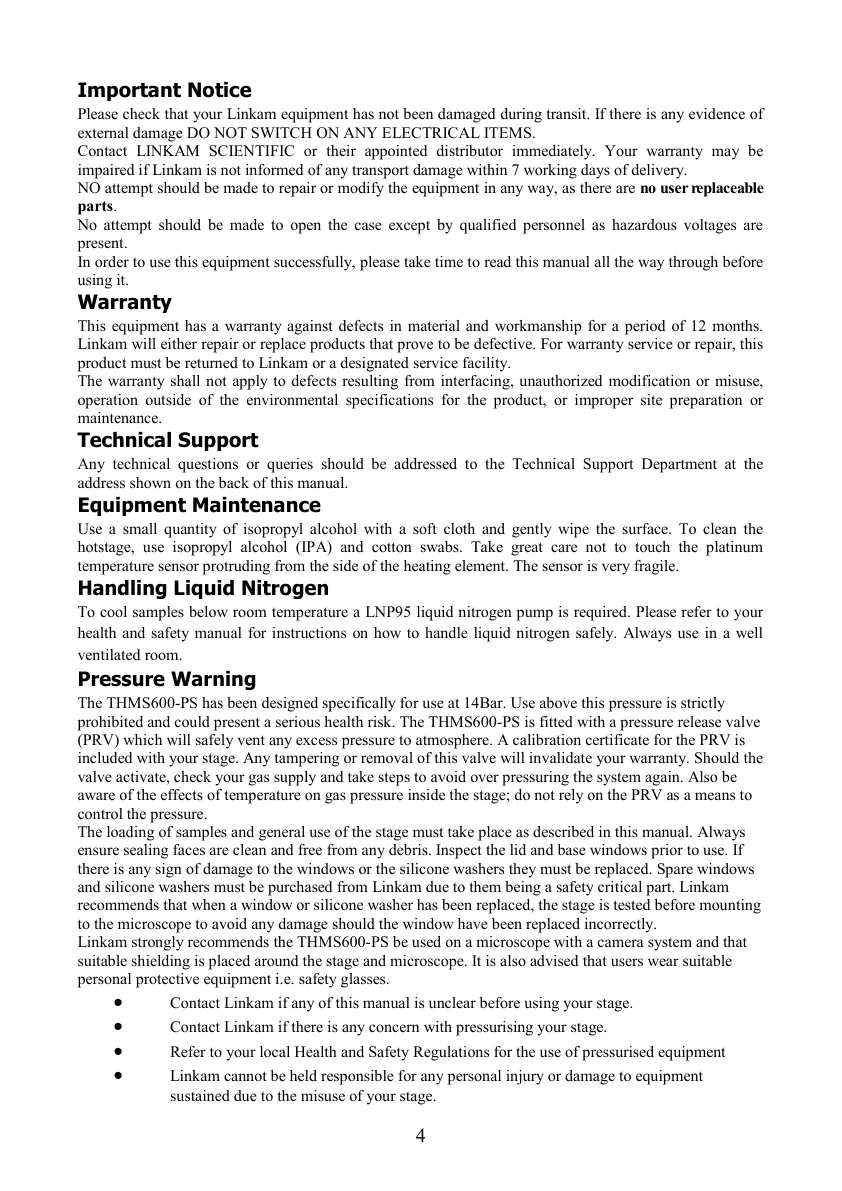

Important Notice
Please check that your Linkam equipment has not been damaged during transit. If there is any evidence of
external damage DO NOT SWITCH ON ANY ELECTRICAL ITEMS.
Contact LINKAM SCIENTIFIC or their appointed distributor immediately. Your warranty may be
impaired if Linkam is not informed of any transport damage within 7 working days of delivery.
NO attempt should be made to repair or modify the equipment in any way, as there are no user replaceable
parts.
No attempt should be made to open the case except by qualified personnel as hazardous voltages are
present.
In order to use this equipment successfully, please take time to read this manual all the way through before
using it.
Warranty
This equipment has a warranty against defects in material and workmanship for a period of 12 months.
Linkam will either repair or replace products that prove to be defective. For warranty service or repair, this
product must be returned to Linkam or a designated service facility.
The warranty shall not apply to defects resulting from interfacing, unauthorized modification or misuse,
operation outside of the environmental specifications for the product, or improper site preparation or
maintenance.
Technical Support
Any technical questions or queries should be addressed to the Technical Support Department at the
address shown on the back of this manual.
Equipment Maintenance
Use a small quantity of isopropyl alcohol with a soft cloth and gently wipe the surface. To clean the
hotstage, use isopropyl alcohol (IPA) and cotton swabs. Take great care not to touch the platinum
temperature sensor protruding from the side of the heating element. The sensor is very fragile.
Handling Liquid Nitrogen
To cool samples below room temperature a LNP95 liquid nitrogen pump is required. Please refer to your
health and safety manual for instructions on how to handle liquid nitrogen safely. Always use in a well
ventilated room.
Pressure Warning
The THMS600-PS has been designed specifically for use at 14Bar. Use above this pressure is strictly
prohibited and could present a serious health risk. The THMS600-PS is fitted with a pressure release valve
(PRV) which will safely vent any excess pressure to atmosphere. A calibration certificate for the PRV is
included with your stage. Any tampering or removal of this valve will invalidate your warranty. Should the
valve activate, check your gas supply and take steps to avoid over pressuring the system again. Also be
aware of the effects of temperature on gas pressure inside the stage; do not rely on the PRV as a means to
control the pressure.
The loading of samples and general use of the stage must take place as described in this manual. Always
ensure sealing faces are clean and free from any debris. Inspect the lid and base windows prior to use. If
there is any sign of damage to the windows or the silicone washers they must be replaced. Spare windows
and silicone washers must be purchased from Linkam due to them being a safety critical part. Linkam
recommends that when a window or silicone washer has been replaced, the stage is tested before mounting
to the microscope to avoid any damage should the window have been replaced incorrectly.
Linkam strongly recommends the THMS600-PS be used on a microscope with a camera system and that
suitable shielding is placed around the stage and microscope. It is also advised that users wear suitable
personal protective equipment i.e. safety glasses.
Contact Linkam if any of this manual is unclear before using your stage.
Contact Linkam if there is any concern with pressurising your stage.
Refer to your local Health and Safety Regulations for the use of pressurised equipment
Linkam cannot be held responsible for any personal injury or damage to equipment
sustained due to the misuse of your stage.
