23

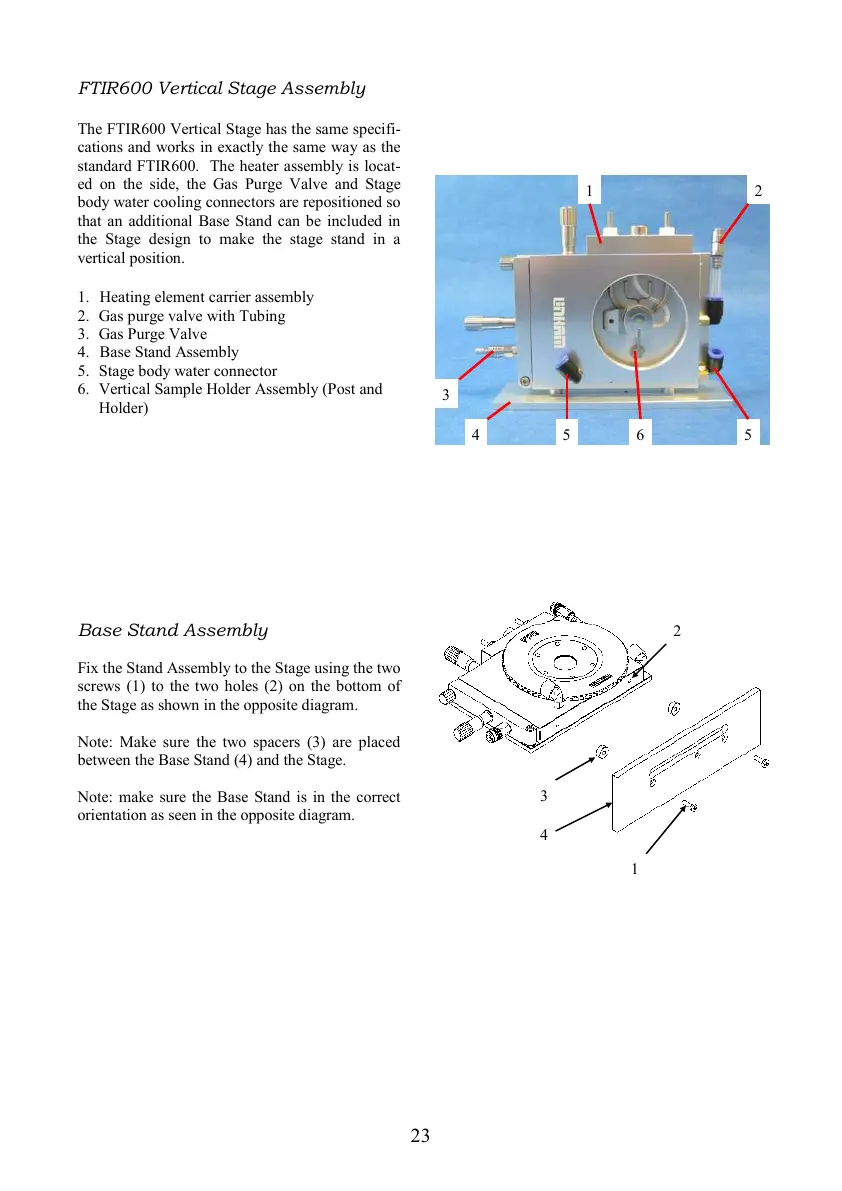

FTIR600 Vertical Stage Assembly
The FTIR600 Vertical Stage has the same specifi-
cations and works in exactly the same way as the
standard FTIR600. The heater assembly is locat-
ed on the side, the Gas Purge Valve and Stage
body water cooling connectors are repositioned so
that an additional Base Stand can be included in
the Stage design to make the stage stand in a
vertical position.
1. Heating element carrier assembly
2. Gas purge valve with Tubing
3. Gas Purge Valve
4. Base Stand Assembly
5. Stage body water connector
6. Vertical Sample Holder Assembly (Post and
Holder)
Base Stand Assembly
Fix the Stand Assembly to the Stage using the two
screws (1) to the two holes (2) on the bottom of
the Stage as shown in the opposite diagram.
Note: Make sure the two spacers (3) are placed
between the Base Stand (4) and the Stage.
Note: make sure the Base Stand is in the correct
orientation as seen in the opposite diagram.
1 2
3
4 5 5 6
3
4
1
2
