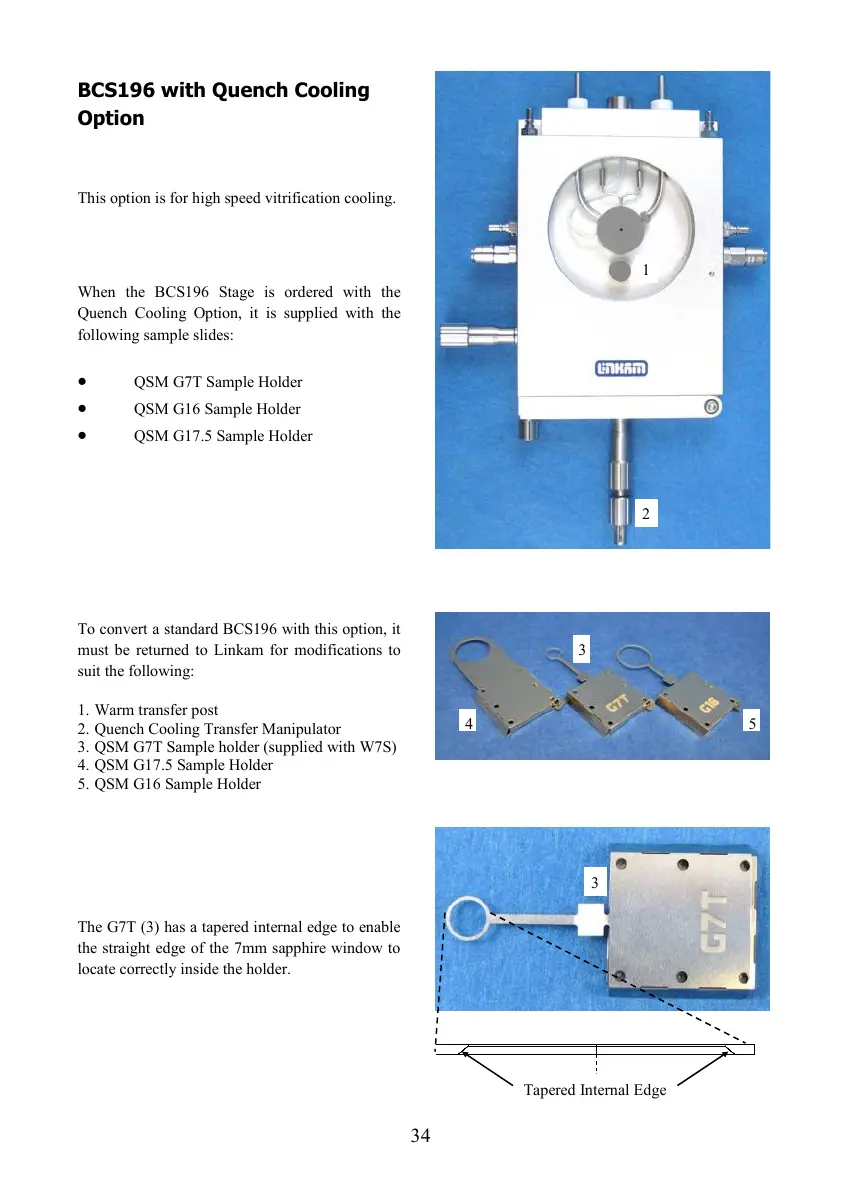

BCS196 with Quench Cooling
Option
This option is for high speed vitrification cooling.
When the BCS196 Stage is ordered with the
Quench Cooling Option, it is supplied with the
following sample slides:
QSM G7T Sample Holder
QSM G16 Sample Holder
QSM G17.5 Sample Holder
To convert a standard BCS196 with this option, it
must be returned to Linkam for modifications to
suit the following:
1. Warm transfer post
2. Quench Cooling Transfer Manipulator
3. QSM G7T Sample holder (supplied with W7S)
4. QSM G17.5 Sample Holder
5. QSM G16 Sample Holder
The G7T (3) has a tapered internal edge to enable
the straight edge of the 7mm sapphire window to
locate correctly inside the holder.
3
Tapered Internal Edge
1
2
3
4 5
To Next Page
