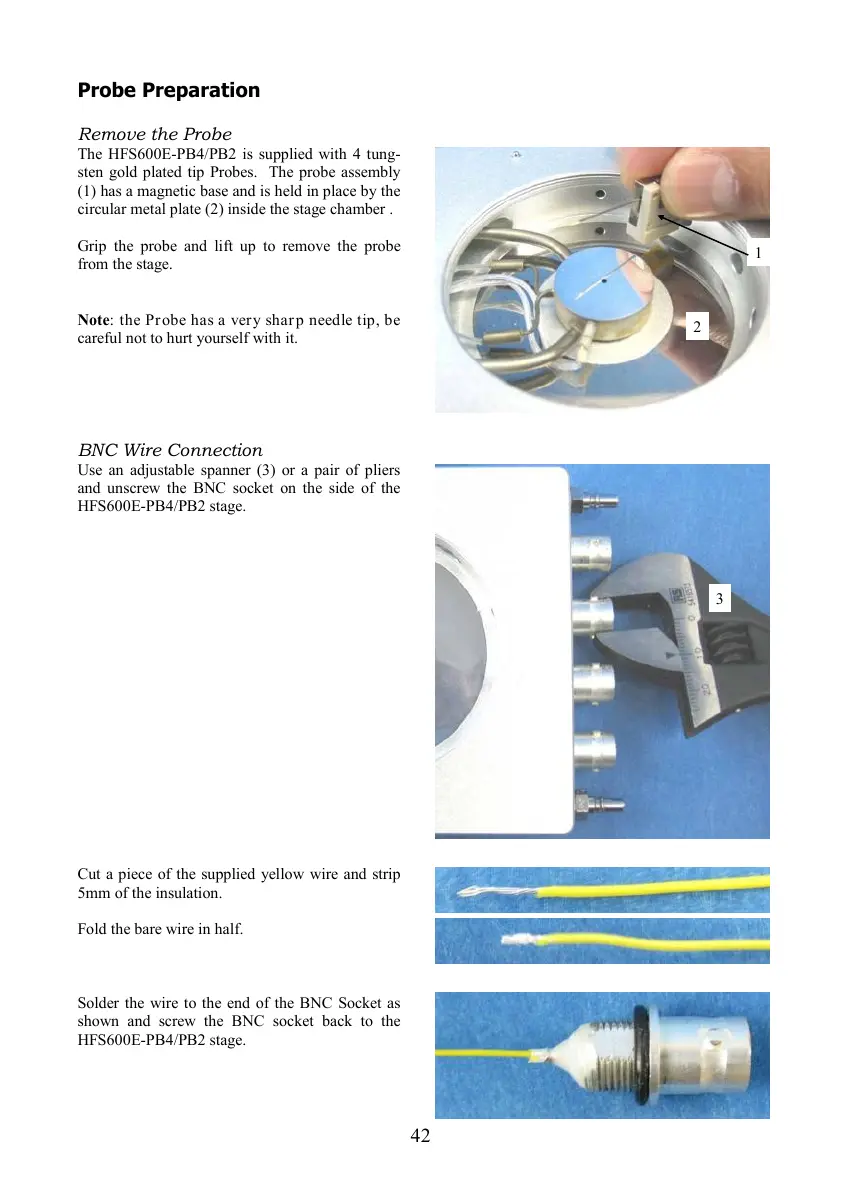

Probe Preparation
Remove the Probe
The HFS600E-PB4/PB2 is supplied with 4 tung-
sten gold plated tip Probes. The probe assembly
(1) has a magnetic base and is held in place by the
circular metal plate (2) inside the stage chamber .
Grip the probe and lift up to remove the probe
from the stage.
Note: the Pr obe has a ver y shar p needle tip, be
careful not to hurt yourself with it.
BNC Wire Connection
Use an adjustable spanner (3) or a pair of pliers
and unscrew the BNC socket on the side of the
HFS600E-PB4/PB2 stage.
Cut a piece of the supplied yellow wire and strip
5mm of the insulation.
Fold the bare wire in half.
Solder the wire to the end of the BNC Socket as
shown and screw the BNC socket back to the
HFS600E-PB4/PB2 stage.
2
1
3
