25

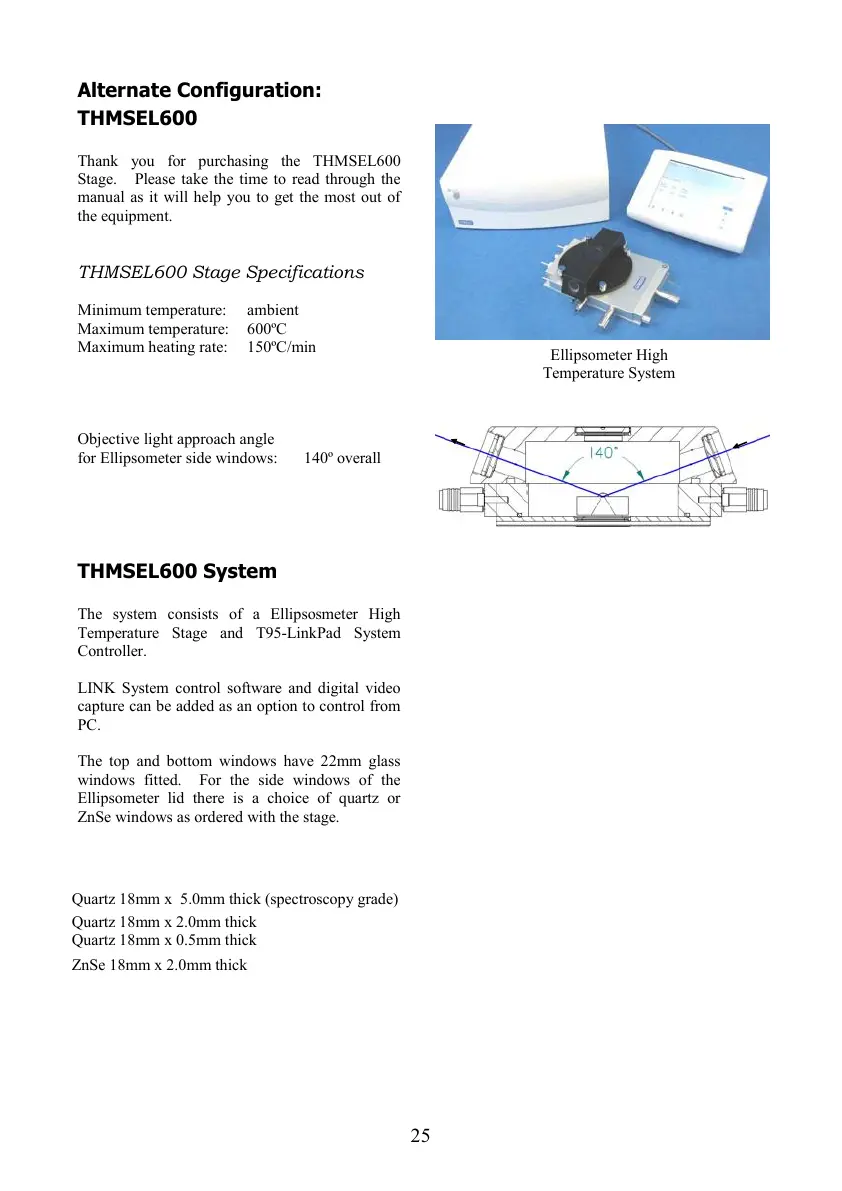

Alternate Configuration:
THMSEL600
Thank you for purchasing the THMSEL600
Stage. Please take the time to read through the
manual as it will help you to get the most out of
the equipment.
THMSEL600 Stage Specifications
Minimum temperature: ambient
Maximum temperature: 600ºC
Maximum heating rate: 150ºC/min
Objective light approach angle
for Ellipsometer side windows: 140º overall
THMSEL600 System
The system consists of a Ellipsosmeter High
Temperature Stage and T95-LinkPad System
Controller.
LINK System control software and digital video
capture can be added as an option to control from
PC.
The top and bottom windows have 22mm glass
windows fitted. For the side windows of the
Ellipsometer lid there is a choice of quartz or
ZnSe windows as ordered with the stage.
Ellipsometer High
Temperature System
Quartz 18mm x 5.0mm thick (spectroscopy grade)
Quartz 18mm x 2.0mm thick
Quartz 18mm x 0.5mm thick
ZnSe 18mm x 2.0mm thick
