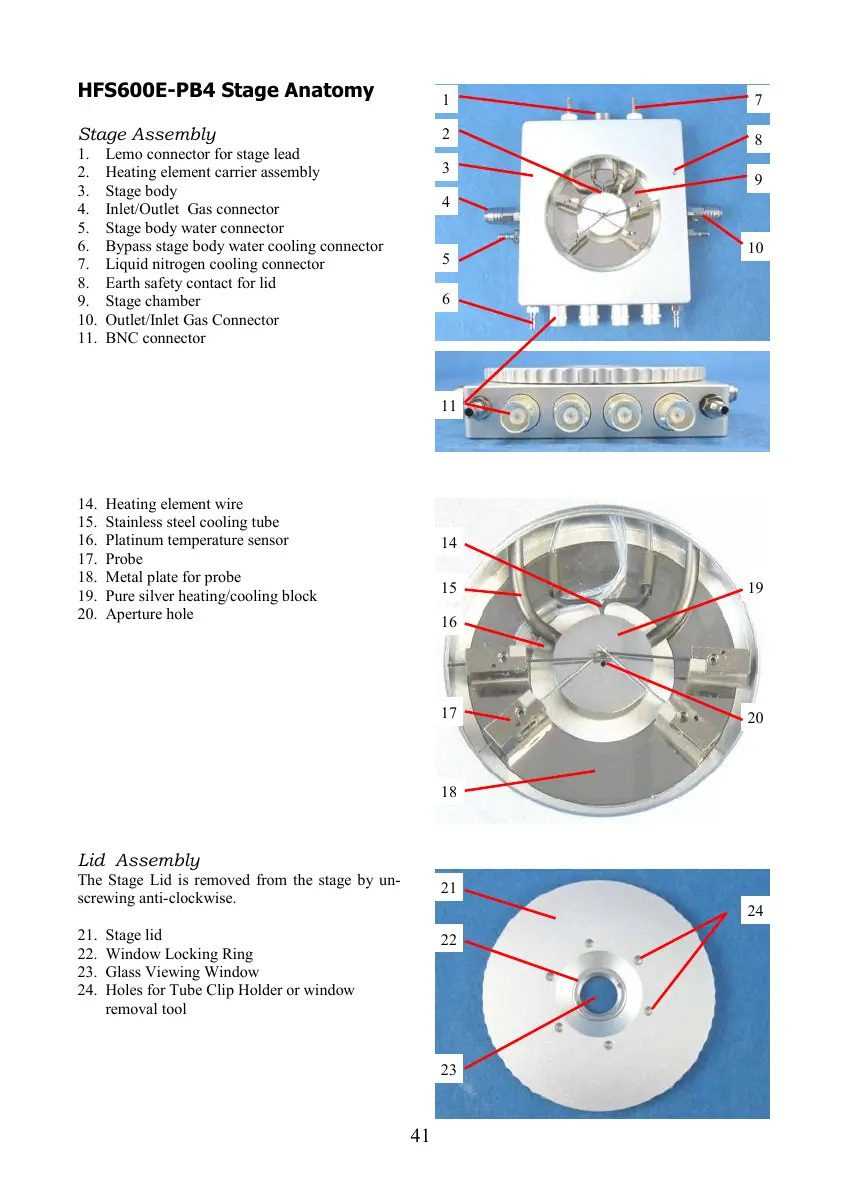

HFS600E-PB4 Stage Anatomy
Stage Assembly
1. Lemo connector for stage lead
2. Heating element carrier assembly
3. Stage body
4. Inlet/Outlet Gas connector
5. Stage body water connector
6. Bypass stage body water cooling connector
7. Liquid nitrogen cooling connector
8. Earth safety contact for lid
9. Stage chamber
10. Outlet/Inlet Gas Connector
11. BNC connector
14. Heating element wire
15. Stainless steel cooling tube
16. Platinum temperature sensor
17. Probe
18. Metal plate for probe
19. Pure silver heating/cooling block
20. Aperture hole
Lid Assembly
The Stage Lid is removed from the stage by un-
screwing anti-clockwise.
21. Stage lid
22. Window Locking Ring
23. Glass Viewing Window
24. Holes for Tube Clip Holder or window
removal tool
14
15
16
17
18
19
20
1
2
3
5
4
6
7
8
10
9
21
22
23
24
11
