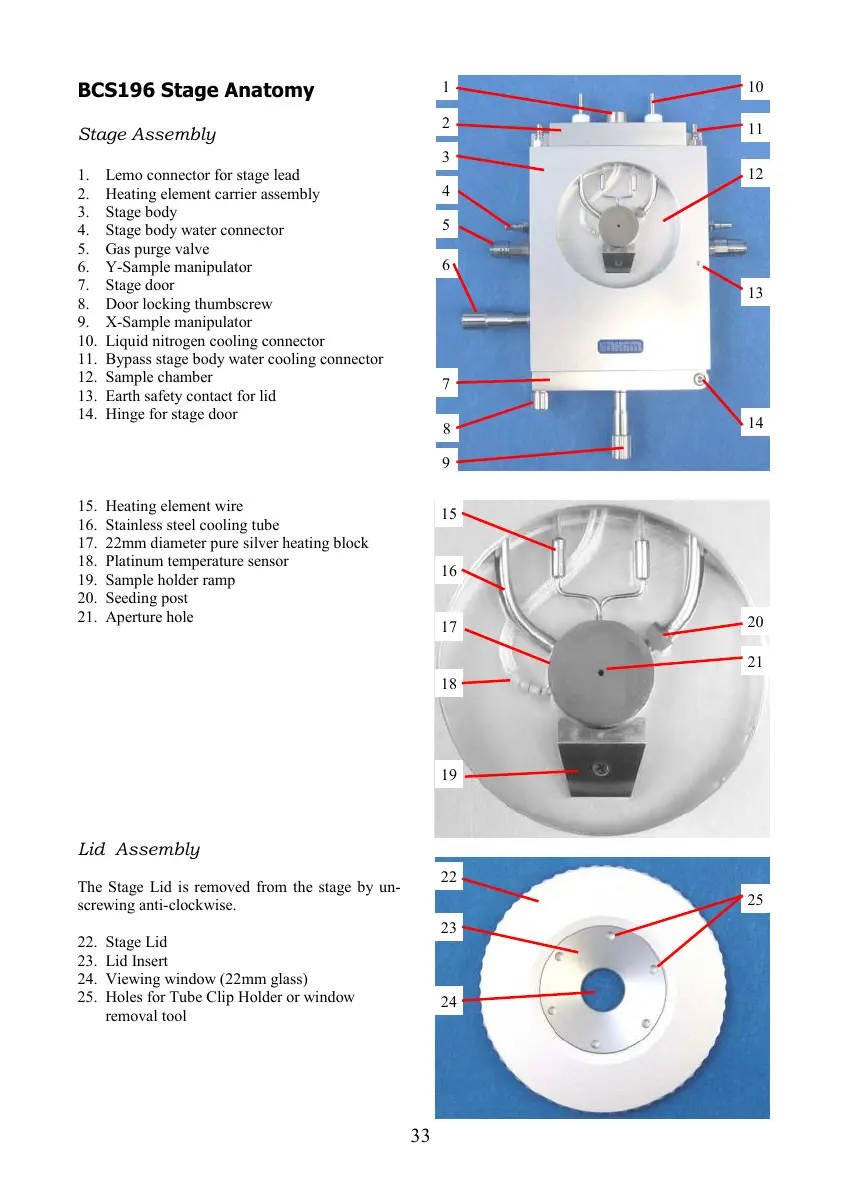

BCS196 Stage Anatomy
Stage Assembly
1. Lemo connector for stage lead
2. Heating element carrier assembly
3. Stage body
4. Stage body water connector
5. Gas purge valve
6. Y-Sample manipulator
7. Stage door
8. Door locking thumbscrew
9. X-Sample manipulator
10. Liquid nitrogen cooling connector
11. Bypass stage body water cooling connector
12. Sample chamber
13. Earth safety contact for lid
14. Hinge for stage door
15. Heating element wire
16. Stainless steel cooling tube
17. 22mm diameter pure silver heating block
18. Platinum temperature sensor
19. Sample holder ramp
20. Seeding post
21. Aperture hole
Lid Assembly
The Stage Lid is removed from the stage by un-
screwing anti-clockwise.
22. Stage Lid
23. Lid Insert
24. Viewing window (22mm glass)
25. Holes for Tube Clip Holder or window
removal tool
1
2
3
5
6
7
11
8
9
13
4
10
15
16
18
19
20
12
21
22
23
25
24
17
14
