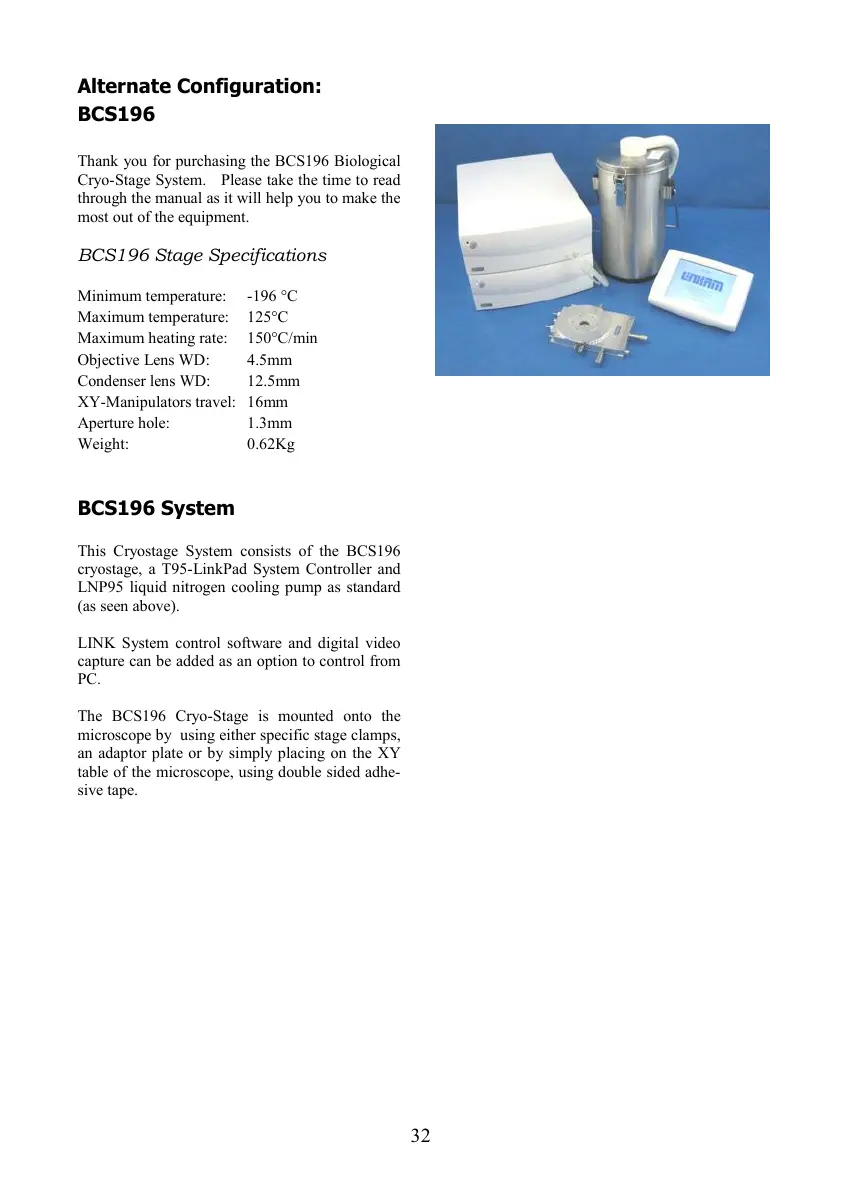

Alternate Configuration:
BCS196
Thank you for purchasing the BCS196 Biological
Cryo-Stage System. Please take the time to read
through the manual as it will help you to make the
most out of the equipment.
BCS196 Stage Specifications
Minimum temperature: -196 °C
Maximum temperature: 125°C
Maximum heating rate: 150°C/min
Objective Lens WD: 4.5mm
Condenser lens WD: 12.5mm
XY-Manipulators travel: 16mm
Aperture hole: 1.3mm
Weight: 0.62Kg
BCS196 System
This Cryostage System consists of the BCS196
cryostage, a T95-LinkPad System Controller and
LNP95 liquid nitrogen cooling pump as standard
(as seen above).
LINK System control software and digital video
capture can be added as an option to control from
PC.
The BCS196 Cryo-Stage is mounted onto the
microscope by using either specific stage clamps,
an adaptor plate or by simply placing on the XY
table of the microscope, using double sided adhe-
sive tape.
