Introduction
Thank you for purchasing the THMS600 Heating
and Freezing stage system. Please take the time to
read through the manual as it will help you to
make the most out of the equipment.
THMS600 Stage Specifications
Maximum temperature: 600°C
Minimum temperature: -196 °C with LNP95
Maximum heating rate: 150°C/min
Objective Lens WD: 4.5mm
Condenser lens WD: 12.5mm
XY-Manipulators travel: 16mm
Aperture hole: 2mm
Weight: 0.62Kg
THMS600 System
The system consists of a THMS600 stage, a T95
System Controller and optional LNP95 liquid
nitrogen cooling pump.
LINK System control software and digital video
capture can be added as an option to control from
PC.
The THMS600 stage is mounted onto the micro-
scope by using either specific stage clamps, an
adaptor plate or by simply placing on the XY
table of the microscope, using double sided adhe-
sive tape.

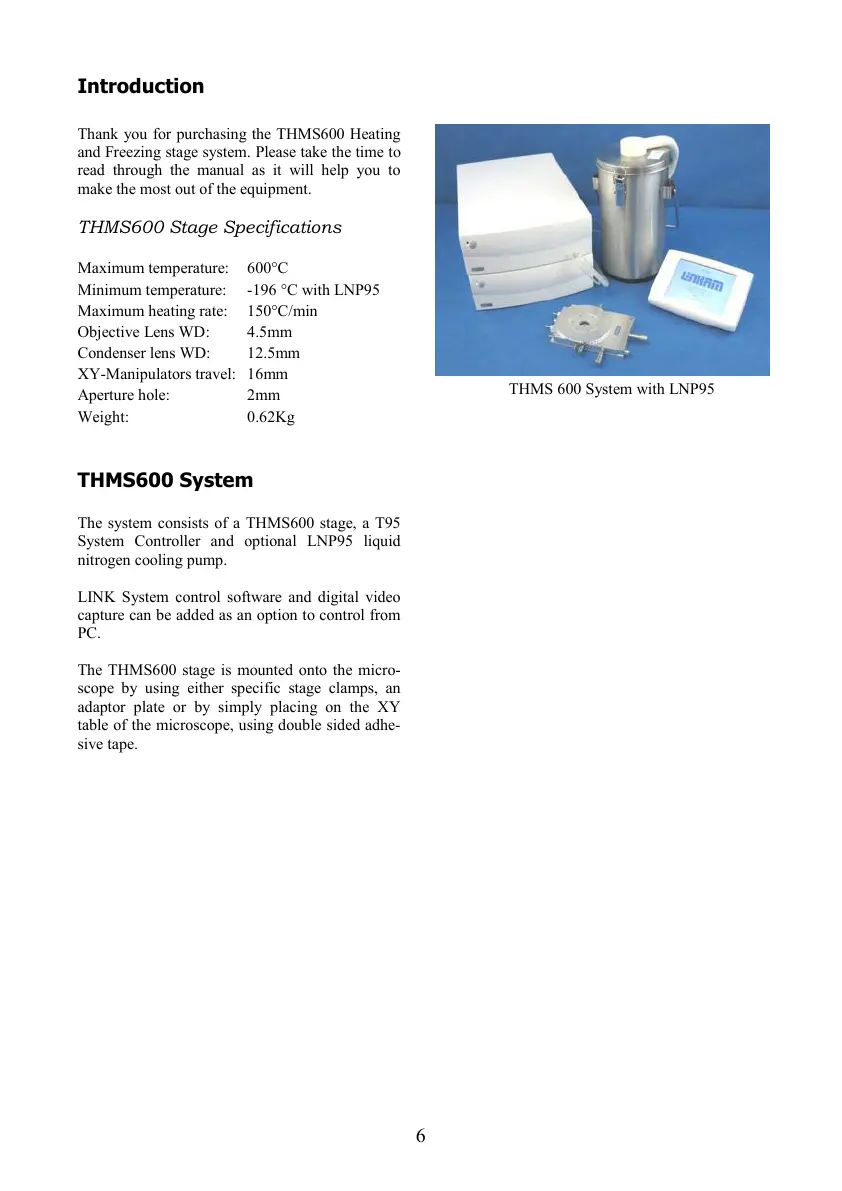

THMS 600 System with LNP95
