40

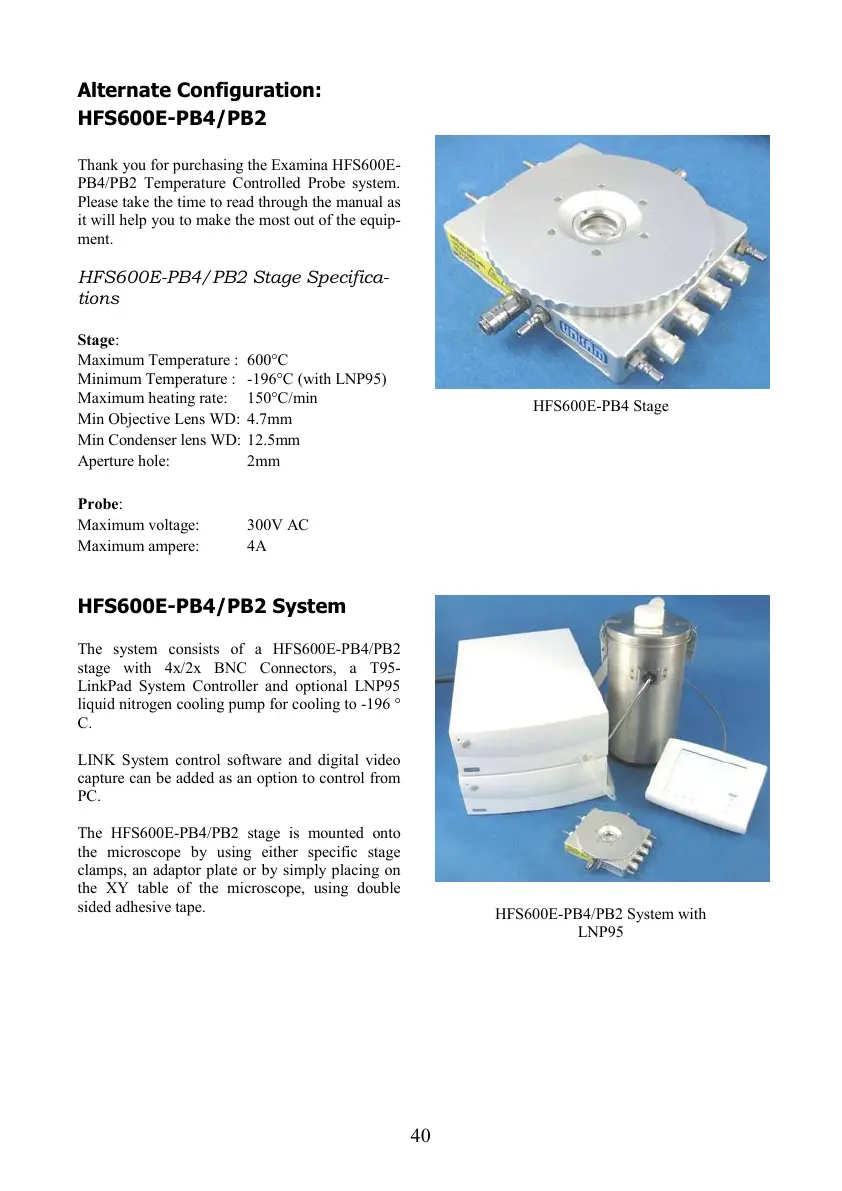

Alternate Configuration:
HFS600E-PB4/PB2
Thank you for purchasing the Examina HFS600E-
PB4/PB2 Temperature Controlled Probe system.
Please take the time to read through the manual as
it will help you to make the most out of the equip-
ment.
HFS600E-PB4/PB2 Stage Specifica-
tions
Stage:
Maximum Temperature : 600°C
Minimum Temperature : -196°C (with LNP95)
Maximum heating rate: 150°C/min
Min Objective Lens WD: 4.7mm
Min Condenser lens WD: 12.5mm
Aperture hole: 2mm
Probe:
Maximum voltage: 300V AC
Maximum ampere: 4A
HFS600E-PB4/PB2 System
The system consists of a HFS600E-PB4/PB2
stage with 4x/2x BNC Connectors, a T95-
LinkPad System Controller and optional LNP95
liquid nitrogen cooling pump for cooling to -196 °
C.
LINK System control software and digital video
capture can be added as an option to control from
PC.
The HFS600E-PB4/PB2 stage is mounted onto
the microscope by using either specific stage
clamps, an adaptor plate or by simply placing on
the XY table of the microscope, using double
sided adhesive tape.
HFS600E-PB4/PB2 System with
LNP95
HFS600E-PB4 Stage
