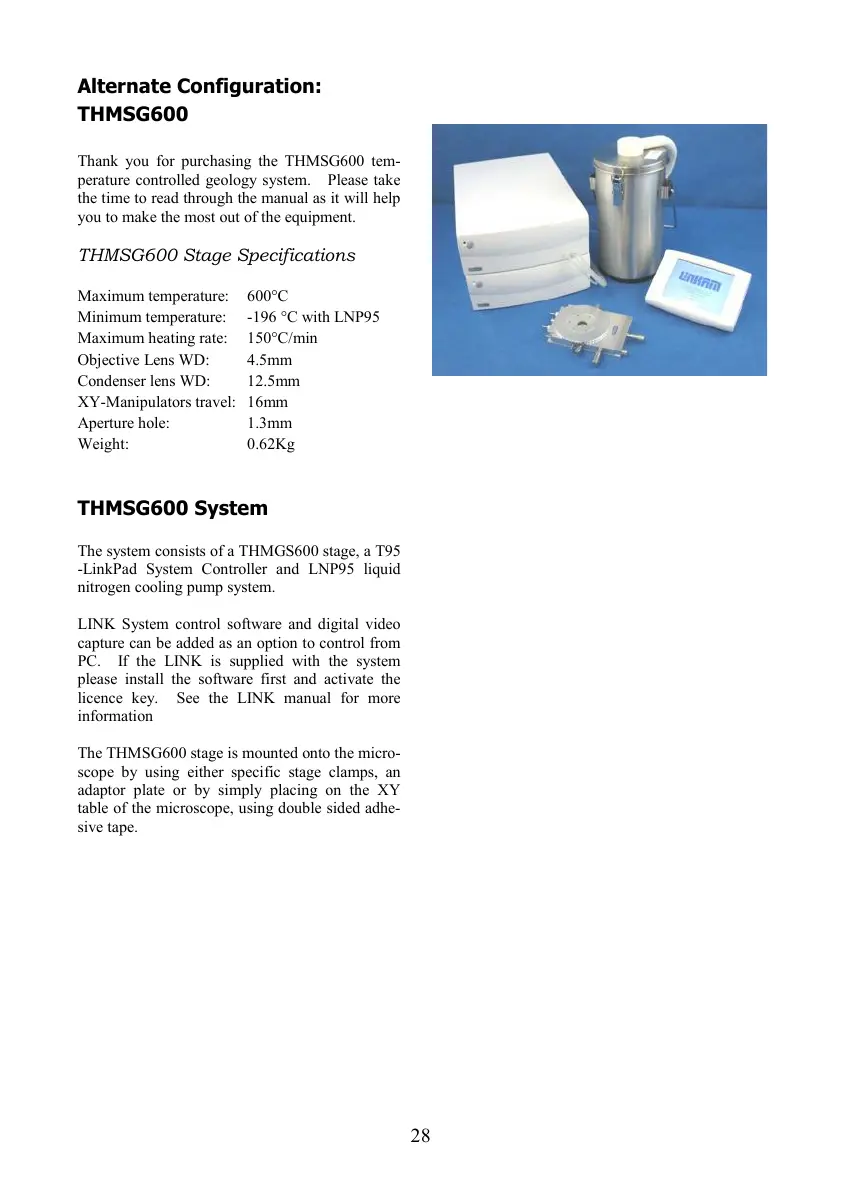

28
Alternate Configuration:
THMSG600
Thank you for purchasing the THMSG600 tem-
perature controlled geology system. Please take
the time to read through the manual as it will help
you to make the most out of the equipment.
THMSG600 Stage Specifications
Maximum temperature: 600°C
Minimum temperature: -196 °C with LNP95
Maximum heating rate: 150°C/min
Objective Lens WD: 4.5mm
Condenser lens WD: 12.5mm
XY-Manipulators travel: 16mm
Aperture hole: 1.3mm
Weight: 0.62Kg
THMSG600 System
The system consists of a THMGS600 stage, a T95
-LinkPad System Controller and LNP95 liquid
nitrogen cooling pump system.
LINK System control software and digital video
capture can be added as an option to control from
PC. If the LINK is supplied with the system
please install the software first and activate the
licence key. See the LINK manual for more
information
The THMSG600 stage is mounted onto the micro-
scope by using either specific stage clamps, an
adaptor plate or by simply placing on the XY
table of the microscope, using double sided adhe-
sive tape.
