36
Return Catch rotates and
locates within this slot.
Return Catch
Return catch in its
correct resting position.

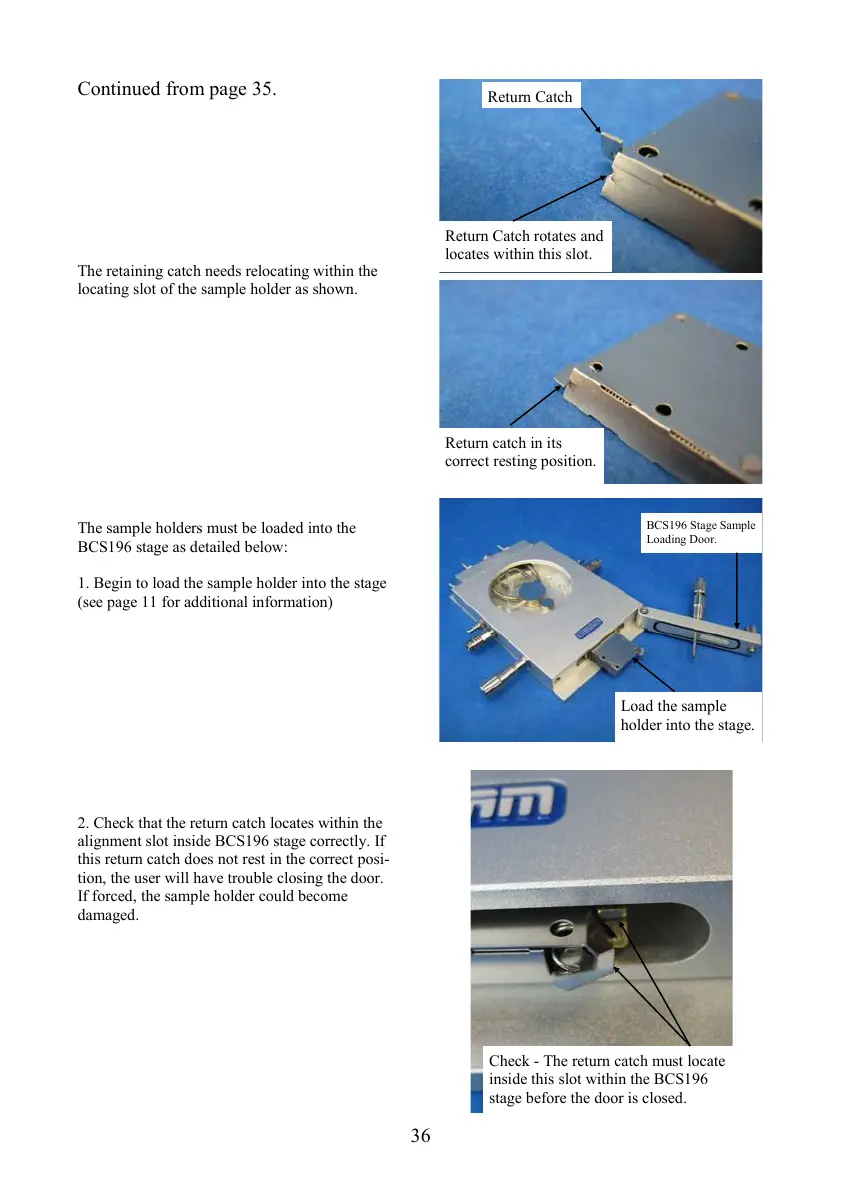

Continued from page 35.
The retaining catch needs relocating within the
locating slot of the sample holder as shown.
The sample holders must be loaded into the
BCS196 stage as detailed below:
1. Begin to load the sample holder into the stage
(see page 11 for additional information)
2. Check that the return catch locates within the
alignment slot inside BCS196 stage correctly. If
this return catch does not rest in the correct posi-
tion, the user will have trouble closing the door.
If forced, the sample holder could become
damaged.
Load the sample
holder into the stage.
Check - The return catch must locate
inside this slot within the BCS196
stage before the door is closed.
BCS196 Stage Sample
Loading Door.
To Next Page
