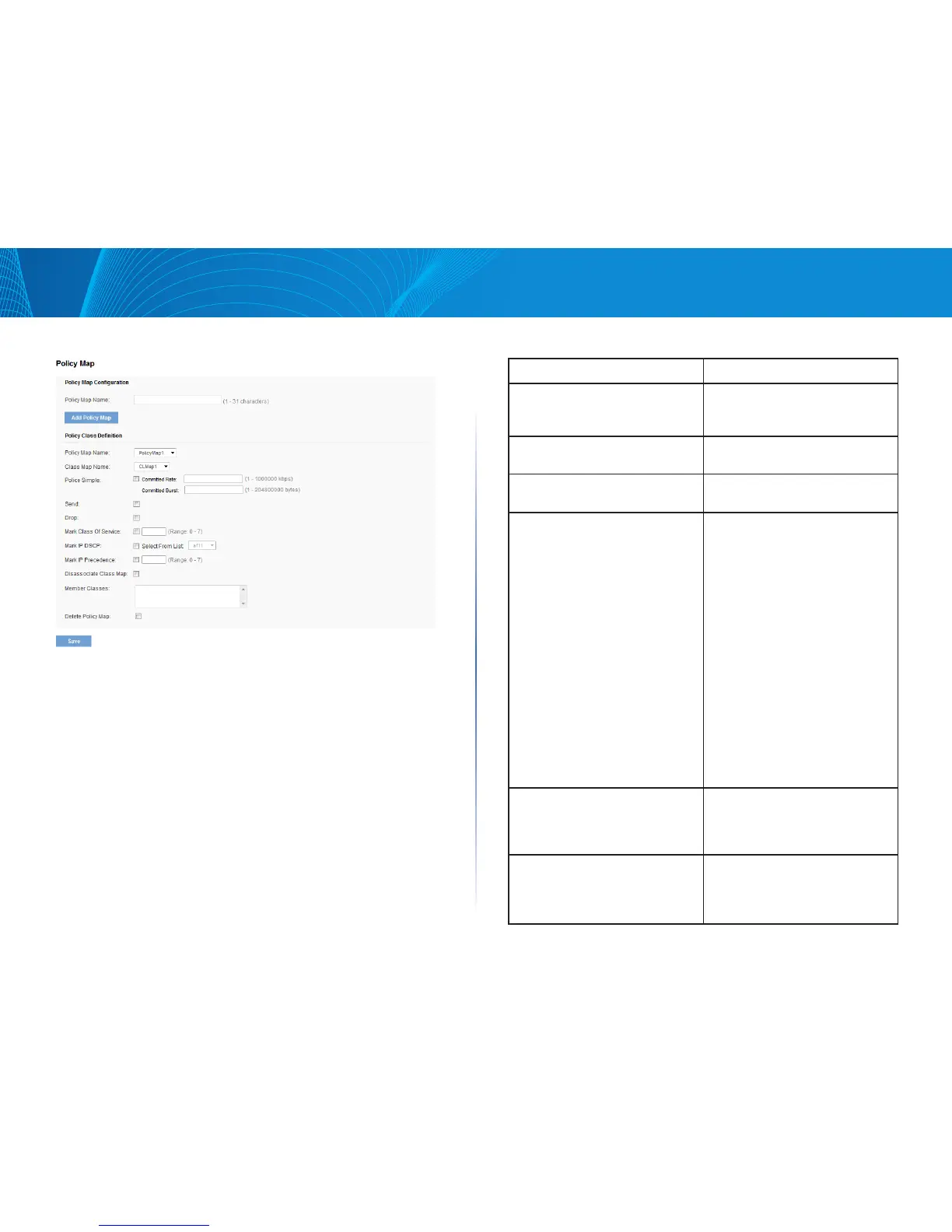

Figure 40: QoS DiffServ Policy Map Table 48: DiffServ Policy Map
Field Description
Policy Map Name Enter then name of the policy map to
add. The name can contain up to 31
alphanumeric characters.
Policy Map Name
(Policy Class Definition)
Select the policy to associate with a
member class.
Class Map Name Select the member class to associate
with this policy name.
Police Simple Select this option to establish the
traffic policing style for the class.
The simple form of the policing style
uses a single data rate and burst size,
resulting in two outcomes: conform
and nonconform.
Committed Rate
Enter the committed rate, in Kbps, to
which traffic must conform.
Committed Burst
Enter the committed burst size, in
bytes, to which traffic must conform.
Ideally, burst size should be 1.5 times
the committed rate (in bytes) for
Rate Limiting to work properly. For
example, if the committed rate is 1
Gbps, then the committed burst size
should be 187500000 bytes.
Send Select Send to specify that all packets
for the associated traffic stream are
to be forwarded if the class map
criterion is met.
Drop Select Drop to specify that all packets
for the associated traffic stream are to
be dropped if the class map criterion
is met.

Linksys LAPAC1750PRO Specifications

General

Modulation	-
VLAN support	Yes
Frequency band	2.4, 5 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1750 Mbit/s
Internal	No
Certification	FCC, CE, IC
Product color	White
Cable lock slot type	Kensington
Ethernet LAN (RJ-45) ports	2
Security algorithms	802.1x RADIUS, WEP, WPA, WPA2
Antenna gain level (max)	5.2 dBi
Input current	2 A
AC input voltage	12 V
Power consumption (typical)	24 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	10 - 85 %

Weight and Dimensions

Depth	238 mm
Width	247 mm
Height	43.3 mm
Weight	520 g
