Linksys LAPN300 User Manual

4. Configure the time zone, date and time for the device on System Settings screen.

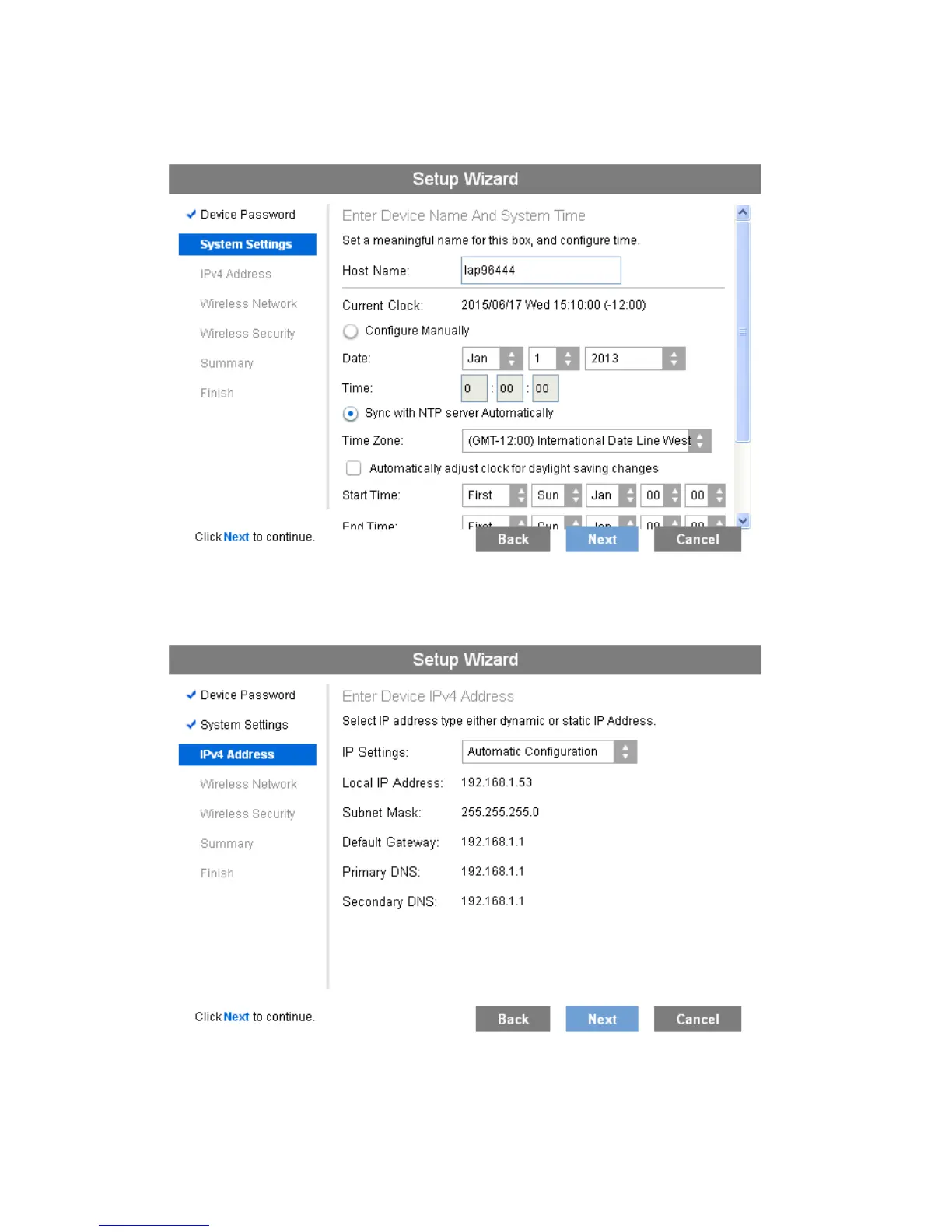

Figure 3: Setup Wizard - System Settings
5. On the IPv4 Address screen (Figure 4) configure the IP address of the device then click Next.
Figure 4: Setup Wizard - IPv4
11

Linksys LAPN300 Specifications

General

Color	multi, white
Wi-Fi Speed	300 gigabits per second
Frequency Band	2.4 ghz
QoS Traffic Prioritization	no
Wireless Standard	n
Data Encryption	yes
Encryption Type	other, wep, wpa, wpa2
Security Features	rogue ap detection; ssid to vlan mapping; 802.1x supplicant
Ports	rj-45
Bluetooth	no

Weight and Dimensions

Height	1.72 inches
Width	9.33 inches
Net Weight	1.08 pounds
