Linksys RE7000 User Manual

25

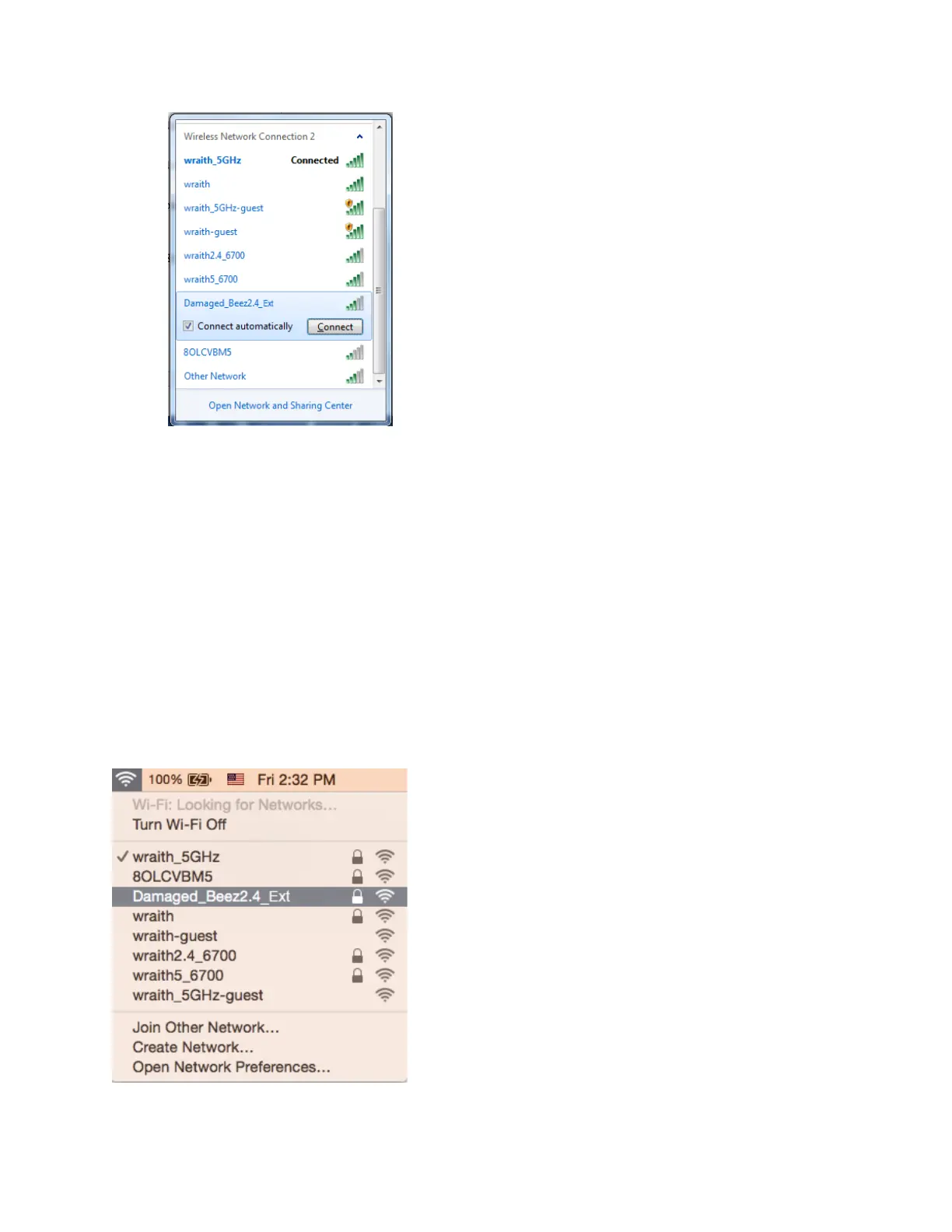

3. If you are prompted to enter a network security key, type your password ( s ecurity key) into
the network s ecurity key eld. Click OK .
4. Your computer will connect to the extended network, and you sho uld be able to access the
range extender’s settings interface .
*Depending on your version of Windows, there could be some dierences in wording or ico ns in
these steps.
To x the problem on Mac computers, do the follo
wing:
1. In the menu bar across the top of the screen, click the Wi -Fi icon. A list of wireless networks
will appear.
2. In the example below, the computer was connected to another wireless network named
wraith_5GHz . Your extended network name , Damaged_Beez2.4_Ext in this example, is
shown selected.

Linksys RE7000 Specifications

General

Type	Network repeater
Ethernet LAN	Yes
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum transfer distance	900 m
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi data rate (max)	1900 Mbit/s
Ethernet LAN (RJ-45) ports	1

Weight and Dimensions

Depth	81 mm
Width	126 mm
Height	46 mm
Weight	255 g
