Linksys RE7000 User Manual

4

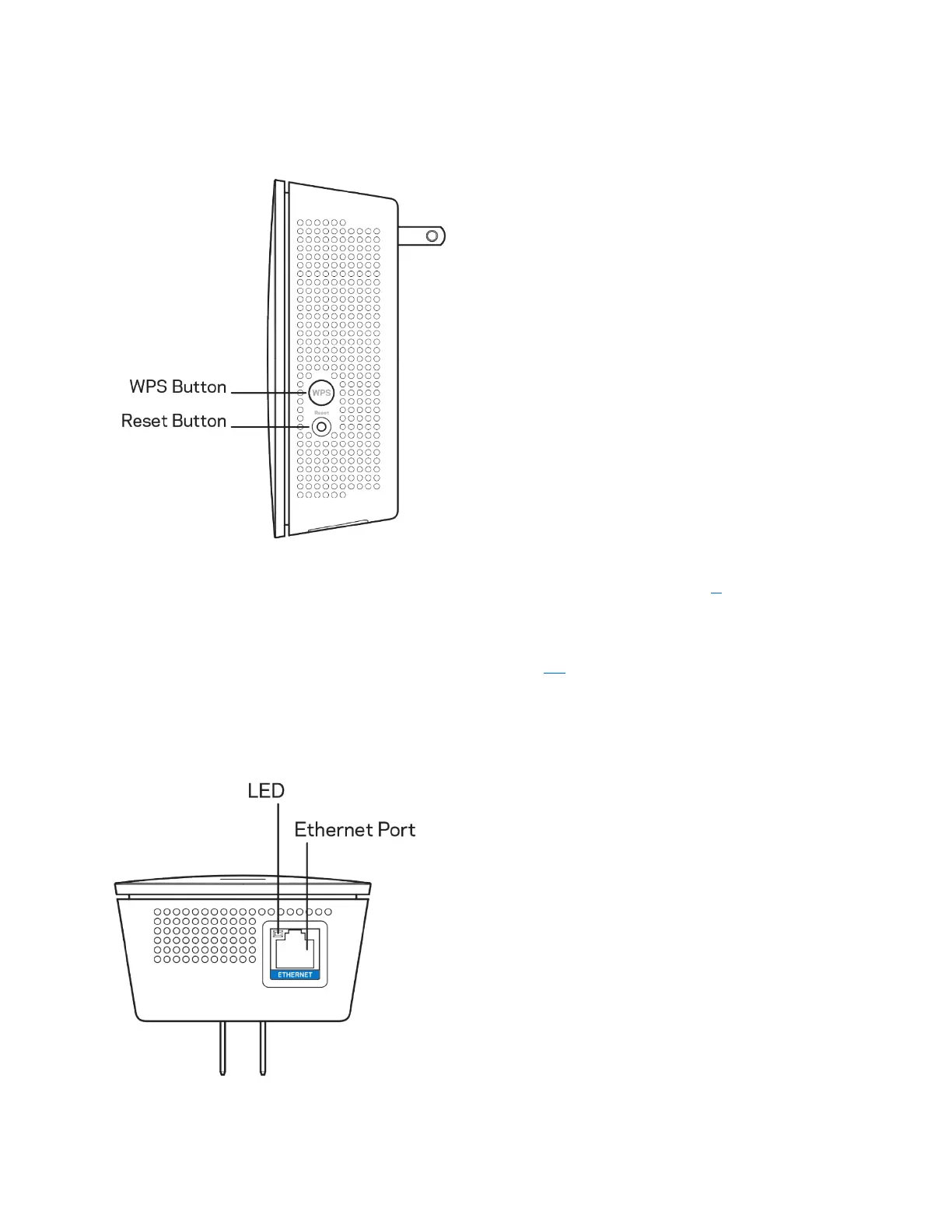

Side view
WPS™ Button —Use Wi -Fi Protected Setup to automatically and securely add compatible wireless
devices to your network with Push Button Connect . Refer to Using WPS on page 6 .
Reset Button —Press and hold until the power light on the front of the range extender blinks to
reset to factory defaults. You can also restore the defaults from the Administration > Factory
Defaults s creen in the extender’s settings interface ( page 19
).
Bottom view
LED —The LED conrms an Ethernet connection to the main router.

Linksys RE7000 Specifications

General

Type	Network repeater
Ethernet LAN	Yes
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum transfer distance	900 m
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi data rate (max)	1900 Mbit/s
Ethernet LAN (RJ-45) ports	1

Weight and Dimensions

Depth	81 mm
Width	126 mm
Height	46 mm
Weight	255 g
