Linksys RE7000 User Manual

26
3. Click the extended network name of your range extender (Damaged_Beez2.4_Ex t in the
example).
4. Type your wireless network password (Security Key) into the Password eld. Click OK
You have intermittent connection problems
Plug in the range extender midway between your router and the area without Wi -Fi. Be sure you
have at least 50 % of your router’s Wi -Fi signal at that point on the device you used for setup. If
you ha
ve two bars or lower, move closer to your router.

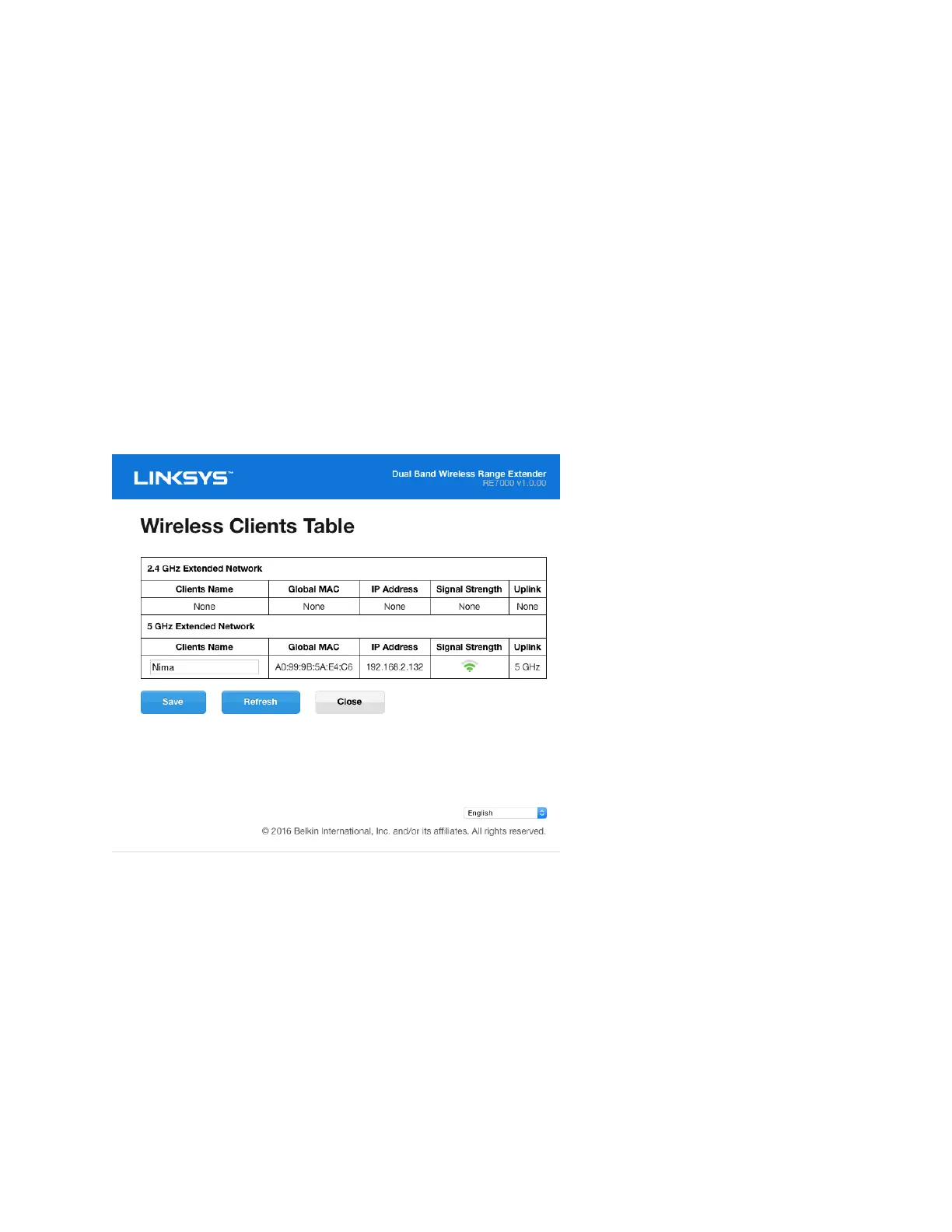

To check the signal strength for individual devices connected to the extended network, go to the
Status > WLAN Statis tics page in your extender settings and click Wireless Clients Table at the
bottom of the page.

Linksys RE7000 Specifications

General

Type	Network repeater
Ethernet LAN	Yes
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum transfer distance	900 m
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi data rate (max)	1900 Mbit/s
Ethernet LAN (RJ-45) ports	1

Weight and Dimensions

Depth	81 mm
Width	126 mm
Height	46 mm
Weight	255 g
