Chapter 4: Setting up and Mounting the Wireless-G Internet Camera
Setup Wizard
Wireless-G PTZ Internet Camera with Audio

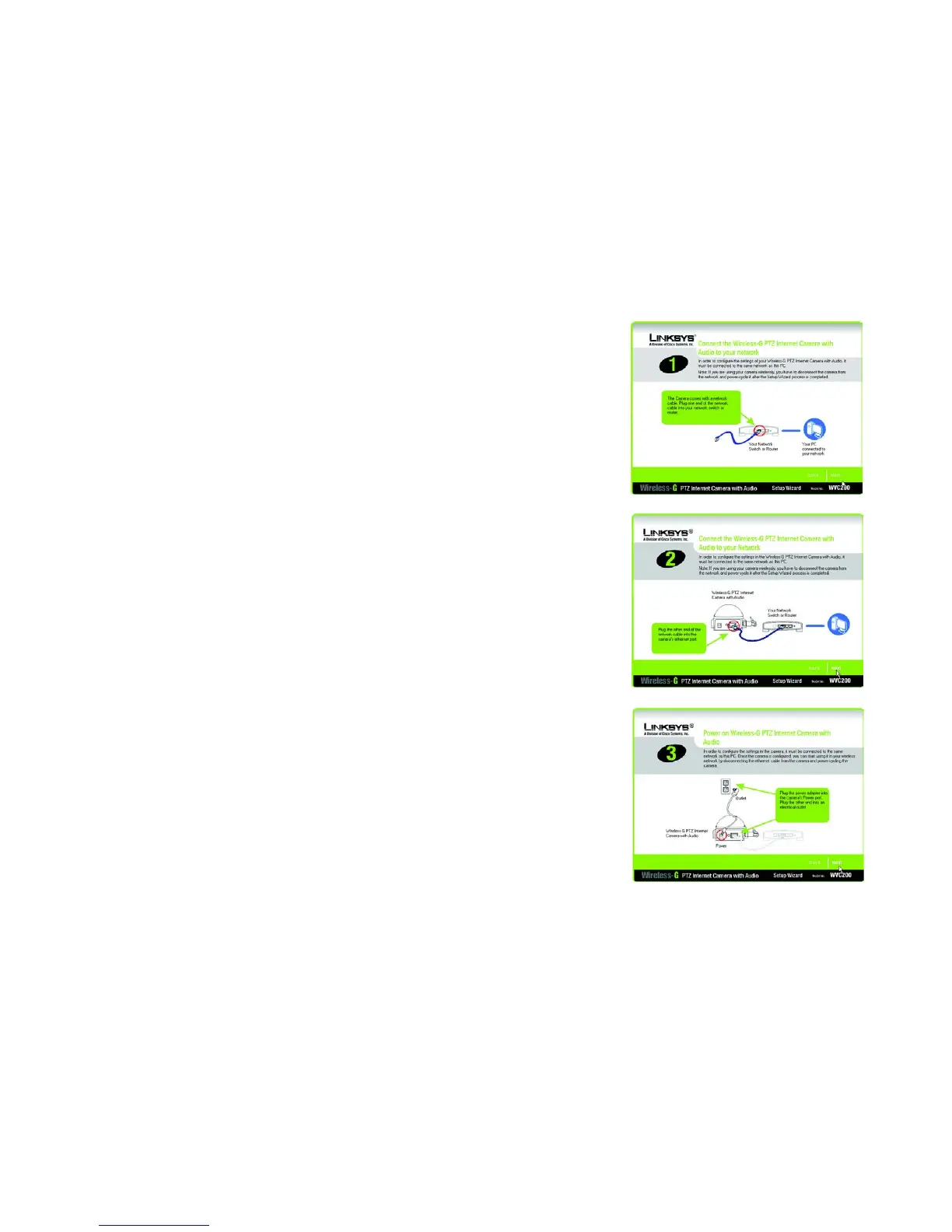

4. The next three screens show how to connect the Camera to your network, starting with connecting a network
cable to your network’s router or switch. Once you have done this, click Next.
5. Next, connect that network cable to the Camera’s RJ-45 port, as shown. Once you have done this, click Next.
6. Once that is done, connect the Camera’s power cable to the Camera’s power port, as shown. Once you have
done this, click Next.
Figure 4-4: Connect Network Cable to Camera
Figure 4-3: Connect Network Cable to Network
Figure 4-5: Connect Power to Camera
