Stabilizing System
By keeping the "EXTEND" switch (Fig. 1A) engaged for one to two seconds after the legs' footpads make
contact with the ground, the trailer will be stabilized and ready for use.
In the event the system shuts off while trying to stabilize the trailer, an in-line auto-reset circuit protection
has tripped and will reset within 10 seconds. This is an indication the PSX1 is not being used as intended and
is trying to lift too much weight.
NOTE: Make sure the stabilizer legs are fully retracted before moving the trailer.
Manual Override
The PSX 1 comes with a manual override system located on the stabilizer end opposite the electric motor
(Fig. 2A).
To manually operate the stabilizer:
1. Disconnect one of the wire leads from the motor to prevent backfeeding the motor.
2. Next, insert the
½
” diameter manual crank handle (PN #119226) (Fig. 3) over the coupler and pin at the
end of the stabilizer (Fig. 2A). The slot in the end of the crank handle (Fig. 3) accommodates the pin on
the coupler (Fig. 2A) to allow the manual extension/retraction of the stabilizer legs.
The gears can be stripped if the stabilizer legs are retracted/extended to the fullest extent and the operator
continues to rotate the manual override. Do NOT use a power tool to extend or retract stabilizers.
A

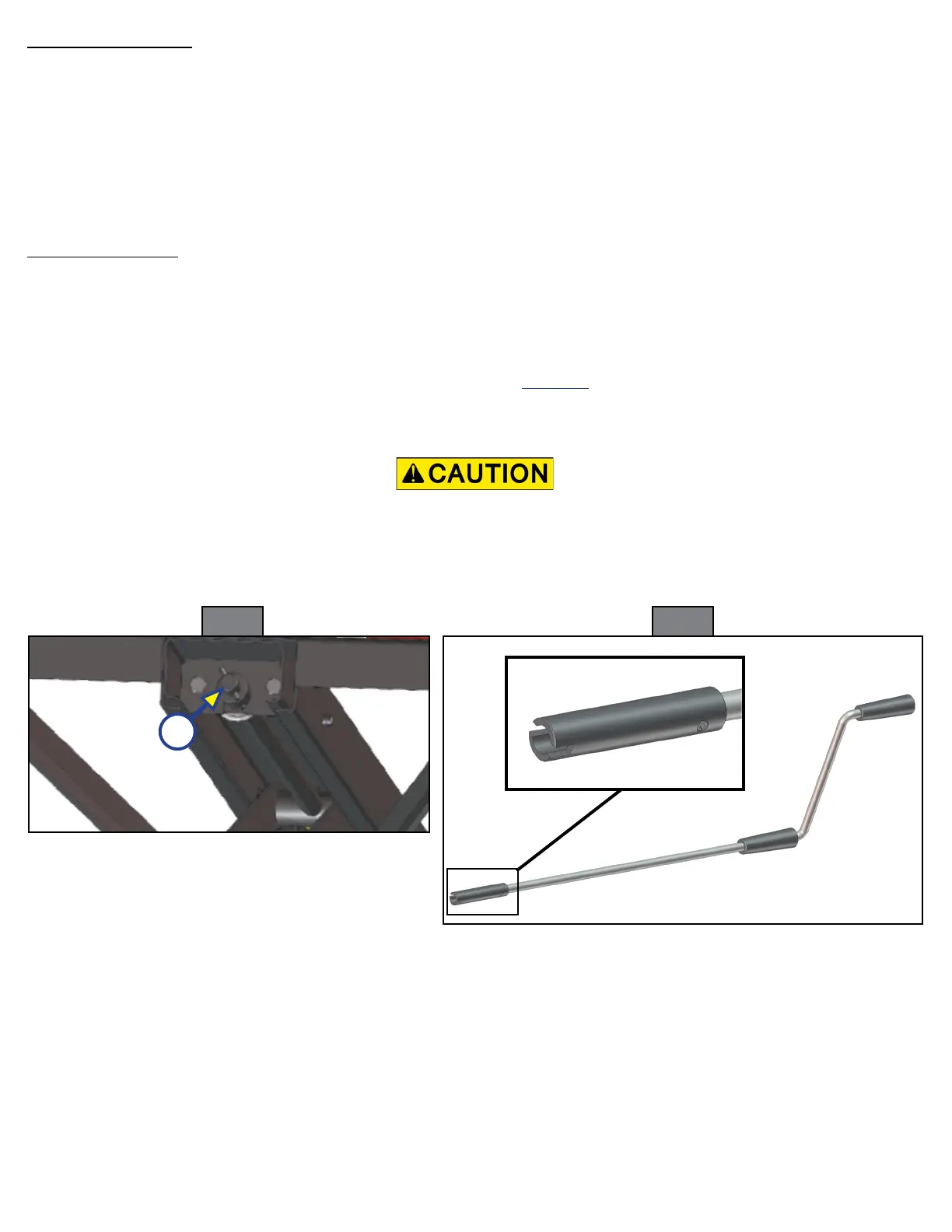

Fig. 2
Fig. 3
3. Rotate the crank handle clockwise to extend or counterclockwise to retract the stabilizer legs.
To Next Page
