Rev:11.08.19 Page 27 CCD-0001573-08

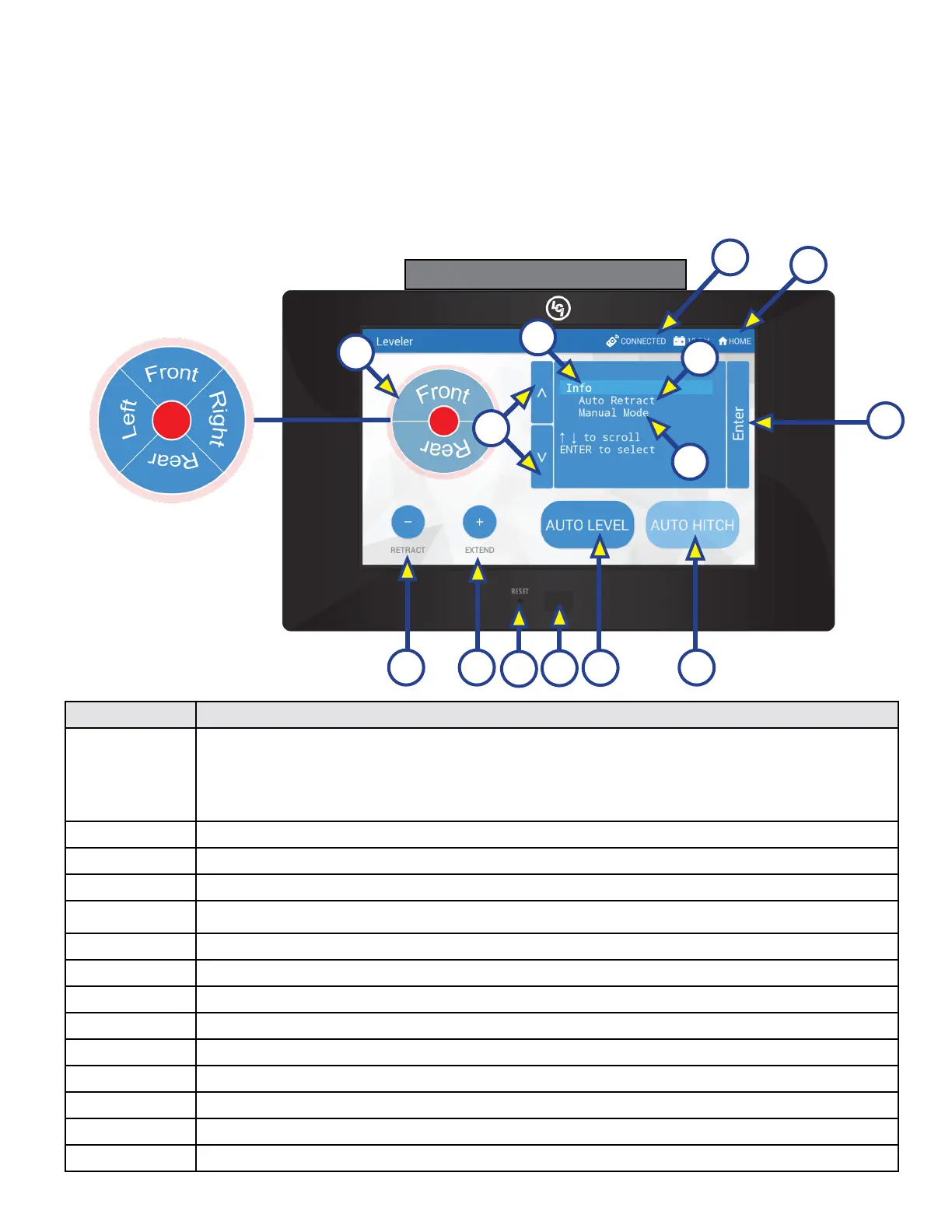

Touch Panel Diagram - OneControl Touch Panel
Callout Description
A
Jack Buttons - Select front, rear, right and left jacks to be operated depending on
mode. Jacks available to be operated will be highlighted in blue. The front jacks can
be extended/retracted in Standard Mode. Rear jacks can only be retracted from this
mode. In Manual Mode (Fig. 3), all jacks are available to be operated.
B Up and Down Arrows - Scrolls through options on screen.
C Info - Displays system information, e.g. angle, jack stroke or software version.
D Connected Icon - Press 6 times to program zero point/ wireless configurations.
E Home Icon - Returns screen to home page.
F Auto Retract - Enters Auto Retract mode. Choose to retract "All Jacks" or "Rear Jacks."
G Manual Mode - Enters Manual Mode to manually operate jacks.
H Enter - Push to select various modes.
I Retract - Retracts jacks in several modes. Jacks available will be highlighted in blue.
J Extend - Extends jacks in several modes. Jacks available will be highlighted in blue.
K Reset - Resets to factory default.
L Power Button - Turns touch panel on and off.
M Auto Level - Starts the Auto Level sequence.
N Auto Hitch - Returns trailer to previous hitch height for reconnecting to tow vehicle.
Fig. 2 - Leveling Standard Mode
A
F
G
I J
M
K
N
H
B
C
Jack Buttons
in Manual Mode
See Fig. 3
D
E
L
NOTE: If the front of the trailer was below level when the Auto Level process was initiated, the hitch recognition
feature will retract the rear jacks but will not retract the front jacks to lower the trailer to the initial hitch
height. This feature helps prevent injury and/or damage to anything underneath the trailer.
Connect tow vehicle and make sure trailer and hitch are connected and locked.
Press "RETRACT ALL." (Fig. 1F). System will immediately retract all jacks.
Use the quick release pins on the landing gear to manually return the inner jack leg to fully retracted
position.
