Lippert Components PSX2 User Manual

Rev:11.08.19 Page 42 CCD-0001573-08

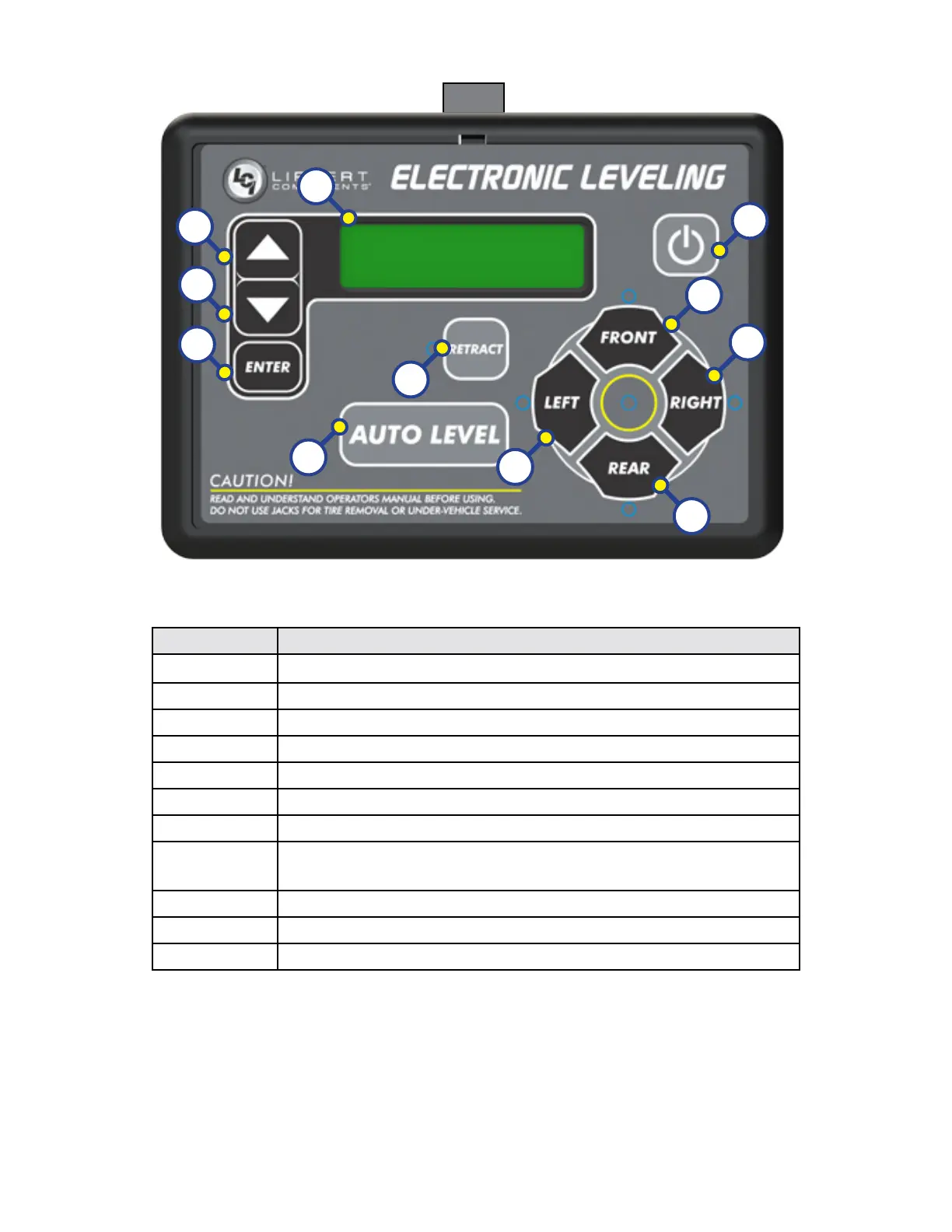

Touch Pad Diagram
Fig. 1
A
B
C
F
E
D
G
H
J
K
I
Callout Description
A Up Arrow - Scrolls up through the menu on LCD.
B Down Arrow - Scrolls down through the menu on LCD.
C Enter - Activates modes and procedures indicated on LCD.
D LCD Display - Displays procedures and results.
E Retract - Places leveling system into retract mode.
F Auto Level - Places leveling system into auto level mode.
G Power Button - Turns leveling system on and off.
H
Front Jack Button - Activates tongue jack in standard mode
- Activates front jacks in manual mode.
I Left Jack Button - Activates left jacks in manual mode.
J Right Jack Button - Activates right jacks in manual mode.
K Rear Jack Button - Activates rear jacks in manual mode.
