Rev:11.08.19 Page 153 CCD-0001573-08

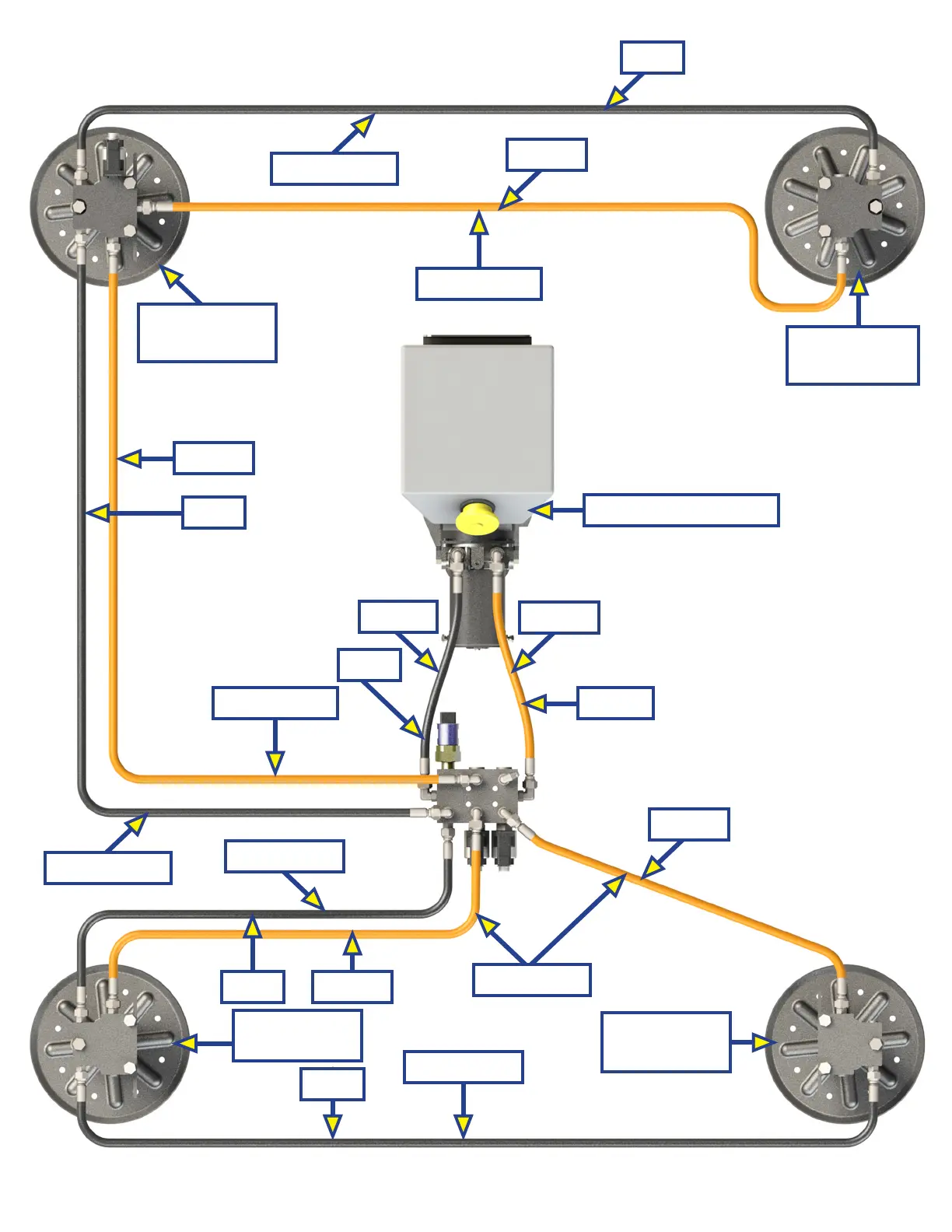

4-Point Hydraulic Diagram

Right Front

Landing Gear

Left Front

Landing Gear

Hydraulic Power Unit

Left Rear

Leveling Jack

Right Rear

Leveling Jack

Rear Extend

Rear Retract

Front Extend

Front Retract

Retract

Extend

Front Extend

Front Retract

Black

Orange

Black

Orange

Black Orange

Orange

Black

Default Chapter3
