Basic Jack Operation
While in Standard Mode:
1. Press "RETRACT" (Fig. 2I) or "EXTEND" (Fig. 2J) and "FRONT" (Fig. 2A) to retract or extend front jacks.
2. Press "RETRACT" and "REAR" to retract rear jacks.
3. Press the "AUTO LEVEL" (Fig. 2M) button to start the auto leveling sequence.
4. Press the "AUTO HITCH" (Fig. 2N) button to start the hitch recognition sequence when reconnecting to
the tow vehicle.
5. Use the "UP" or "DOWN" arrow (Fig. 2B) buttons to cycle through the menu screen options:
A. Info: Scroll to "INFO" (Fig. 2C) and press "ENTER" (Fig. 2H) button to display system information,
e.g., angle, jack stroke or software version.
B. Auto Retract: Scroll to "AUTO RETRACT" (Fig. 2F) and press the "ENTER" button. Choose either
"ALL JACKS" or "REAR JACKS." Press the "ENTER" button again to start the "Auto Retract" sequence.
C. Manual Mode: Scroll to "MANUAL MODE" (Fig. 2G) and press "ENTER" button to start Manual
Level operation.
NOTE: Upon entering Manual Mode, a tutorial on operating the jacks will appear on the screen. Press
"OK" to clear the tutorial. To delete the tutorial, click the "Don't show this again" box in the
bottom right of the screen.
I. Press "EXTEND" (Fig. 3F) or "RETRACT" (Fig. 3E) and "FRONT" (Fig. 3B) to operate front jacks.
II. Press "EXTEND" or "RETRACT" and "REAR" (Fig. 3D) to operate rear jacks.
III. Press "EXTEND" or "RETRACT" and "RIGHT" (Fig. 3C) to operate right jacks.
IV. Press "EXTEND" or "RETRACT" and "LEFT" ( Fig. 3A) to operate left jacks.
NOTE: To operate jacks individually, press "EXTEND" or "RETRACT" then press the “LEFT” (Fig. 3A) or “RIGHT”
(Fig. 3C) button while simultaneously pressing the “FRONT" (Fig. 3B) or "REAR” button (Fig. 3D),
depending on which jack needs to be operated.
NOTE: If the rear jacks will not operate individually using the method described above, but they operate
properly when Auto Level is performed, the Twist Prevention Protection system has locked out the
operation to prevent damage to the frame of the trailer.

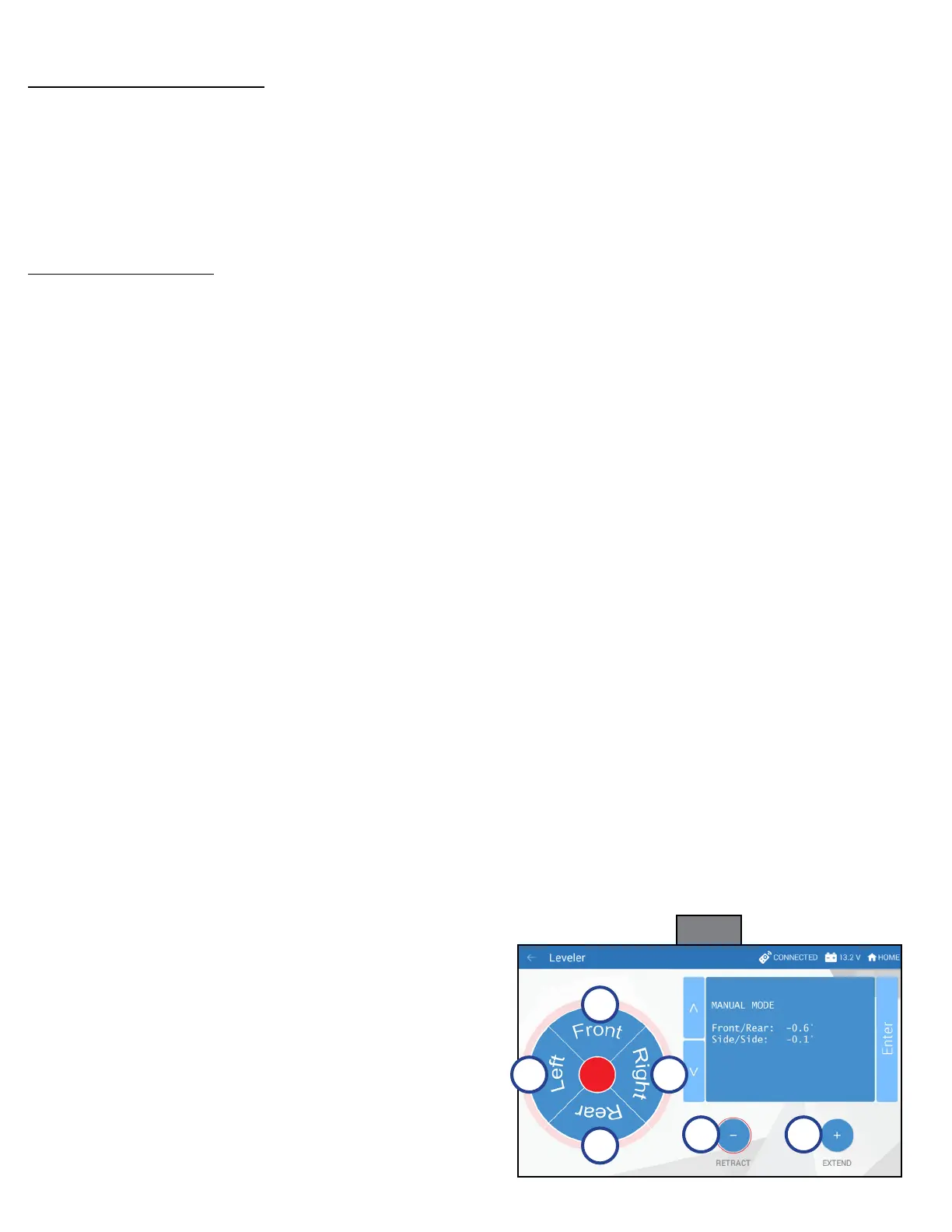

Operation - OneControl Touch Panel
Fig. 3
A
D
C
E F
B
Standard Mode and Menu
To reach Standard Mode (Fig. 2) for leveling:
1. Power on the OneControl Touch Panel (Fig. 2L).
2. Press "MyRV Control Panel" on the main screen.
3. Press the "Leveler" icon.
4. The screen will show the system menu (Fig. 2) for Standard Mode. The front jacks can be extended/
retracted in Standard Mode. Rear jacks can only be retracted from this mode.
To Next Page
