Installing the Awning Rail (if necessary)
Note: Awning rail not included.
1. Position the awning rail along the line where roof and wall meet OR:
A. For pitched awnings: A minimum of 11" above doors or windows
B. Foratawnings:Aminimumof4"abovedoorsorwindows
NOTE: Theawningrailmustbelevelandparallelwiththeoorlineoftheunit(Fig.1).
2. After determining the awning rail’s proper location, mark its position with a non-permanent method of marking.
3. Seal the back of the awning rail.
4. Align the awning rail on the wall and secure with #10 x 3/4" screws, using all fastener holes.

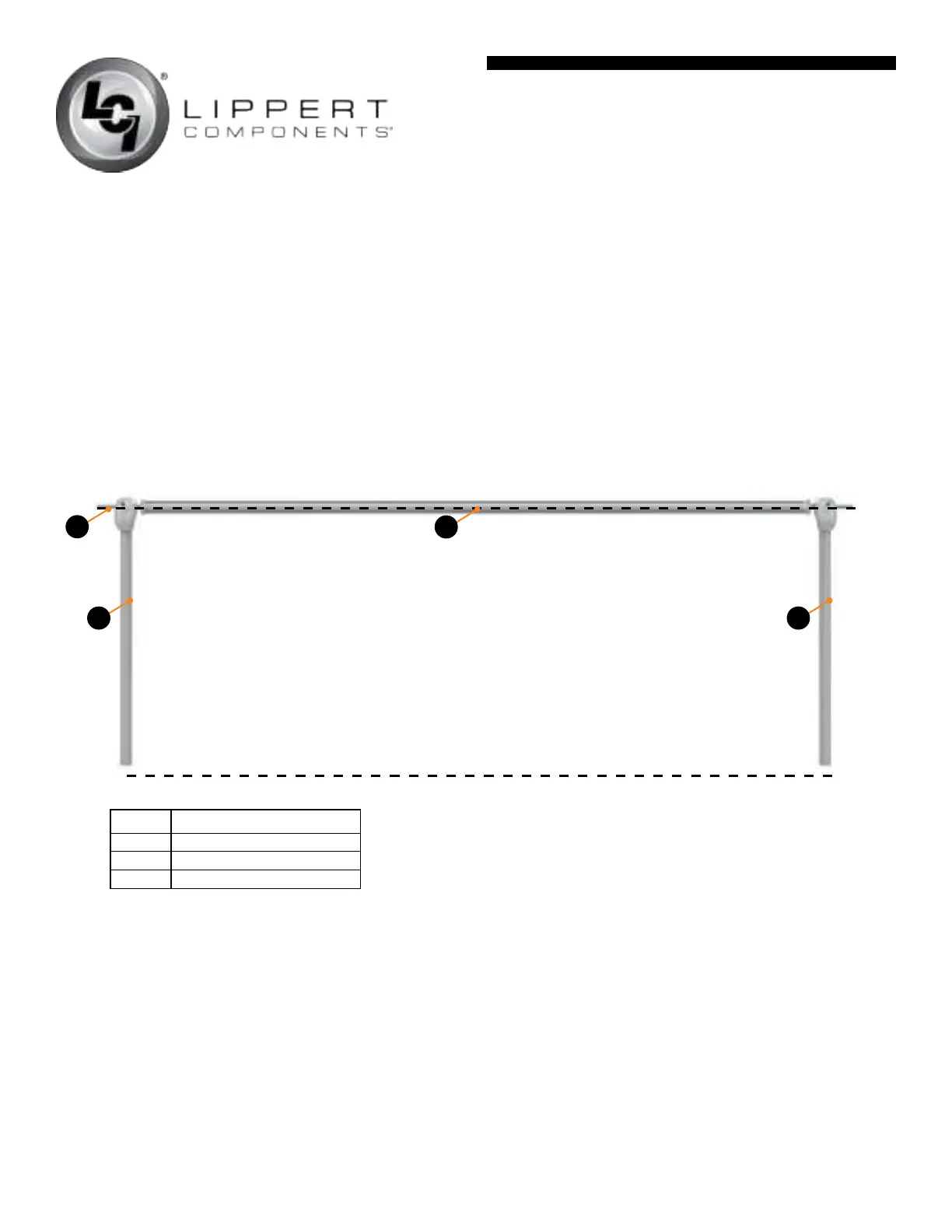

Fig.1
Floor Line
Front Facing View
A
B
C
B
Letter Description
A
Awning Rail
B
Support Arm Assembly
C
Roll Tube Assembly
