Lissmac CC401 E - Device Description; Machine Part Names

17/48
3.
DEVICE DESCRIPTION

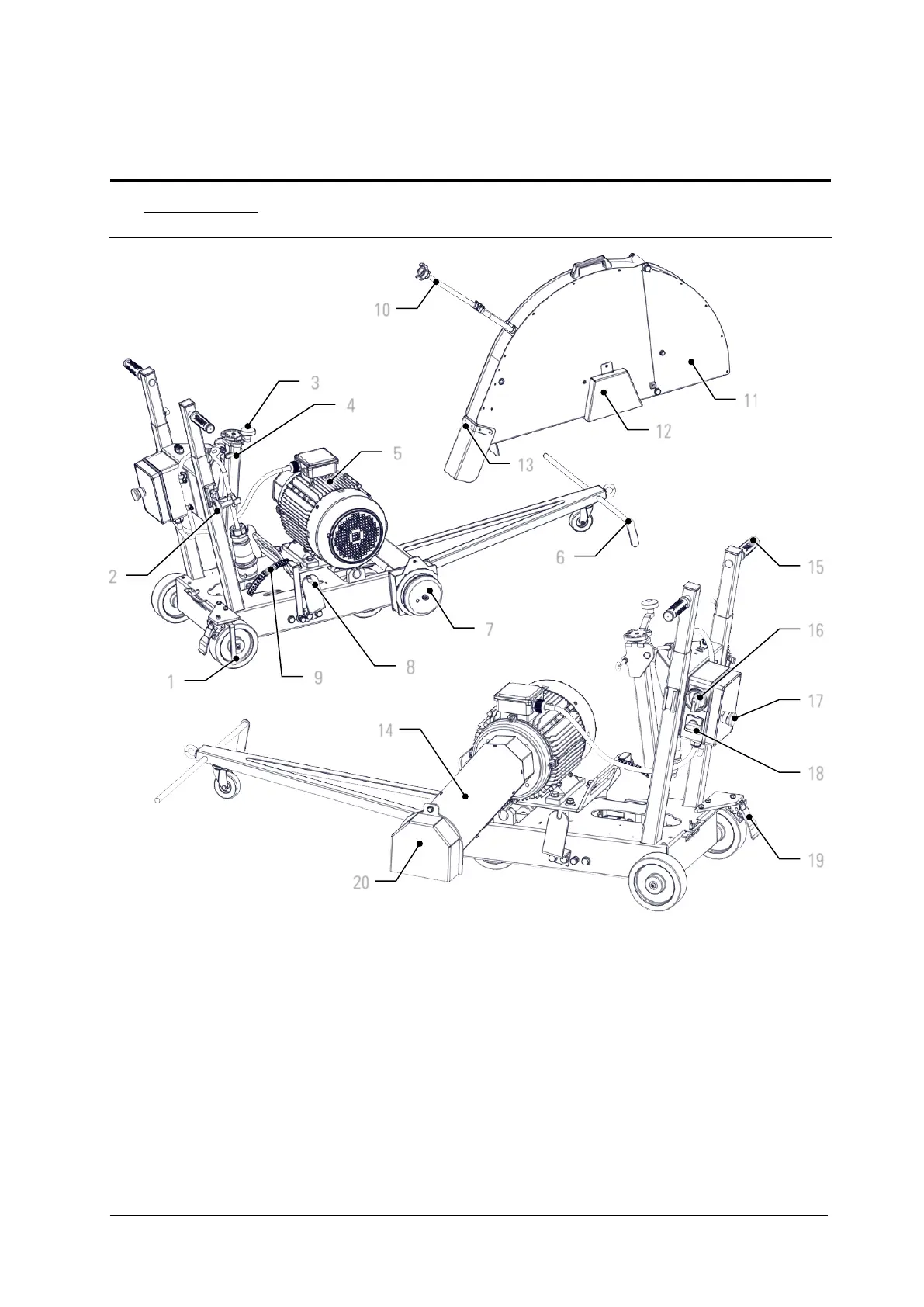

3.1. Machine part names
Item 1
Rear tracking pointer
Item 8 Guard mount Item 15 Handles, height-adjustable
Item 2
GEKA water connection
Item 9 Cutting depth indicator Item 16 Main switch
Item 3
Cutting depth adjustment
crank Item 10 Blade sprayer supply line Item 17 EMERGENCY STOP
Item 4
Cutting depth adjustment lock
Item 11 Hinged guard Item 18 Star-delta switch
Item 5
Electric motor
Item 12 Guard flange cover Item 19 Parking brake
Item 6
Front tracking pointer
Item 13 Spray guard Item 20 Flange cover
Item 7
Flange with pressure disc
Item 14 Water supply line
6
1
12
11
7
8
15
20
16
17
18
19
5
3
2
4
9
13
14
10
