Installing the saw blade
When installing the saw blade, make sure the surface of the blade is clean.
The saw blade must lie directly against the flange. Match the rotational direction of the saw blade to the
rotational direction arrow (down-cutting).
Procedure
To install/replace the saw blade, perform the following steps:
Activate the parking brake
Disconnect the power supply
Remove the blade guard/flange guard

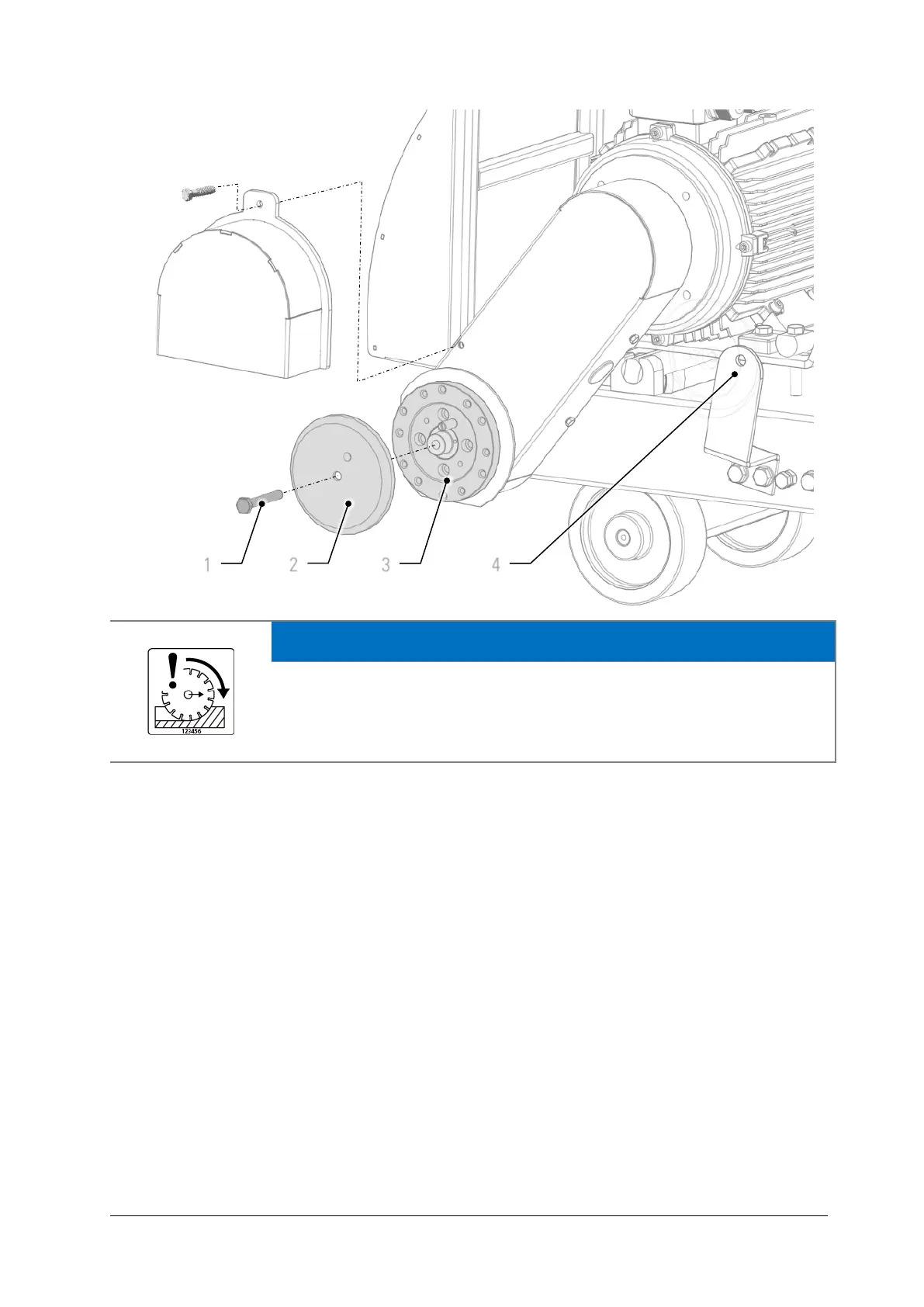

Loosen the bolt (Pos. 1) and remove the pressure disc (Pos. 2)
Clean all contact surfaces
Place the blade on the flange (Pos. 3) (pay attention to the rotational direction – down-cutting!)
Install the pressure disc and tighten it with the bolt
Install the saw blade guard and secure it to the holder (Pos. 4) with the screw
Attach the flange cover on the opposite side
Align the tracking pointer with the saw blade
1
2
3 4
