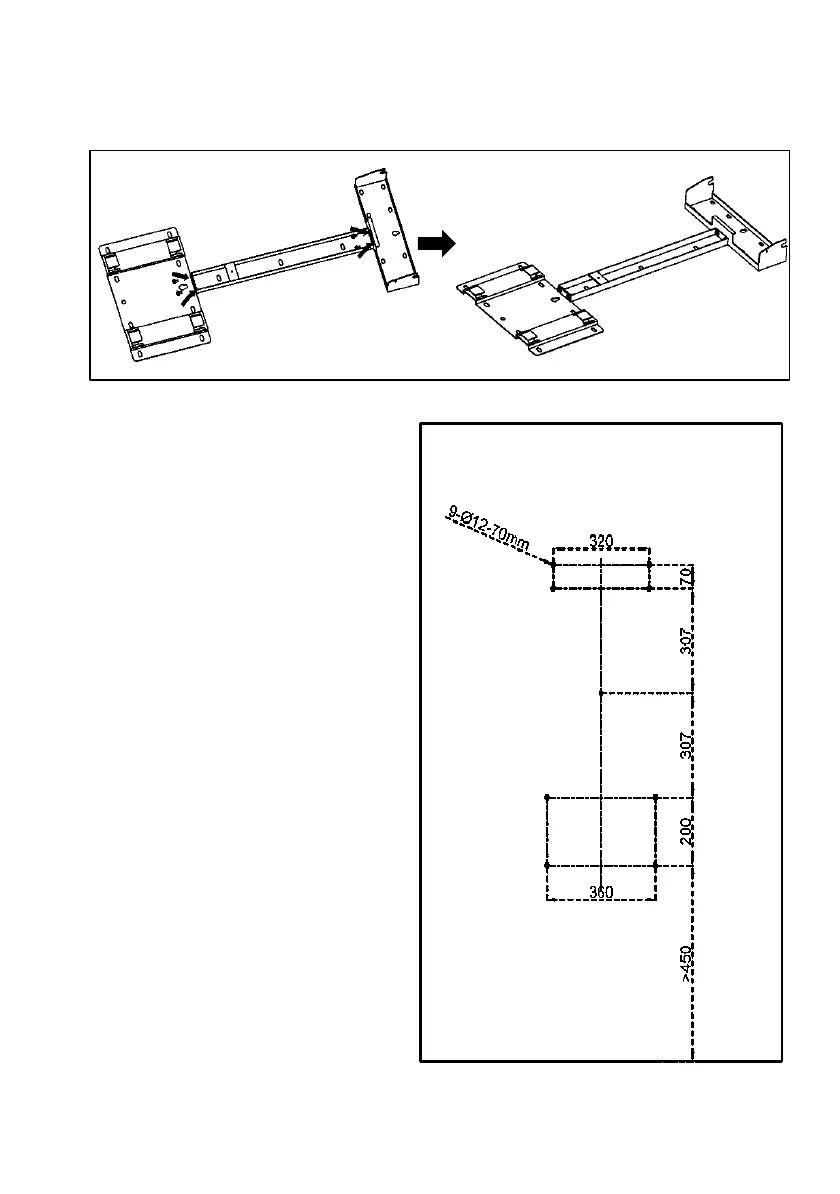

Step 3: Assemble the All-in-one Mounting Bracket
• Assemble the All-in-one Mounting Bracket with 4 screws as shown below.
Step 4: Anchor All-in-one Mounting Bracket
• Determine the positions for drilling
holes using the marking-off template,
and then mark the positions with a
marker.
• The height of the holes from the
ground should be ≥ 450mm
• Drill holes with driller (Drill bit: φ12),
make sure the holes are deep enough.
