CHAPTER 7: OPERATION 7-13
ALPHA 538/552
6.3. Replacement of the blades
The clamping blades (see above) must be replaced when worn out. To do this:
1. Unscrew the 4 fastening screws and remove the worn out clamping blades (A).

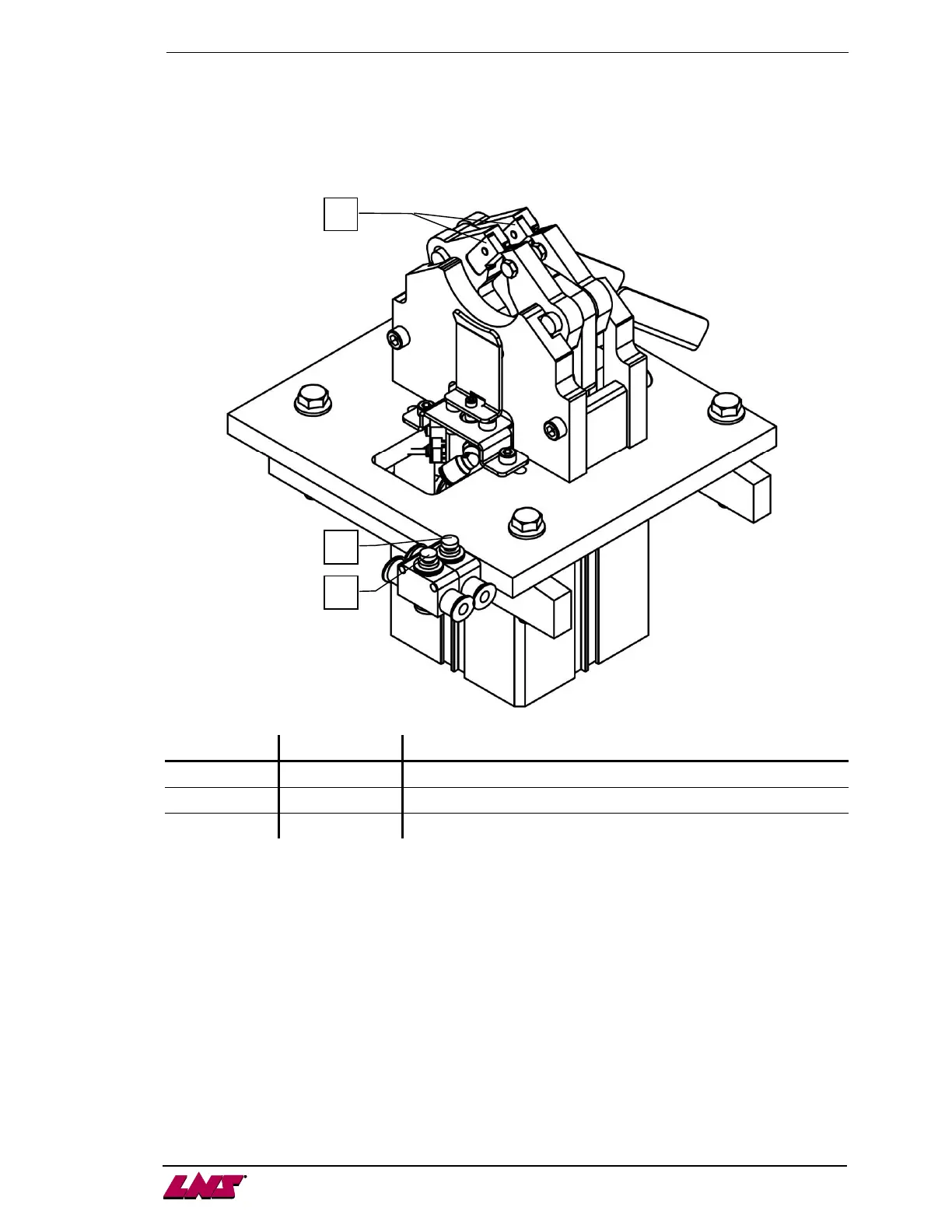

2. Install the new blade according to the drawing below, and secure them with the fastening screws
Designation Article No. Description
A X51.22.P010C Remnant extraction clamping blades
B C11130400 Adjustment for lifting of the extraction cylinder
C C11130400 Adjustment for lowering of the extraction cylinder
A
C
B
