CHAPTER 5: PNEUMATICS 5-4
ALPHA 538/552
3. PNEUMATIC VALVE BATTERY
3.1. Description
The pneumatic battery includes the control and monitoring elements of the bar feeder pneumatic circuit.

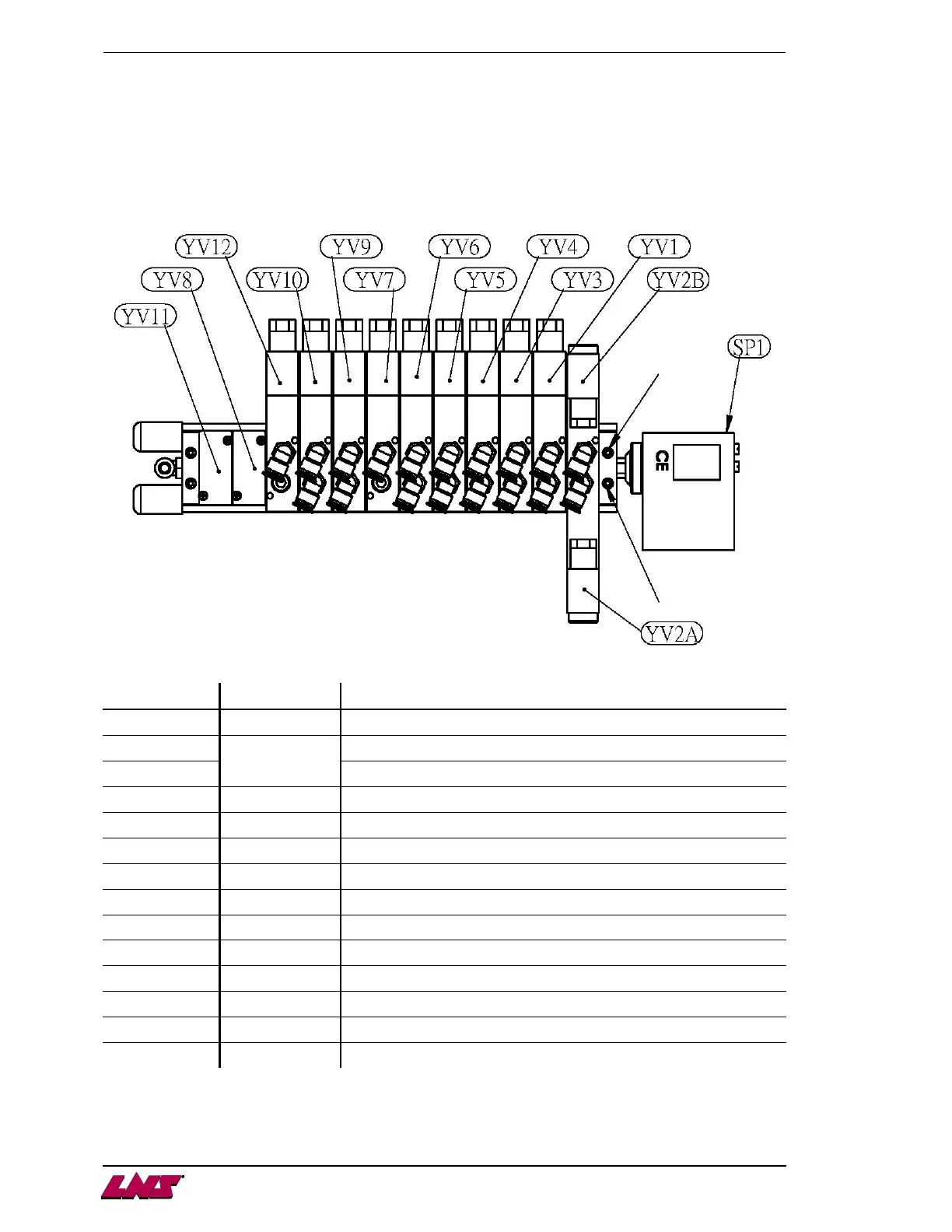

3.2. Layout of the elements
Designation Article no. Description
YV1 C11110100 Measurement device
YV2A
C11110210
Guiding channel opening
YV2B Guiding channel closing
YV3 C11110100 Guiding Channel locking
YV4 C11110100 Material clamping
YV5 C11110100 Material loading (bar selection)
YV6 C11110100 Material dropping fingers
YV7 C11110100 Air blast
YV8 C11110100 Front rest opening/closing
YV9 C11110100 Smart booster clutch engage/disengage
YV10 C11110100 Smart booster bar insert/extract
YV11 - <Reserved>
YV12 C11110100 Remnant ejection
SP1 C11121400 Air pressure switch
