CHAPTER 3: SETTING INTO OPERATION
3-7

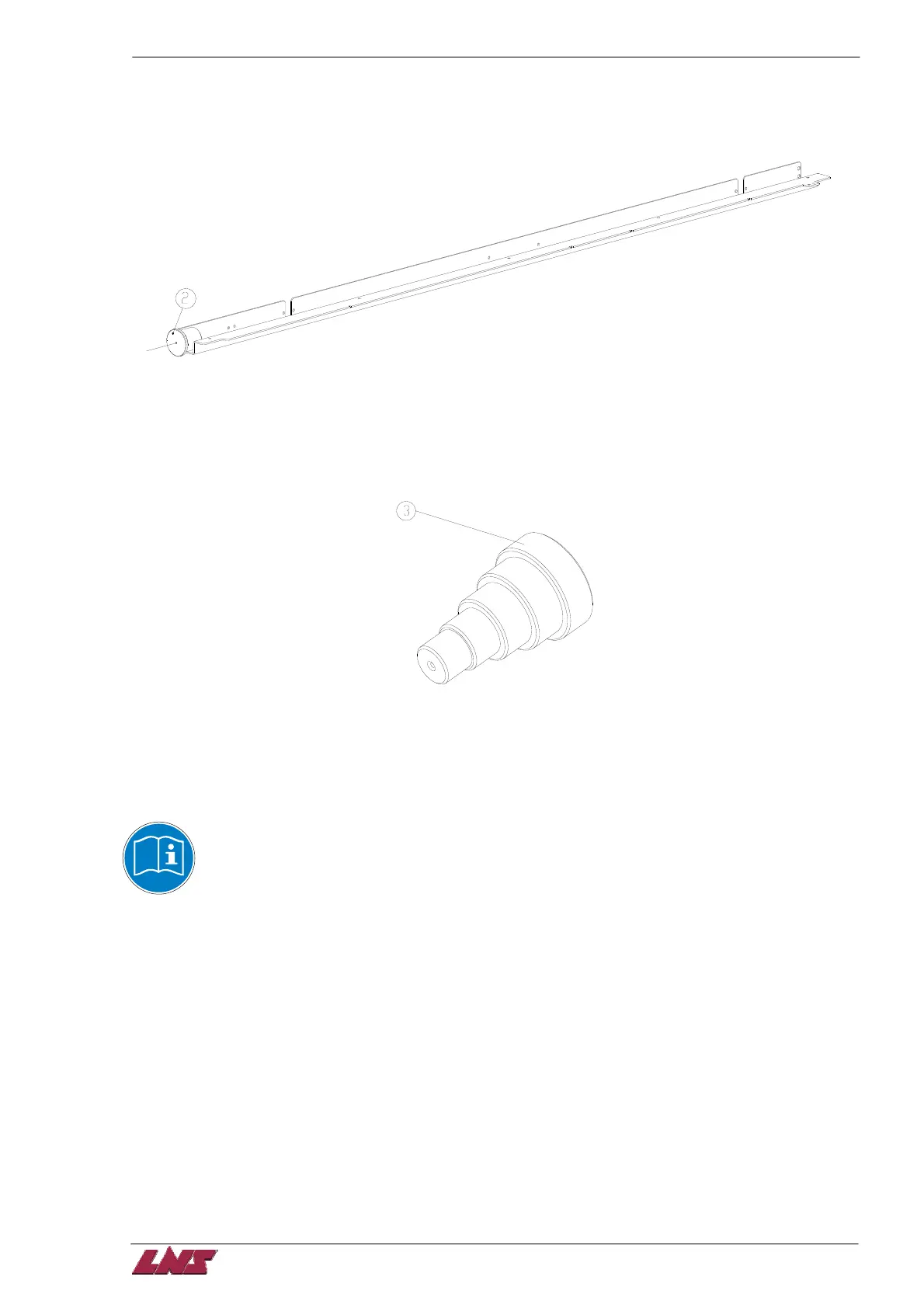

Step 6: Remove the PE channel, and install the alignment bushing. (Fig 3.8 #2)
Fig 3.8
Step 7: Clamp the bushing (Fig 3.9 #3) into the collet of the lathe.
Fig 3.9
Step 8: Pull the string through all the bushings.
Step 9: Finalize the alignment. The string must be center with the bushing and with the spindle. (back
side)
Check the position of the front stand looking at bushing. Check the position of the rear stand
looking at the back of the spindle.
Step 10: Tighten all the locking screws (Fig 3.6 #1, 2, 3) and re-check the alignment.
Step 11: Remove the string and bushing and reinstall the connecting parts. On swiss type lathes make
sure the headstock can move along the entire travel.
ALPHA ST 320
