CHAPTER 4: ELECTRICS
ALPHA ST 320
4-28
3. DIAGRAMS

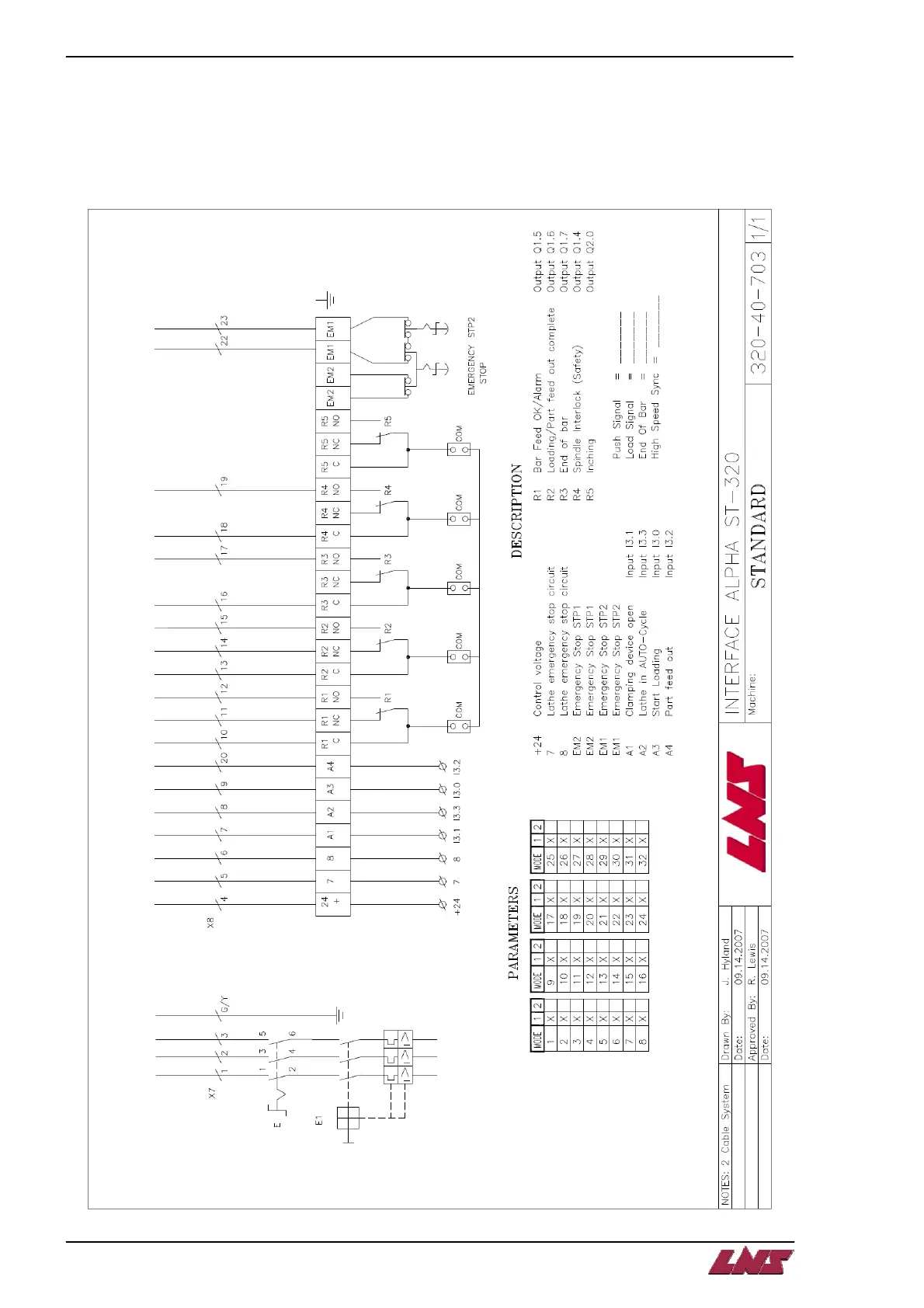

The interface diagram below is provided an example. The diagram corresponding to your bar feed system
is located in the electric cabinet, with the electric diagram.
