CHAPTER 7: GENERAL DESCRIPTION
ALPHA ST 320
7-3
In manual mode, move the pusher back to its home position and open the channel. (Fig 7.2)
Step 1: Take out the pusher (# 3).
Step 2: Remove the screw (# 1) to release the flag (# 2).
Step 3: Remove the screw (# 7) to release the pusher support (# 4).
Step 4: Replace the channels (# 5 & # 6).
Step 5: Lock in place the new support pusher (# 4) and the new flag (# 2).
Step 6: Insert the new pusher (# 3).

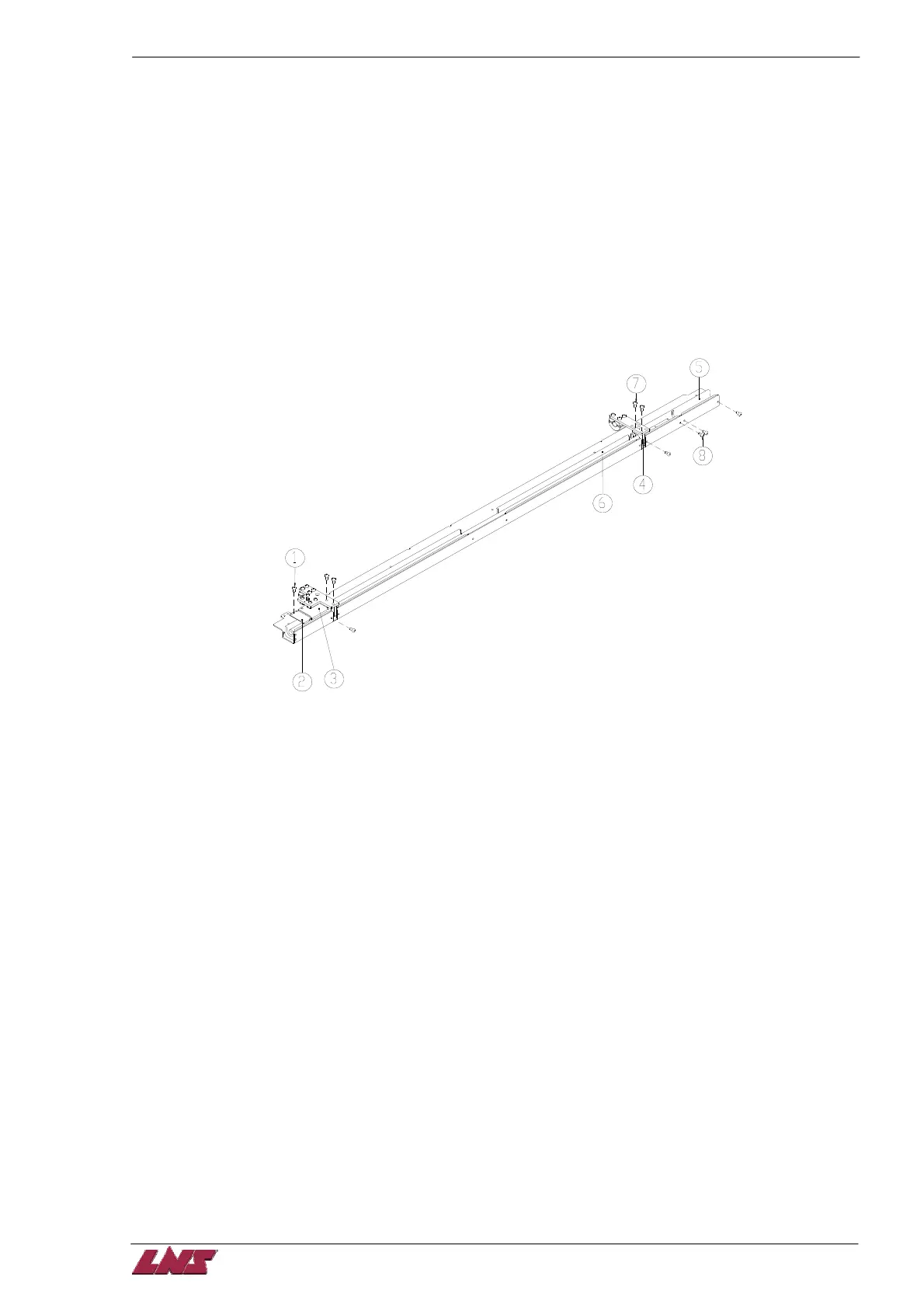

Fig 7.2
