Loewe Connect 26 LED - Connections Rear Side of the Device

11 -
english
1
Mains cable
2
HDMI 1 - HDMI input 1
3
HDMI 2 - HDMI input 2
4
PC IN - VGA/XGA input
5
AV - Euro-AV socket
6
LAN - Network connection
7
AUDIO IN - Audio input (analogue)
8
AUDIO DIGITAL OUT - Digital audio output
9
AUDIO DIGITAL IN - Digital audio input
10
CENTER IN - Centre audio input (analogue)
11
SERVICE - Service socket
12
ANT-TV - Antenna/cable analogue/digital
13
ANT SAT - Satellite antenna (Sat tuner)
(1
14
RS-232C - Serial interface
(1
15
CI-COMMON INTERFACE - Common Interface (CI slot)
16
USB - USB connection
17
- Headphones connection
18
AUDIO IN L - Audio in left (AVS)
19
AUDIO IN R - Audio in right (AVS)
20
VIDEO IN - Video in (AVS)
21
AVS - S-Video connection (AVS)
(1
Equipment and upgrade options, see page 97.

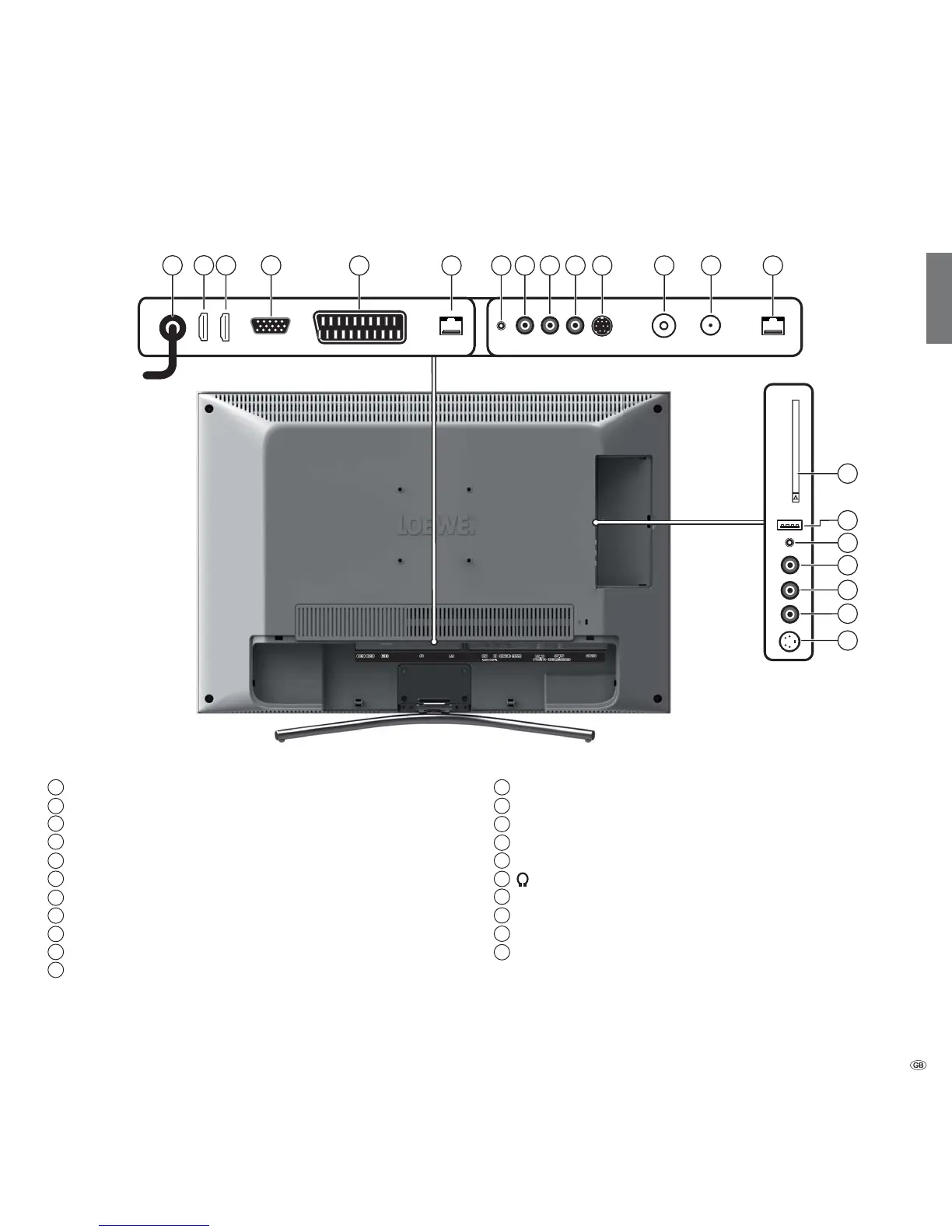

Connections rear side of the device
