Loewe Connect 26 LED User Manual

93 -
english

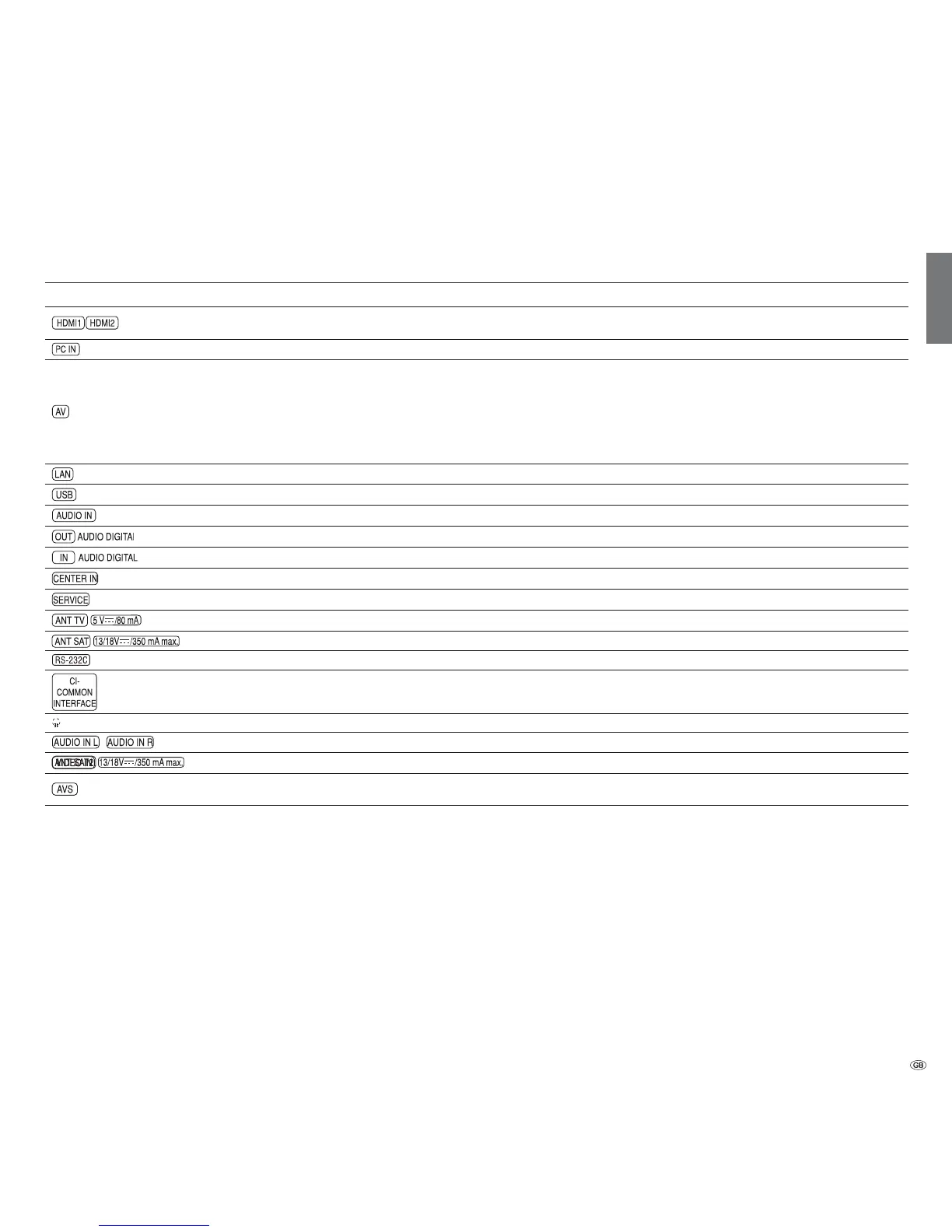

Connections (max. equipment)
Designation Type Function / Signal
HDMI (2x)
Digital Video/Audio IN
Type A 19pole Standard 1.3:
Digital video and audio
D-SUB 15-pole PC/STB video signal
EURO-AV
Video IN:
Video OUT:
Audio IN:
Audio OUT:
Y/C (S-VHS/Hi 8)
CVBS (VHS/8 mm)
RGB
CVBS (VHS/8 mm)
Y/C (S-VHS/Hi 8)
L/R
L/R
Ethernet (8P8C) LAN: Network interface
USB USB 2.0: Multimedia files/software update
Jack 3,5 mm Audio IN: L/R
Cinch (grey) Digital Audio OUT (SPDIF): Digital audio
Cinch (grey) Digital Audio IN (SPDIF): Digital audio
Cinch (grey) Audio IN: max. 2Vrms: Centre
Mini-DIN Service/L-Link
IEC socket 75 Ohm/5 V/80 mA: Antenna/cable/DVB-T/C
F socket
(1
75 Ohm 13/18 V/450 mA: ANT-SAT DVB-S/S2
RJ12
(1
Data I/O: serial interface
CI slot Common Interface: Slot for CA module
Jack 3,5 mm Headphones 32–2000 Ohm
Cinch (white/red) Audio IN: L (white) / R (red)
Cinch (yellow) Video IN: CVBS (VHS/8 mm)
Mini-DIN
Video IN: Y/C (S-VHS/Hi 8)
CVBS (VHS/8 mm)
Technical data
(1
Equipment and upgrade options, see page 97.

Loewe Connect 26 LED Specifications
