13Carbide Cutter OM
NOTE: The hydraulic hose quick couplers shown above
are not supplied with the carbide cutter.
Install the carbide cutter quick couplers to the loader.

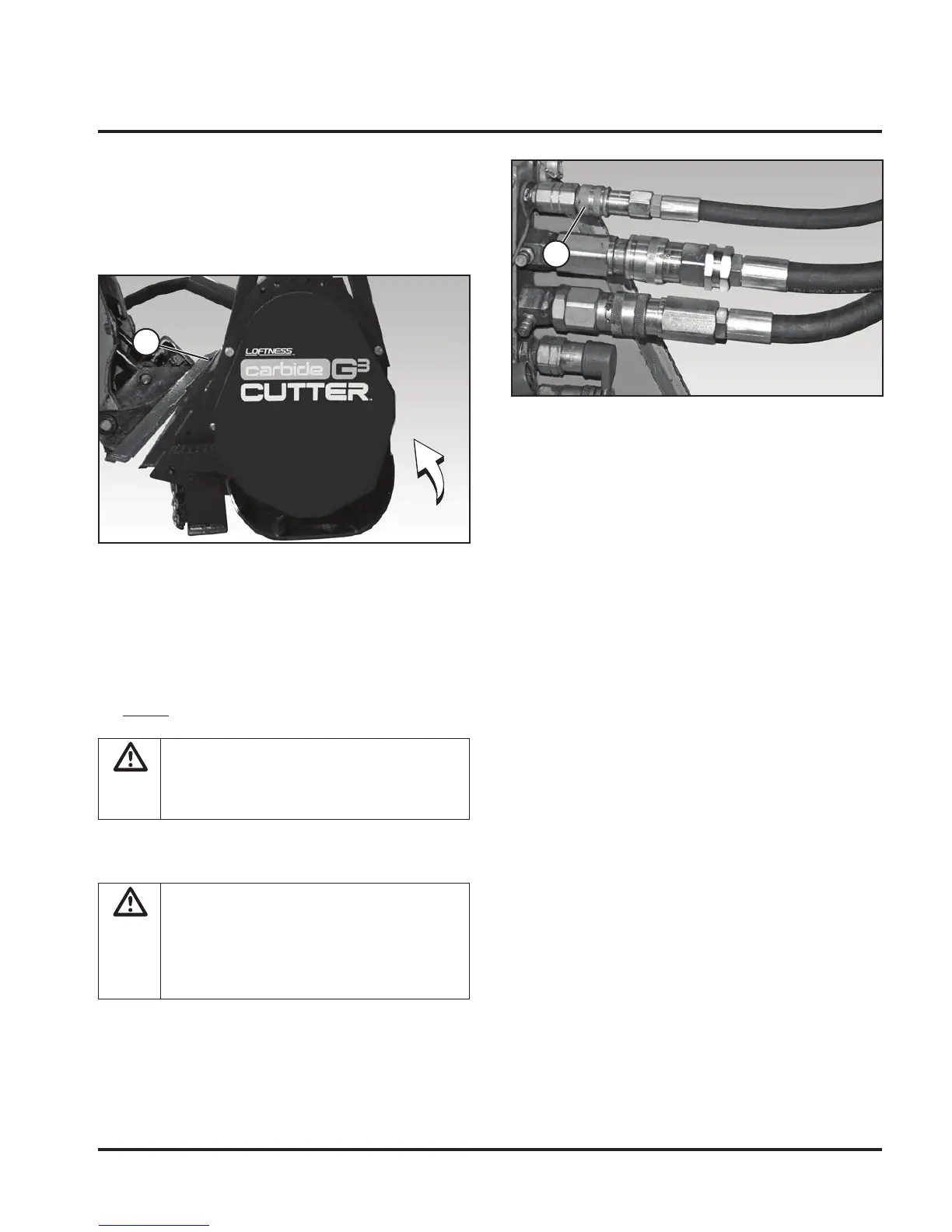

NOTE: The case drain quick coupler (1) of the carbide
cutter must be connected to the loader’s auxiliary
hydraulic system for proper operation of the
carbide cutter.
Set-up Instructions
Installing the Carbide Cutter to the
Loader
Fully raise the attachment-locking levers on the loader
mounting plate.
Tilt the loader mounting plate ahead. Drive forward with
the loader and hook the top edge of the loader mounting
plate under the top flange (1) on the carbide cutter
mounting plate. Be careful not to damage the locking
levers on the loader mounting plate.
Tilt the loader mounting plate back until the carbide cutter
mounting plate is firmly against the loader mounting plate,
but Do Not lift the attachment off the ground.
Fully lower the attachment-locking levers on the loader
mounting plate.
WARNING: Before you leave the operator’s
seat: Lower the lift arms, put the attachment
on the ground. Stop engine and remove
ignition key. Engage the parking brake.
WARNING: Locking-wedge pins must
extend through the holes in attachment-
mounting plate. Levers must be fully down
in the locked over-center position. Failure to
secure wedge pins can allow attachment to
come off, causing serious injury or death.
1
1
