22 Carbide Cutter OM
Maintenance

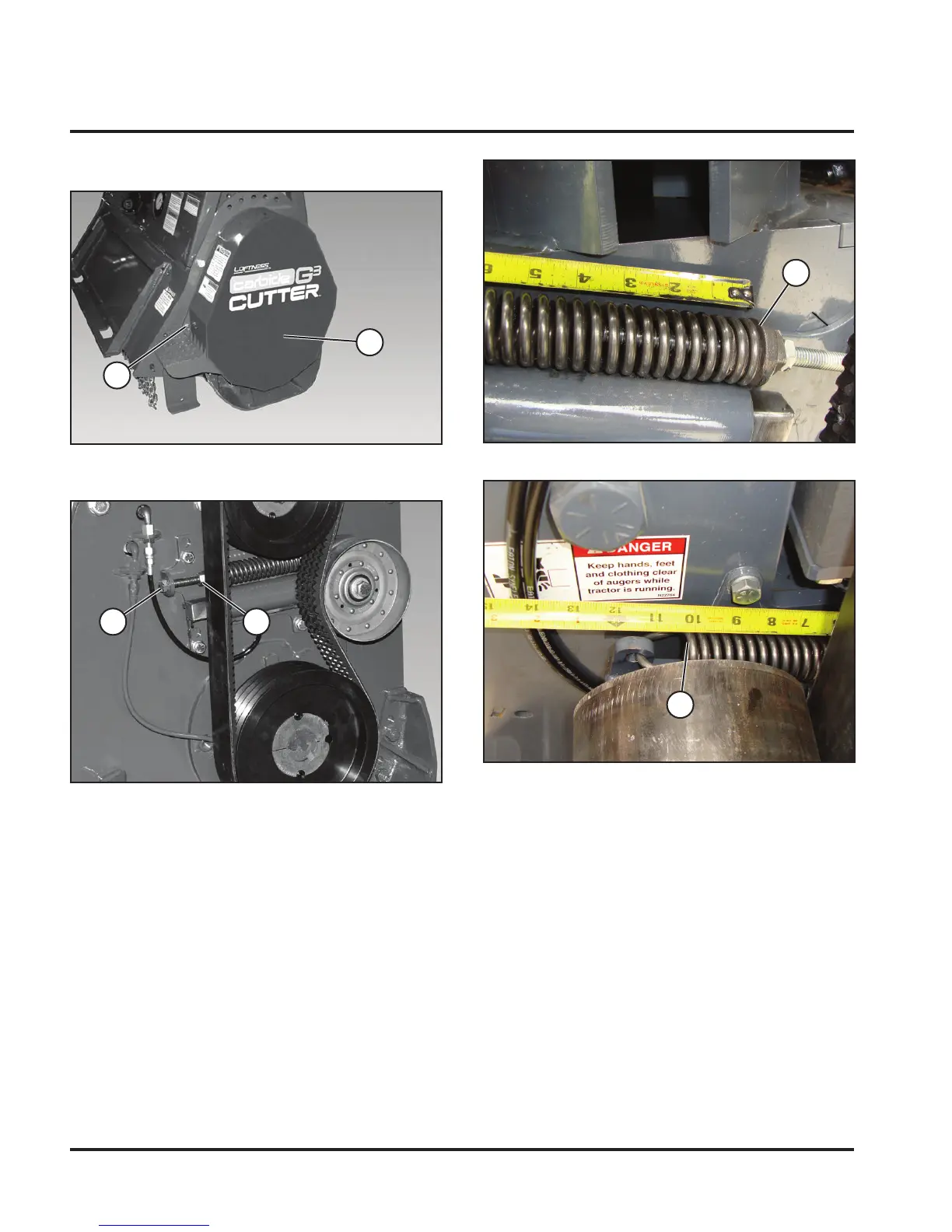

Belt Adjustment
Remove the six bolts (1) and drive belt cover (2).
Loosen jam nut (3).
Turn adjustment bolt (4) clockwise to increase spring
tension.
Turn adjustment bolt (4) counterclockwise to decrease
spring tension when replacing drive belt.
Remove the belt while belt tension is released.
NOTE: When replacing or installing a new belt, align
the grooves in the belt with the upper and lower
pulleys.
Turn the adjustment bolt clockwise until the distance from
the collar (5) to the end of the spring (6) is approximately
10 - 1/4". Tighten jam nut (5).
2
3
1
4
5
6
